Features
PRECISESELECT®

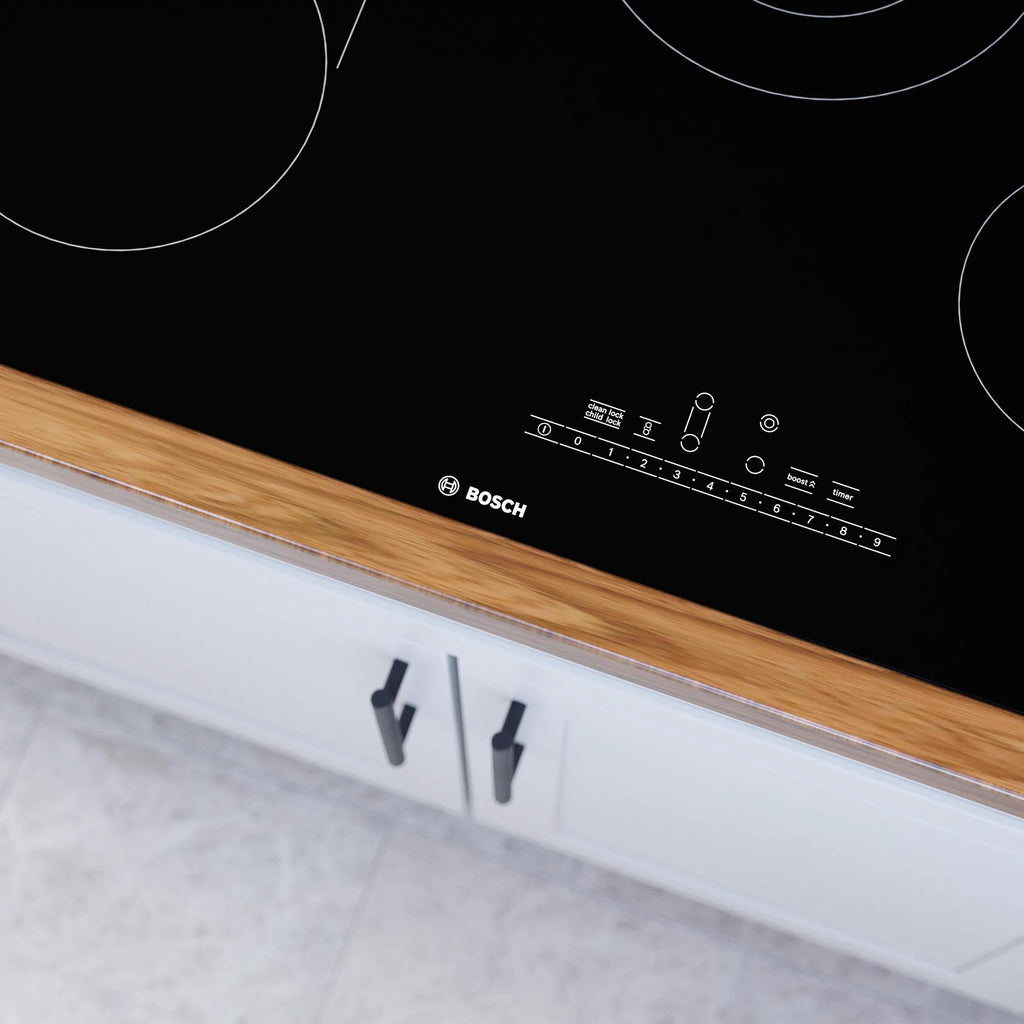

Juggling multiple pots and pans on different power levels can be confusing and frustrating. With PreciseSelect®, an intuitively designed control panel allows you to select the cooking zones and set the specific power level you want – quickly and easily.
SPEEDBOOST®
Sometimes you don't want to wait for a pot of water to boil. The SpeedBoost® function on Bosch induction cooktops adds even more power to speed up the cooking process.
Specifications
General
Series Name
800 Series
Color
Black
Manufacturer Color
Black
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Front Left heating element: 1,800 W
• Back Left heating element: 1,800 W
• Back Right heating element: 3,600 / 1,400 W
• Front Right heating element: 1,200 W
• Back Left heating element: 1,800 W
• Back Right heating element: 3,600 / 1,400 W
• Front Right heating element: 1,200 W
Burner/Element Size
• Front Left heating element: 7"
• Back Left heating element: 7"
• Back Right heating element:9"/6"
• Front Right heating element: 6"
• Back Left heating element: 7"
• Back Right heating element:9"/6"
• Front Right heating element: 6"
Elements
Smoothtop
Surface Features
Black-glass Seemless Design
Features
Technologies
• SpeedBoost®
• PreciseSelect®
• PreciseSelect®
Control Lock
Yes
Digital Display
Yes
Additional Information
• Cooktop Design Coordinates with Bosch Ovens and Ventilation
• Dual Element Offers the Capability to use Multiple Pan Sizes
• Bridge Element Accomodates Oblong Pans and Multiple Diameter Sized Cookware
• Use the Kitchen Timer to Measure Cooking Time or as a Reminder
• Clean Lock - Prevents Unwanted Changing of Settings while Cleaning Spill-Overs
• 2-Level Heat Indicator - Warns if Cooktop is Warm or Hot
• Highlights: 17 power levels
• Dual Element Offers the Capability to use Multiple Pan Sizes
• Bridge Element Accomodates Oblong Pans and Multiple Diameter Sized Cookware
• Use the Kitchen Timer to Measure Cooking Time or as a Reminder
• Clean Lock - Prevents Unwanted Changing of Settings while Cleaning Spill-Overs
• 2-Level Heat Indicator - Warns if Cooktop is Warm or Hot
• Highlights: 17 power levels
Electrical Information
Information
• 40 A
• 60 Hz
• 240/208 V
• 60 Hz
• 240/208 V
Certifications and Approvals
ADA Compliant
Yes
Information
Dekra Mark C+US
Accessories
Optional
• HEZ390090
• HEZ390210 : System pan diameter 15 cm
• HEZ390220 : System pan diameter 19 cm
• HEZ390230 : System pan diameter 21 cm
• HEZ390210 : System pan diameter 15 cm
• HEZ390220 : System pan diameter 19 cm
• HEZ390230 : System pan diameter 21 cm
Dimensions
Class Width
30"
Width
31.02 inch(es) / 78.8 cm
Height
3.94 inch(es) / 10.0 cm
Depth
21.26 inch(es) / 54.0 cm
Weight
27.01 lb(s) / 12.25 kg
Additional Dimensions
• Minimum distance from counter front: 2 1/4"
• Minimum distance from rear wall: 2"
• Required cutout size (HxWxD): 4" x 28 3/4" x 19 7/8"
• Minimum distance from rear wall: 2"
• Required cutout size (HxWxD): 4" x 28 3/4" x 19 7/8"
Shipping Dimensions
Width
37.4 inch(es) / 95 cm
Height
8.27 inch(es) / 21.01 cm
Depth
24.21 inch(es) / 61.49 cm
Weight
34 lb(s) / 15.42 kg
UPC
UPC#
825225960188
