Features

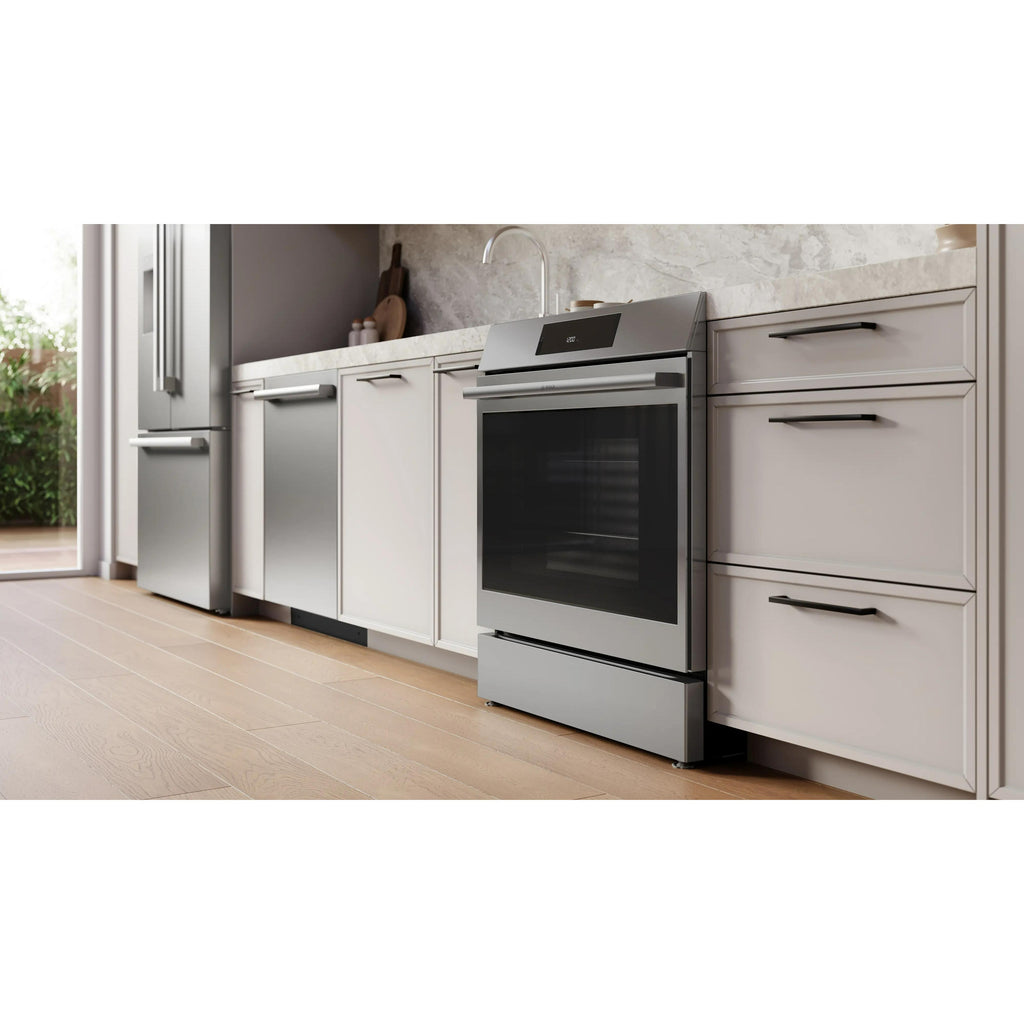

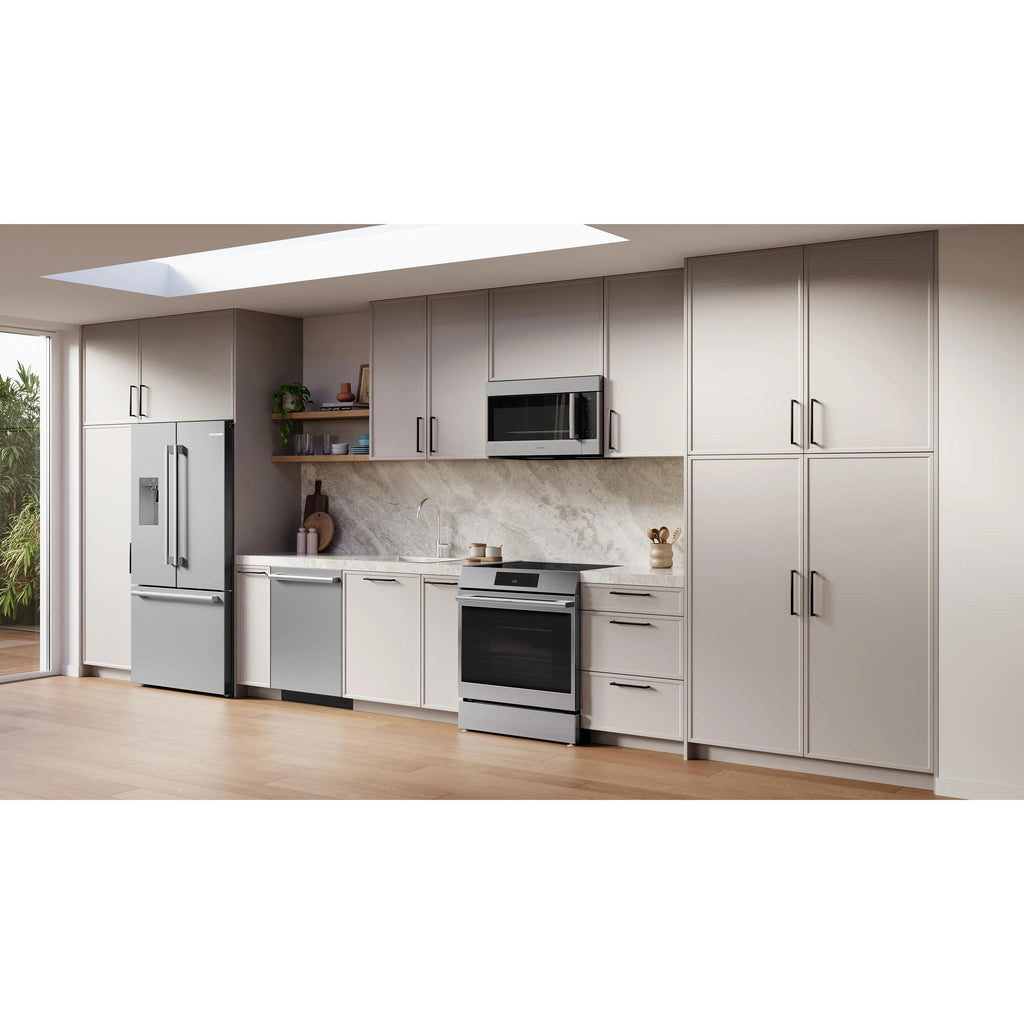

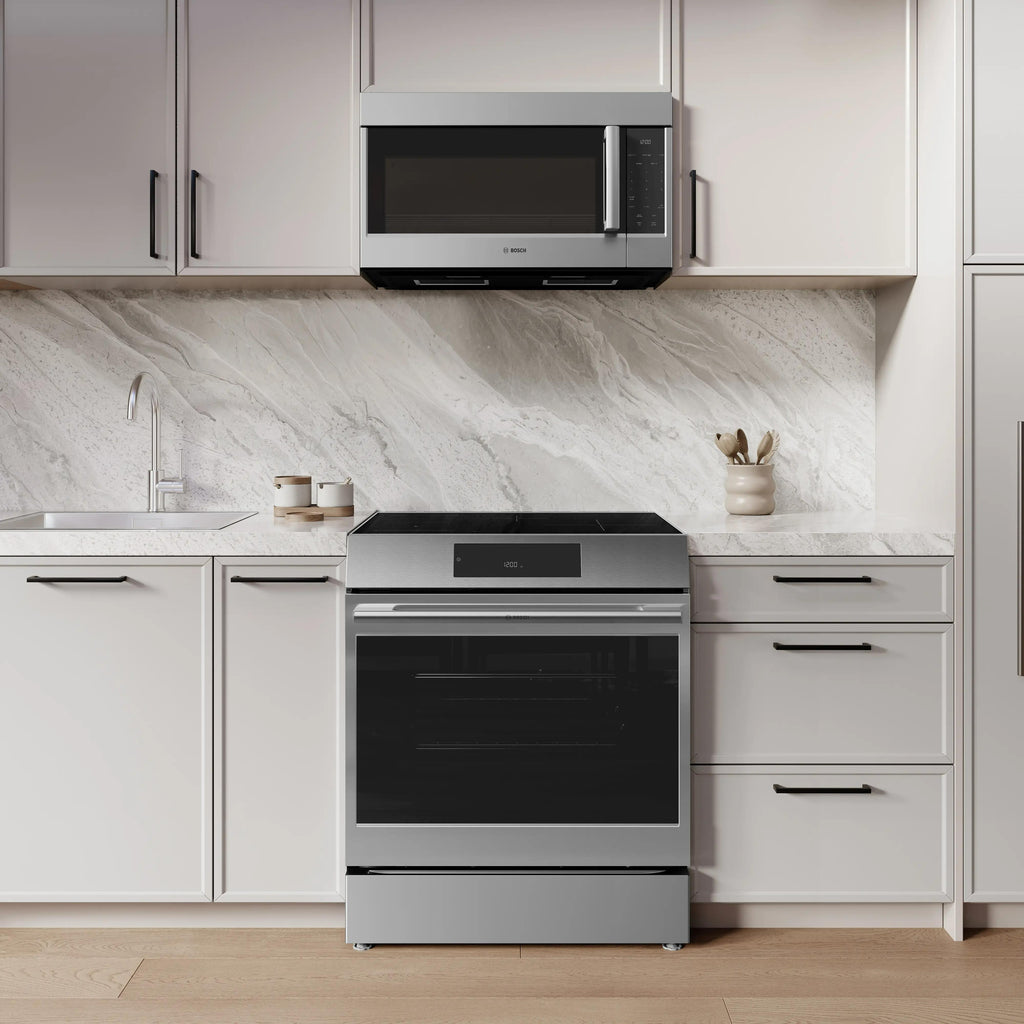

EASY INSTALLATION - SLIDE-IN
The slide-in design can replace a freestanding range cutout and slides back against the wall for a sleek built-in look.
SELF-CLEANING FUNCTION
With the Self-Clean cycle, you no longer need to worry about clean-up. For busier days, 2 and 3 hour cycles are available for a quick clean. For a deeper clean, a 4 hour cycle is also available.
Additional Features

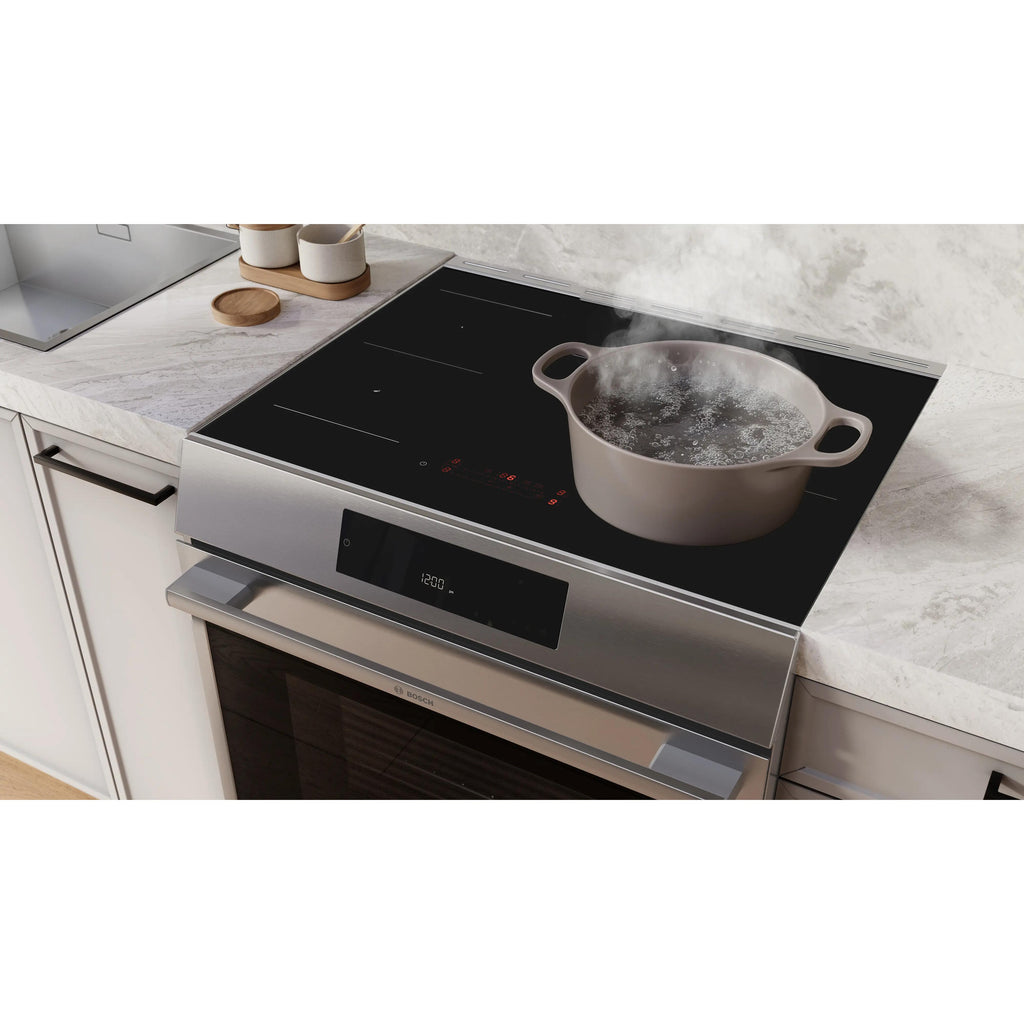

INDUCTION TECHNOLOGY
Induction technology is faster and safer. Magnetic waves induce heat directly in the pan for quick boiling and intense sears, leaving less heat on the surface.

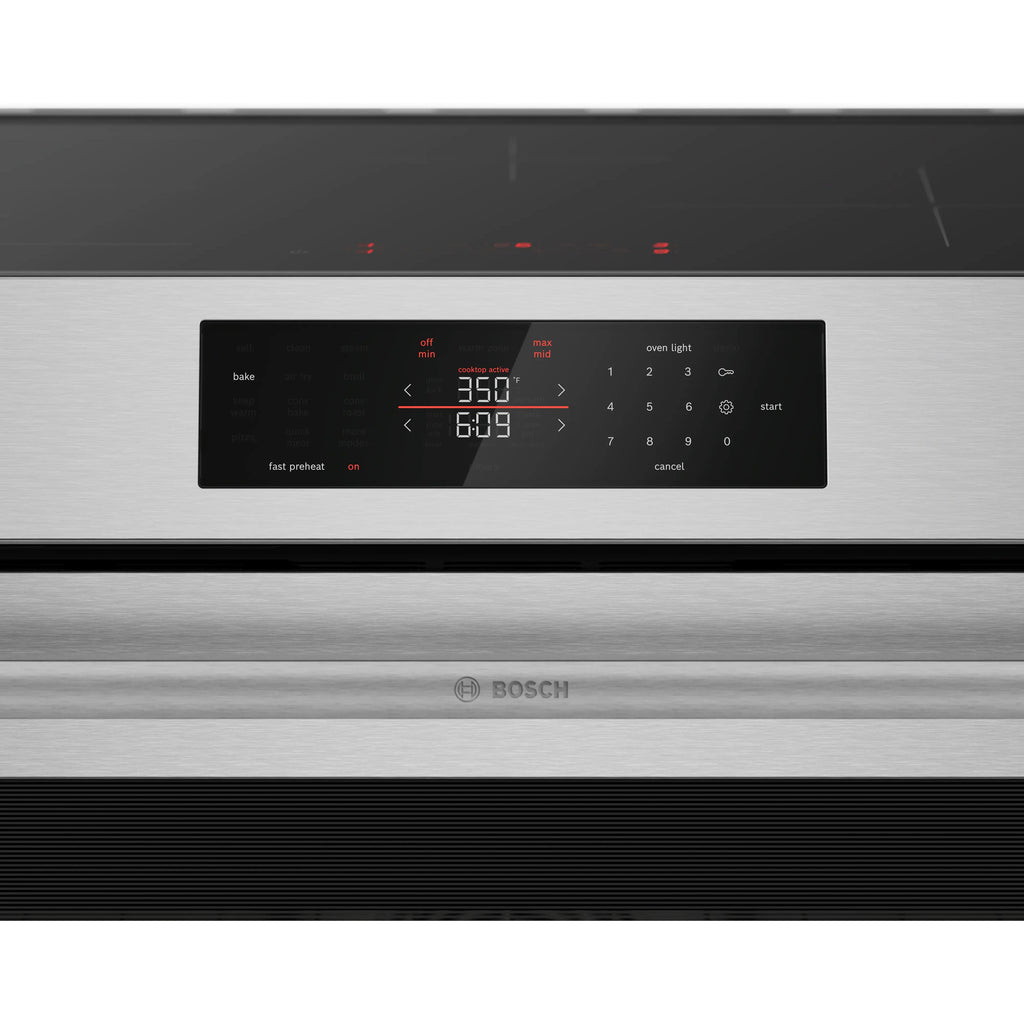

SLEEK BACKLIT USER INTERFACE
Sleek backlit user interface wakes up when prompted.

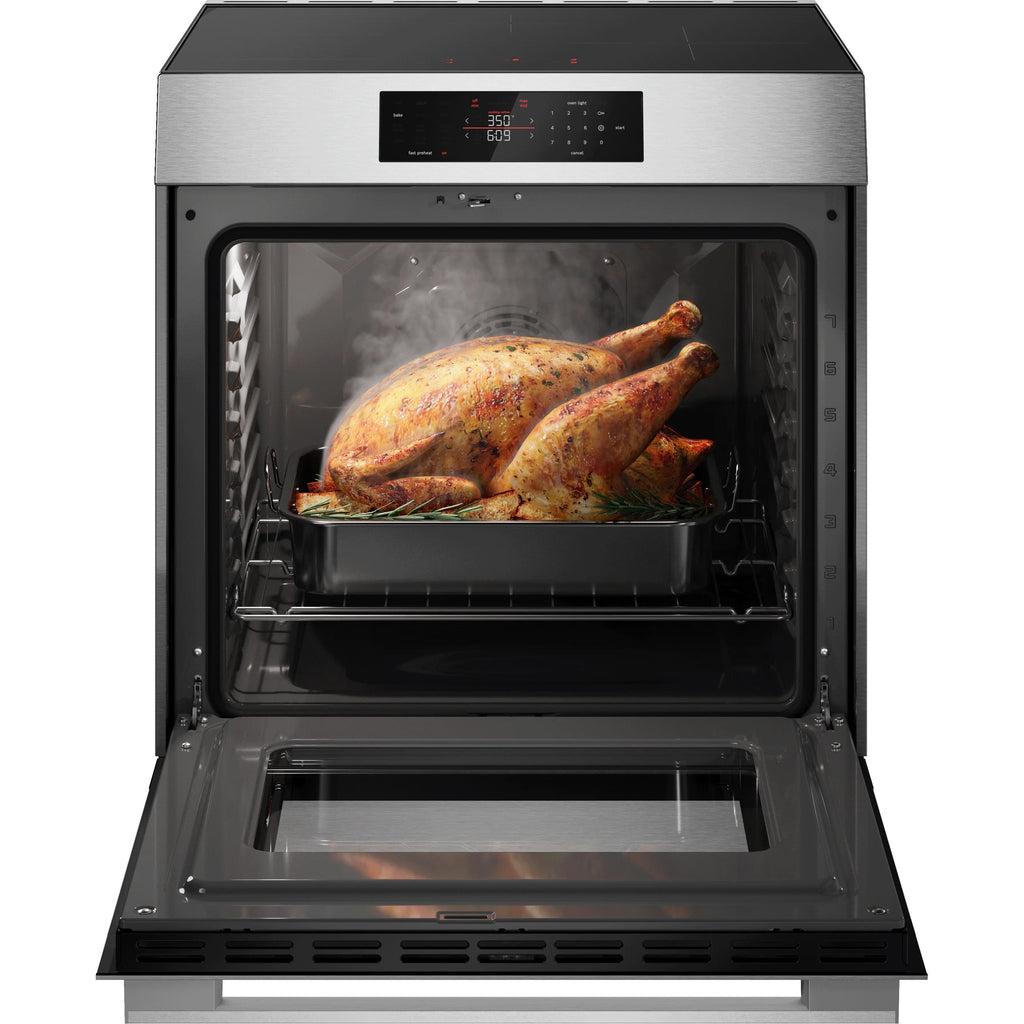

ALL-IN-ONE OVEN
The All-in-One Oven combines all of your favorite appliances into one. It includes modes such as Quick Meal for convenience foods, or Air Fry to deliver crispy results with little to no preheat required.
Specifications
General
Series Name
500 Series
Fuel Type
Electric - Induction
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean (2h, 3h, 5h) & Steam-Assist Clean

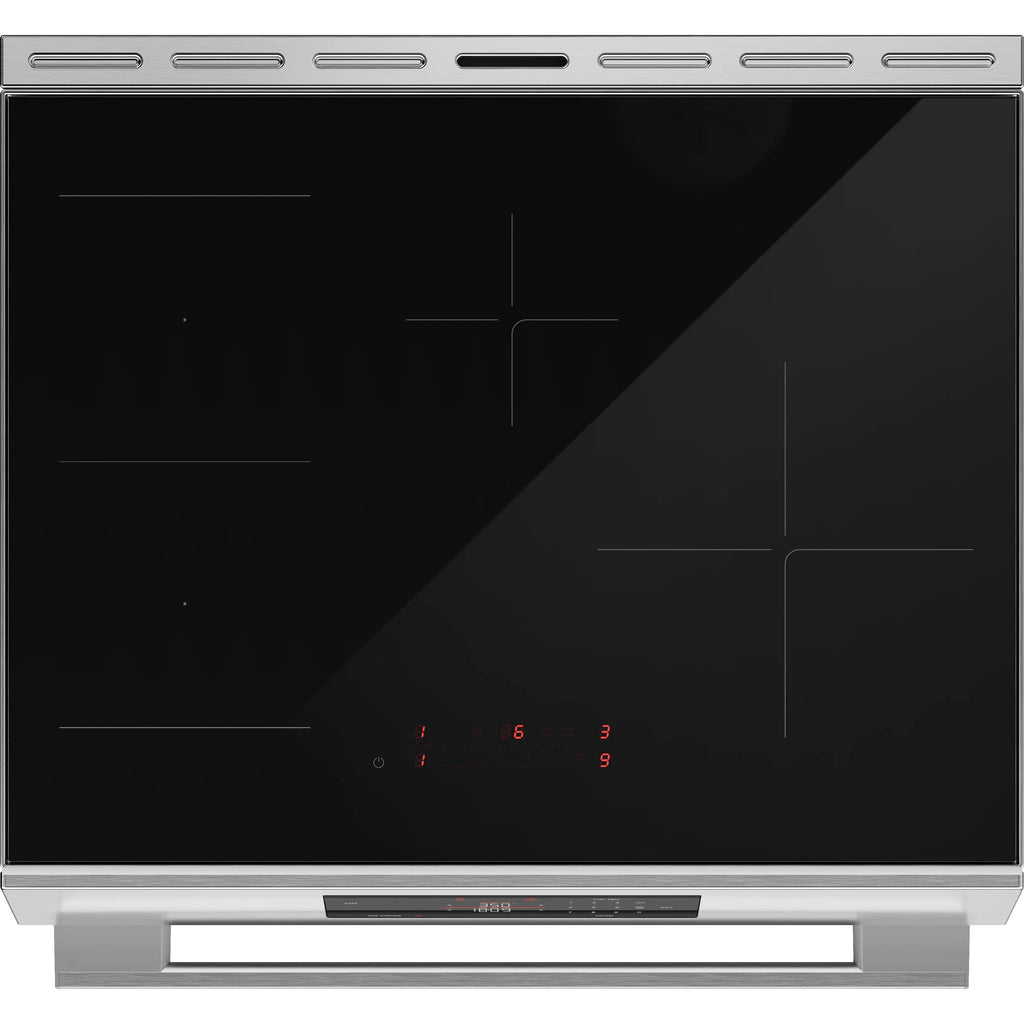

Cooktop
Burners/Elements
4
Burners/Elements Output
• Front Left Element: 2,000 W (3,000 W with Boost)
• Back Left Element: 2,000 W (3,000 W with Boost)
• Back Right Element: 1,200 W (1,800 W with Boost)
• Front Right Element: 2,100 W (3,500 W with Boost)
• Back Left Element: 2,000 W (3,000 W with Boost)
• Back Right Element: 1,200 W (1,800 W with Boost)
• Front Right Element: 2,100 W (3,500 W with Boost)
Burner/Element Size
• Front Left Heating Element: 7"
• Back Left Heating Element: 7"
• Back Right Heating Element: 6"
• Front Right Heating Element: 10"
• Back Left Heating Element: 7"
• Back Right Heating Element: 6"
• Front Right Heating Element: 10"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.8
Number of Ovens
Single
Programs
Air Fry; Bake; Broil; Roast; Convection Bake; Convection Roast; Pizza; Proof; Quick Meal; Keep Warm; Dehydrate
Features
Air Fry
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Cooktop Surface: Ceramic Glass
• Interior Light
• Kitchen Timer
• Convection Element: 1,500 W
• Bake / Broil Element: 3,000 W / 3,400 W
• Interior Light
• Kitchen Timer
• Convection Element: 1,500 W
• Bake / Broil Element: 3,000 W / 3,400 W

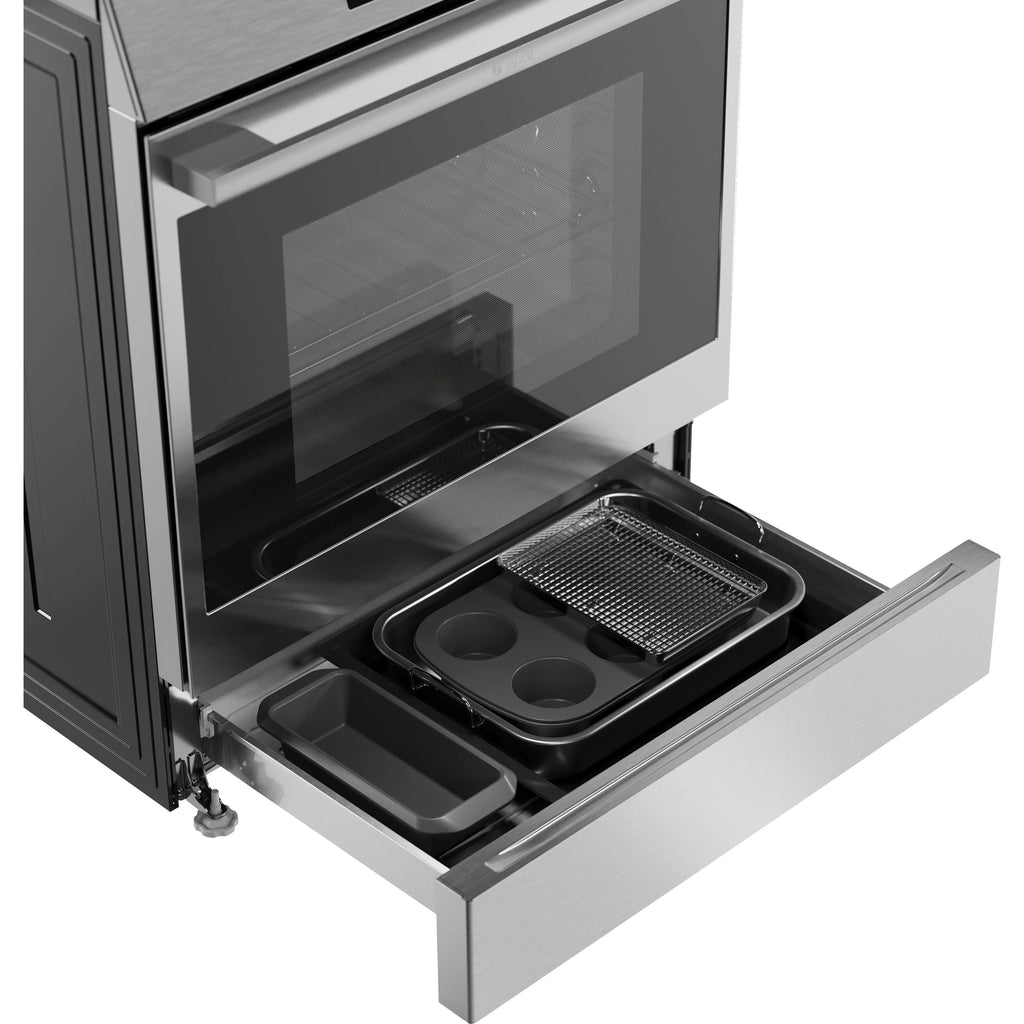

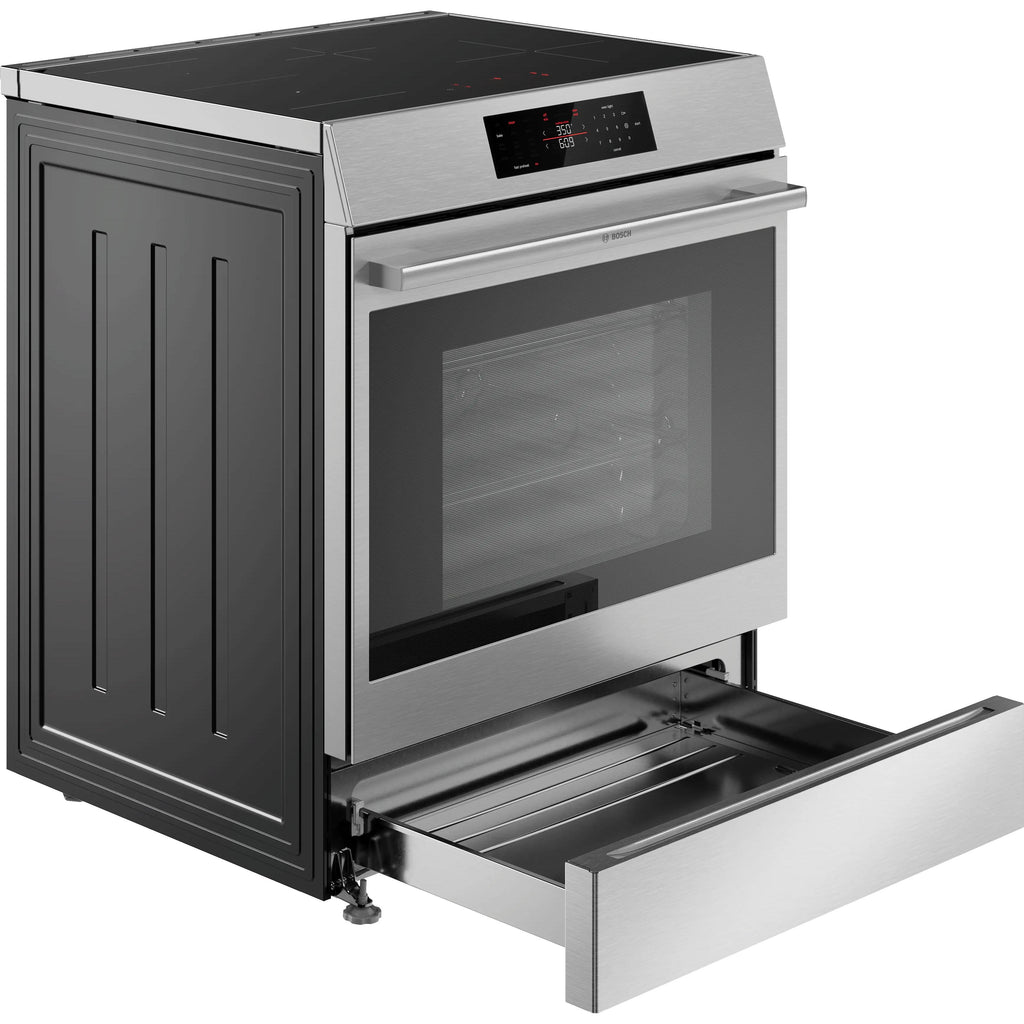

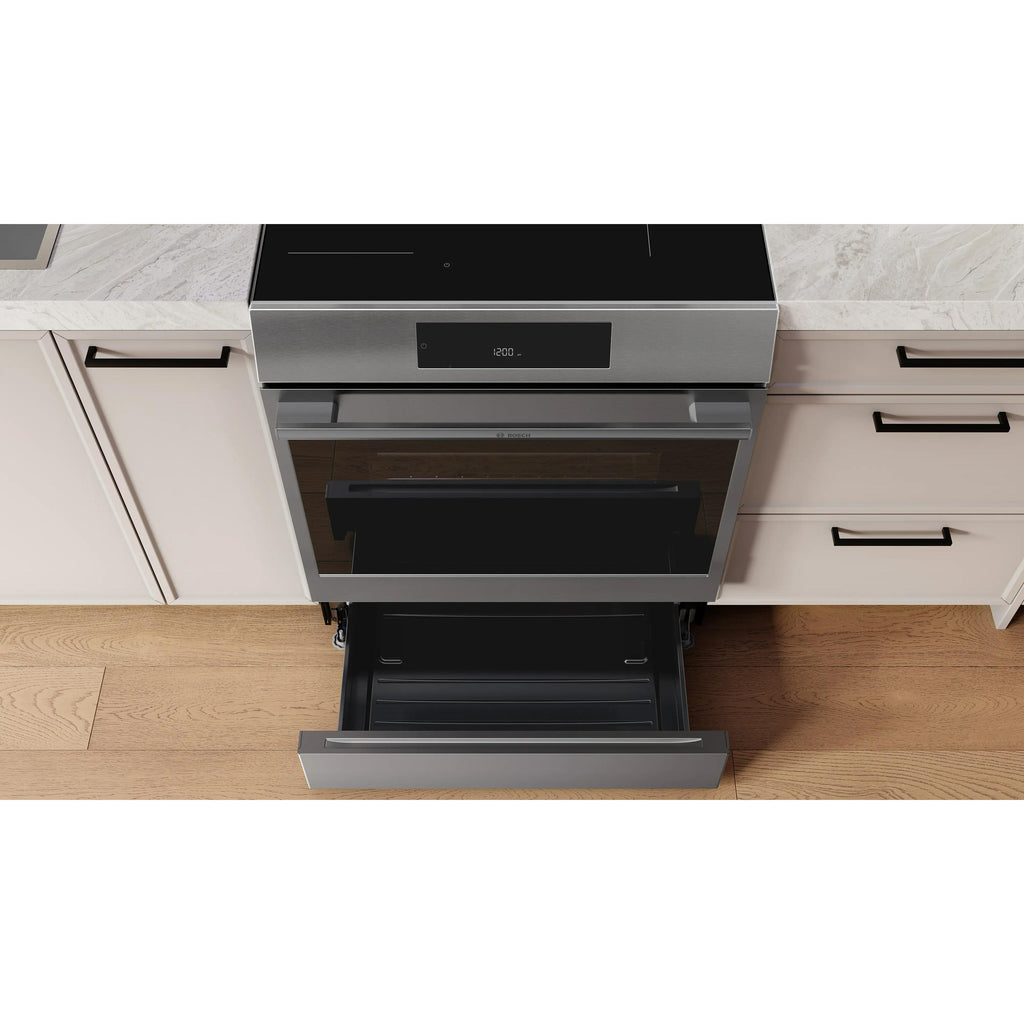

Drawer Features
Storage
Yes
Electrical Information
Information
• Total Power: 10,100 / 12,100 W
• Voltage: 208 V / 240 V
• Frequency: 60 Hz
• Circuit Breaker: 40 A
• Plug Type: 4 Prong
• Voltage: 208 V / 240 V
• Frequency: 60 Hz
• Circuit Breaker: 40 A
• Plug Type: 4 Prong
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Information
UL listed
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
26.5 inch(es) / 67.31 cm
Weight
152.3 lb(s) / 69.08 kg
Additional Dimensions
• Adjustable Height: 3/4 in
• Cutout Size (HxWxD): 36" x 30" x 25"
• Oven Interior (HxWxD): 24 3/16" x 21 1/8" x 19 13/16"
• Usable Interior (HxWxD): 23 5/8" x 20 3/16" x 18 3/8"
• Cutout Size (HxWxD): 36" x 30" x 25"
• Oven Interior (HxWxD): 24 3/16" x 21 1/8" x 19 13/16"
• Usable Interior (HxWxD): 23 5/8" x 20 3/16" x 18 3/8"
Warranty
Warranty
1-Year parts and labor
