Specifications
General
Series Name
500 Series
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Front Left: 1200 W
• Back Left: 2000 W
• Back Right: 1200 W
• Front Right: 2200 W
• Back Left: 2000 W
• Back Right: 1200 W
• Front Right: 2200 W
Burner/Element Size
• Front Left: 6"
• Back Left: 7"
• Back Right: 6"
• Front Right: 8"
• Back Left: 7"
• Back Right: 6"
• Front Right: 8"
Elements
Smoothtop
Features
Control Lock
Yes
Additional Information

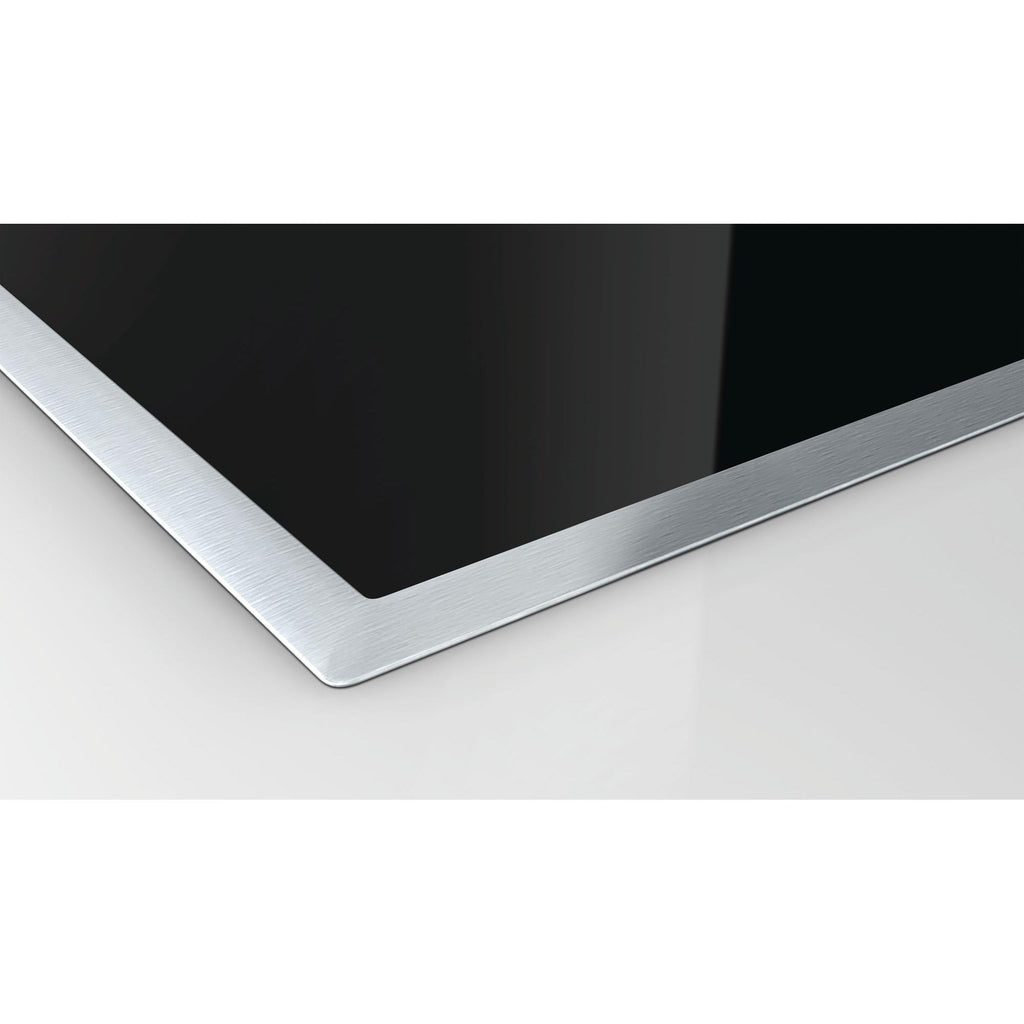

• High-End Stainless Steel Frame for a Premium Look
• Infinite Temperature Controls for Precision Cooking
• Powerful 2,200 W Element for Faster Boil Times
• 2-Level Heat Indicator that Warns if Cooktop is Warm or Hot
• Childlock that Prevents the Cooktop from Being Accidentially Switched on and that Locks the Temperature Settings if in Use
• Approval Certificates: CUL
• Infinite Temperature Controls for Precision Cooking
• Powerful 2,200 W Element for Faster Boil Times
• 2-Level Heat Indicator that Warns if Cooktop is Warm or Hot
• Childlock that Prevents the Cooktop from Being Accidentially Switched on and that Locks the Temperature Settings if in Use
• Approval Certificates: CUL
Electrical Information
Information
240 V / 208 V
Dimensions
Class Width
24"
Width
22.95 inch(es) / 58.3 cm
Height
4.33 inch(es) / 11.0 cm
Depth
20.2 inch(es) / 51.3 cm
Weight
20 lb(s) / 9.07 kg
Additional Dimensions
Required Cutout Size (HxWxD): 4 1/3" x 22" x 19 1/4"
Shipping Dimensions
Weight
25.99 lb(s) / 11.79 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
825225907237
