Features
LUMINOUS LED LIGHTS
Shine bright with uniform LED lighting throughout this well lit dishwasher for simplified loading and unloading.
39 DBA DISHWASHER
Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 39 dBA dishwasher.

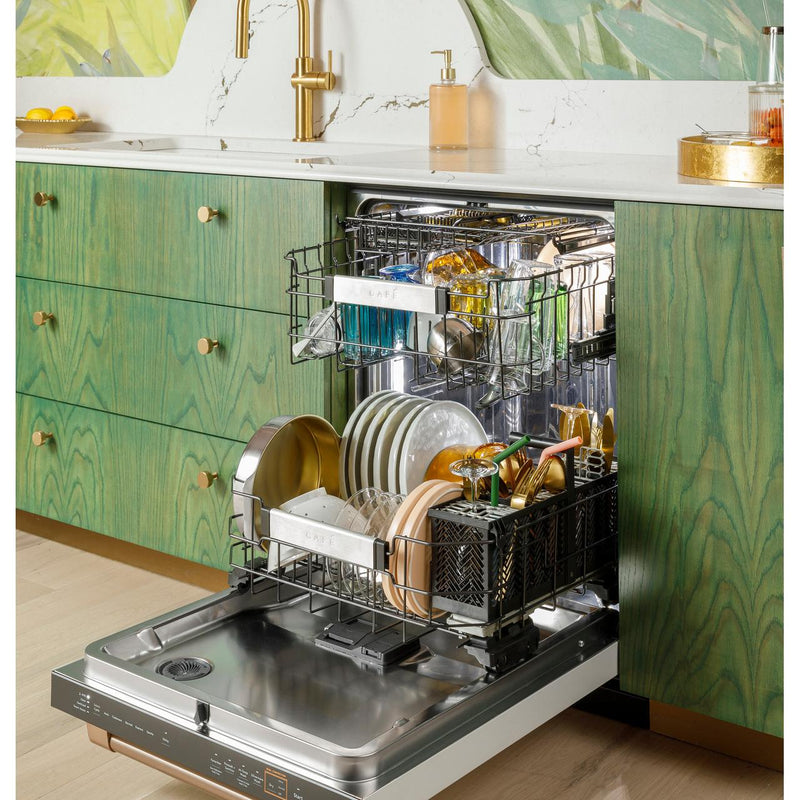

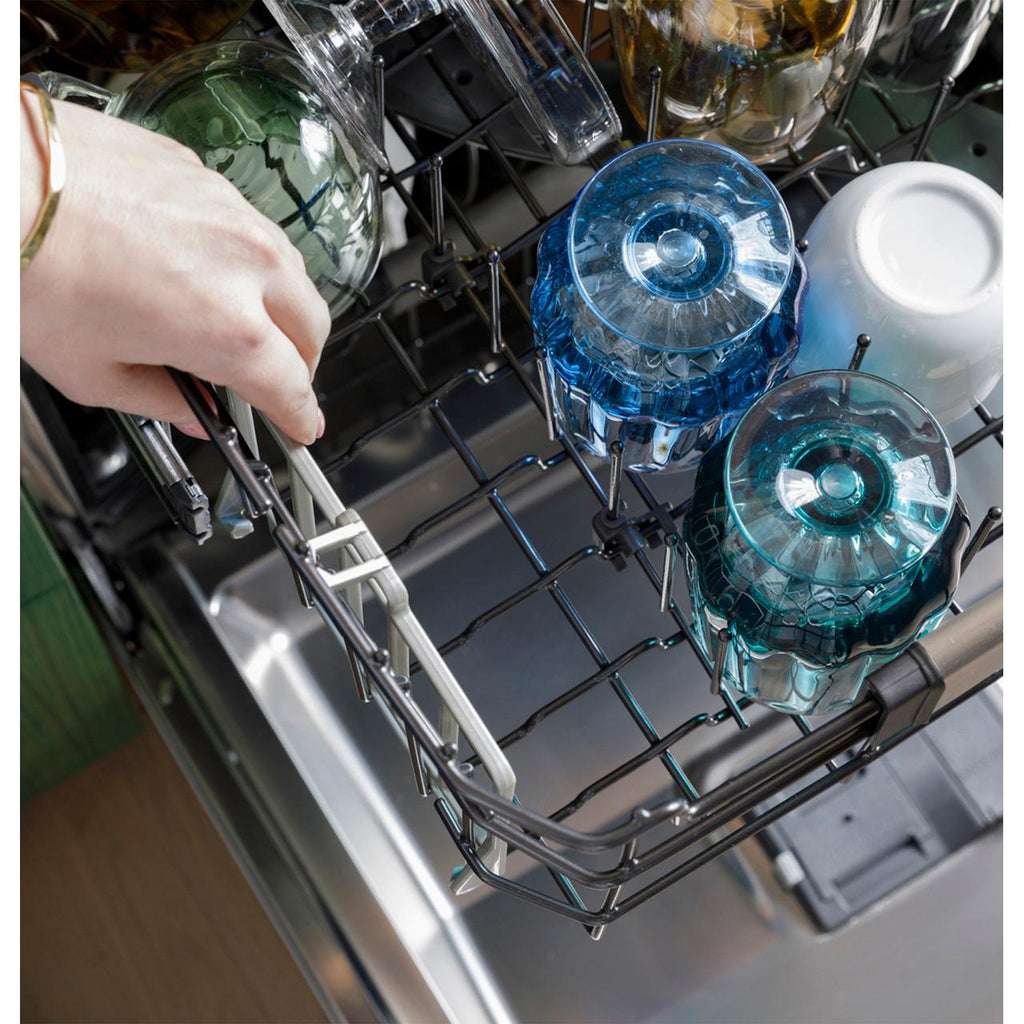

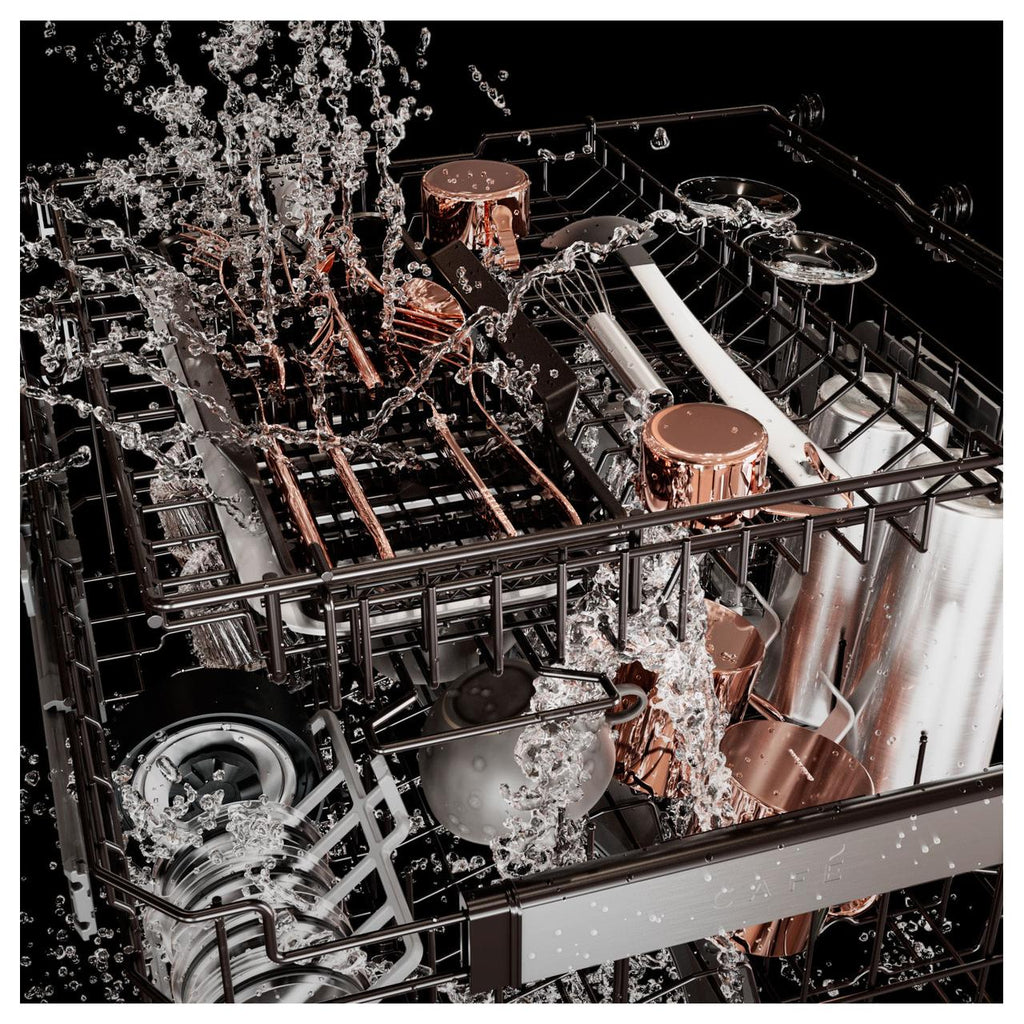

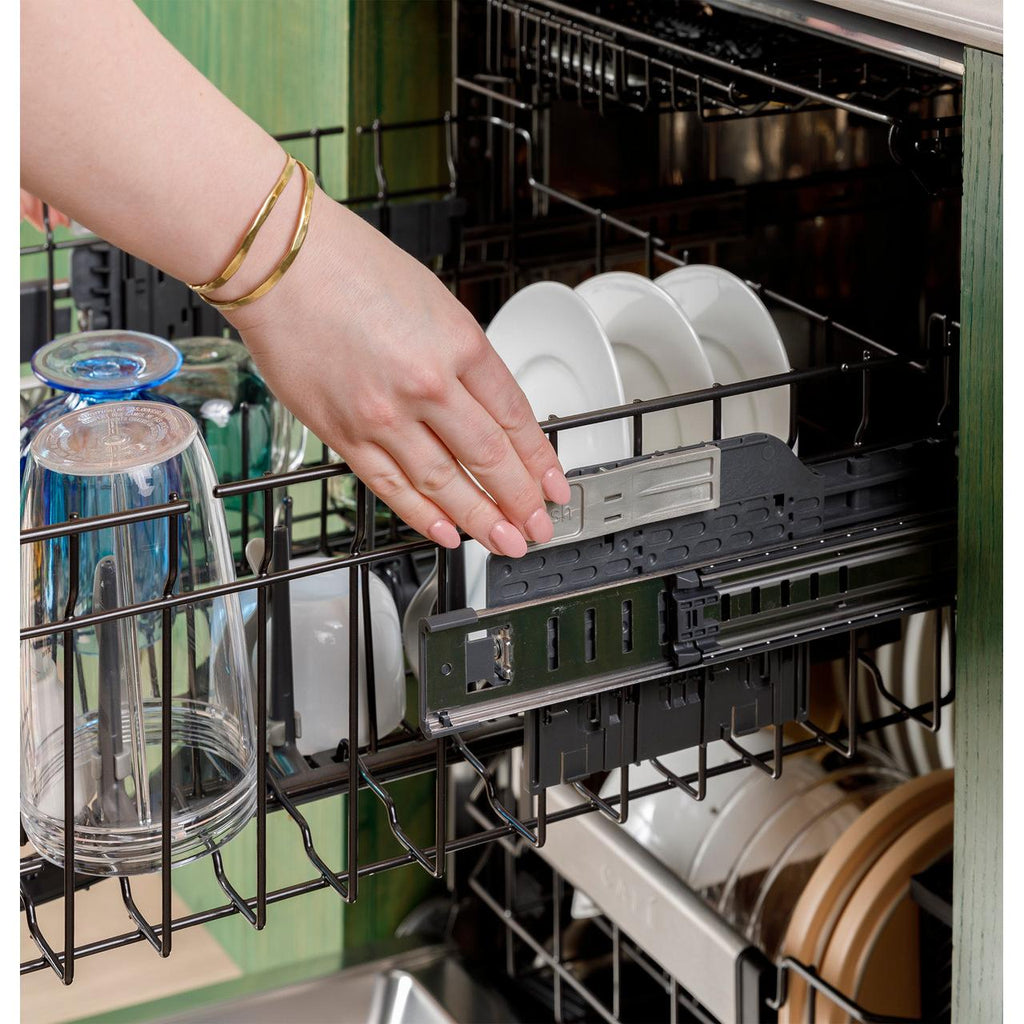

CUSTOMFIT TOP RACK WITH ULTRA WASH.
Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

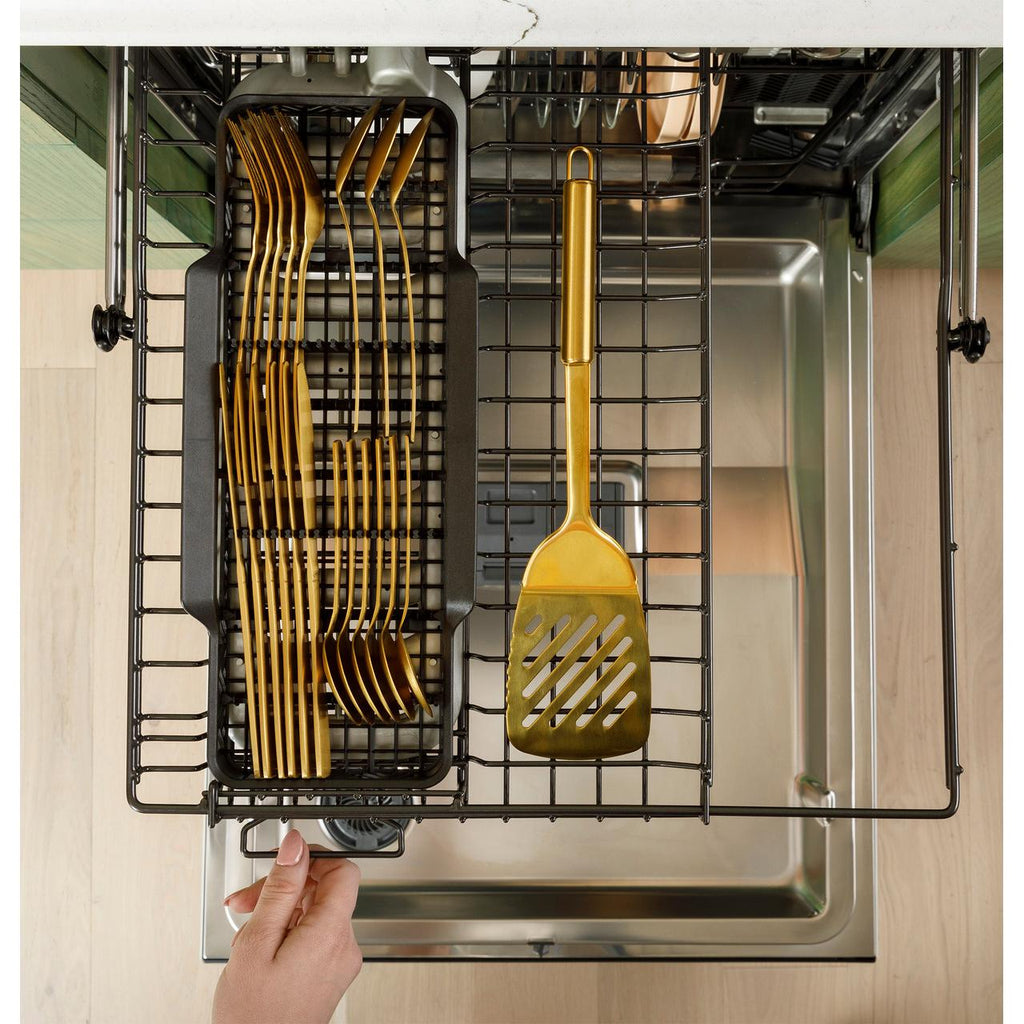

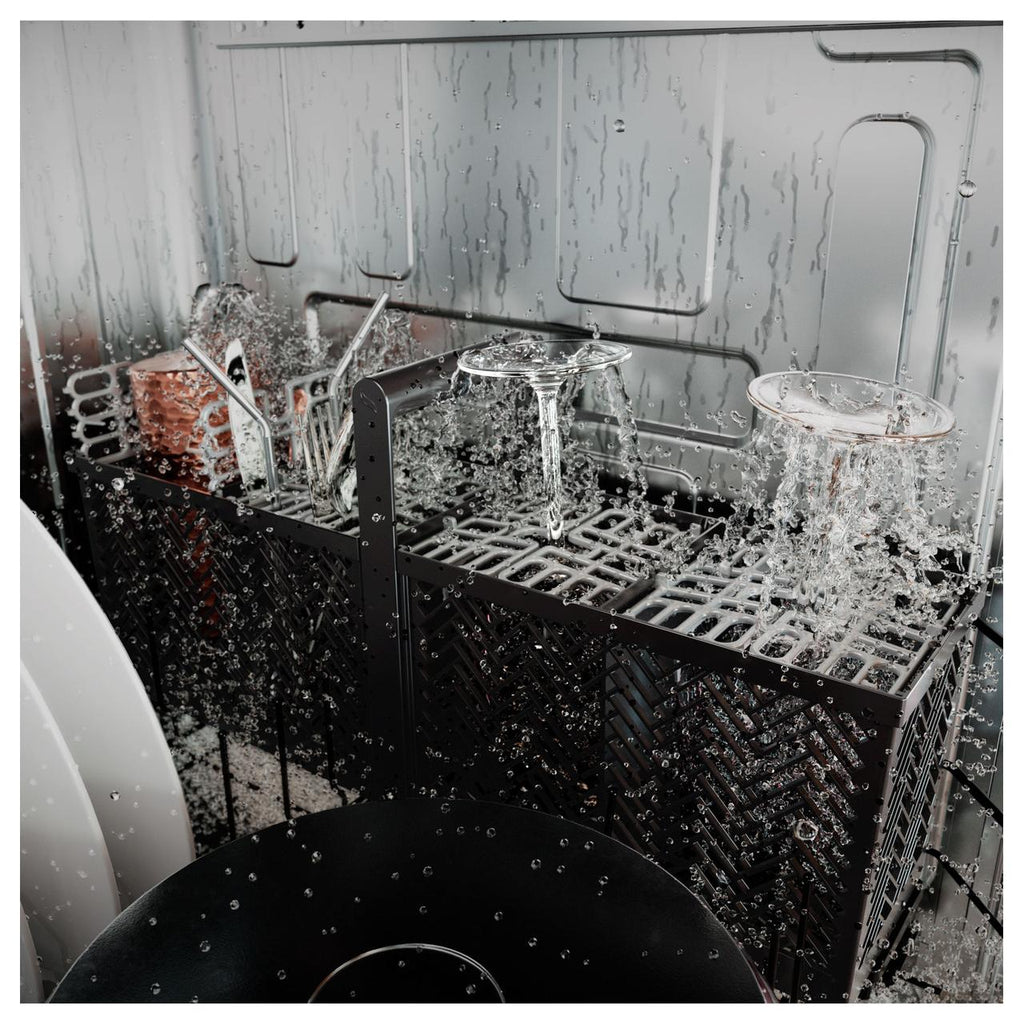

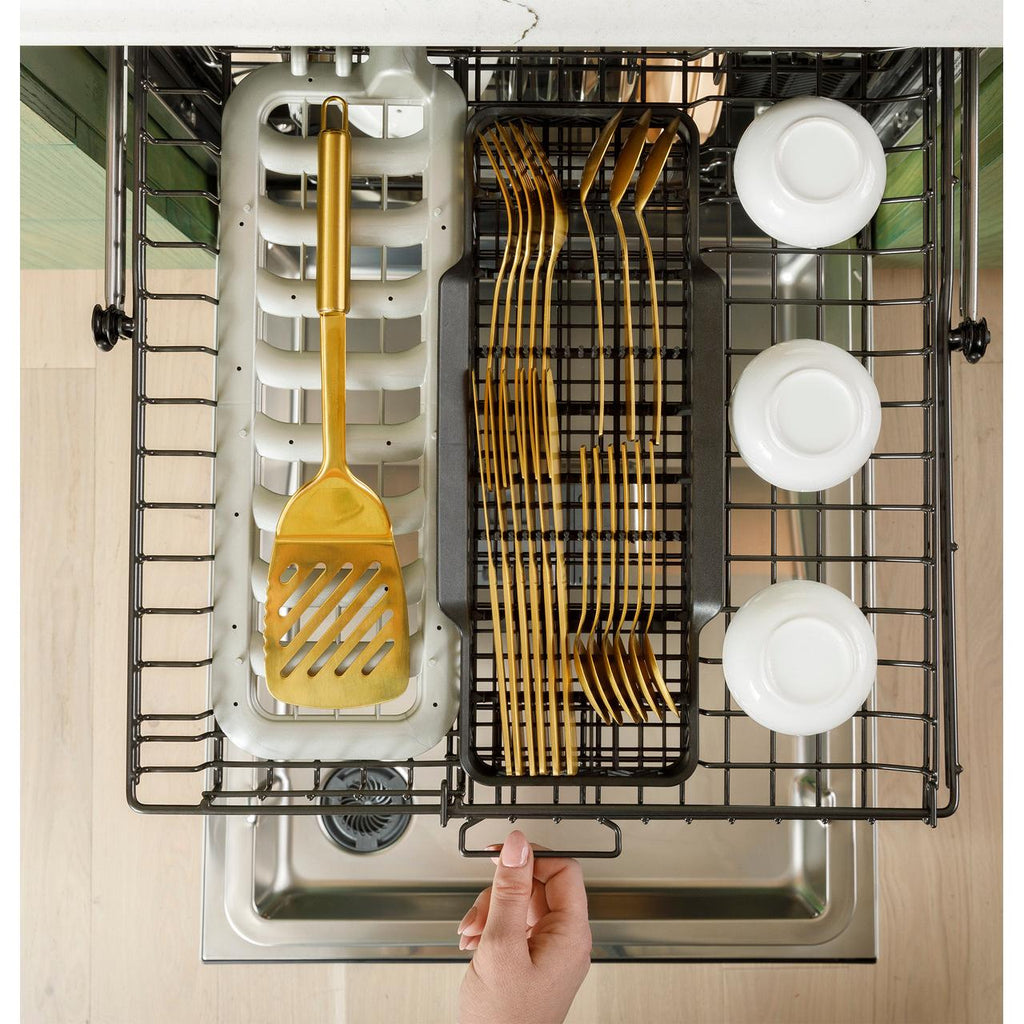

CUSTOMFIT BASKET WITH ULTRA WASH
Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

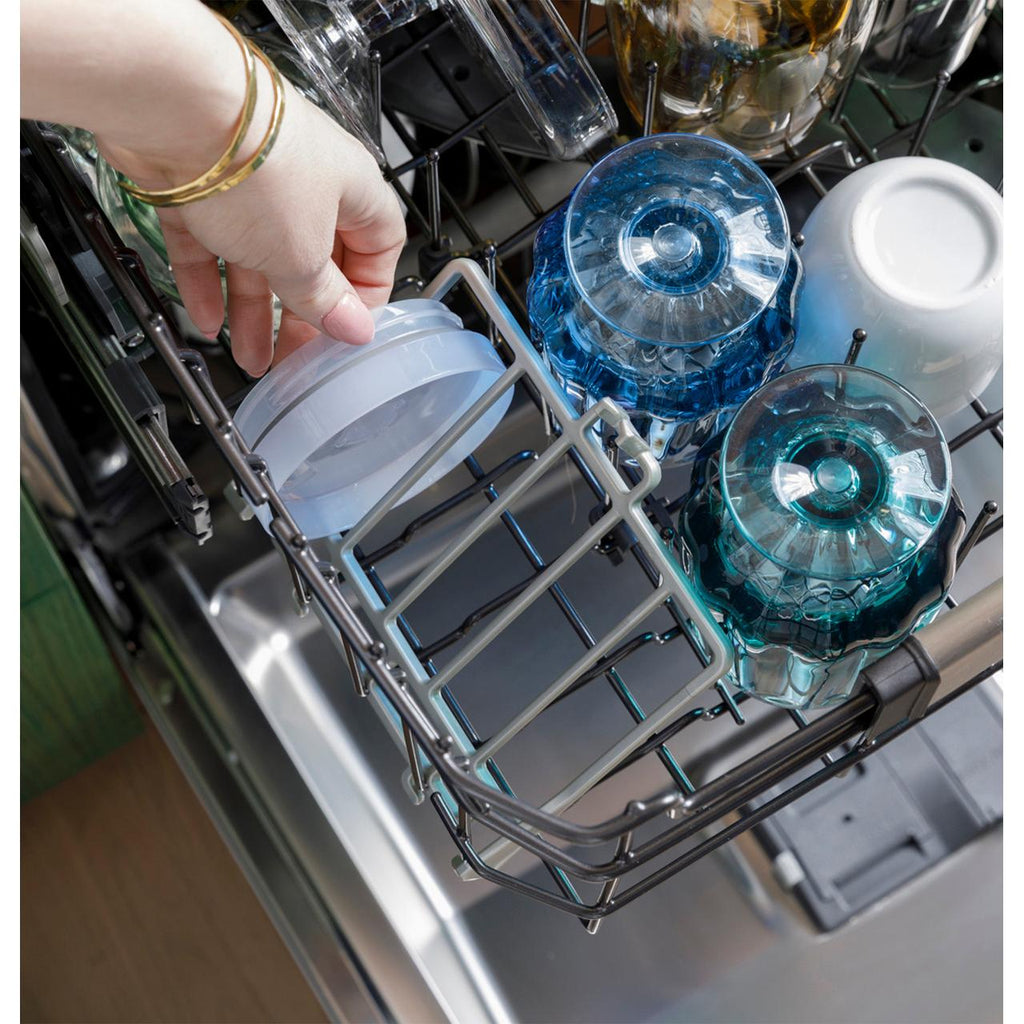

CUSTOMFIT LID CADDY
Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.
SMART FEATURES POWERED BY SMARTHQ™
Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.
Specifications
General
Series Name
800 Series
Type
Built-In
Color
Platinum Glass
Manufacturer Color
Platinum Glass
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
39 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Auto Wash
• Cookware
• Normal
• Gentle
• Express
• Cascade Platinum Plus (on app)
• Cookware
• Normal
• Gentle
• Express
• Cascade Platinum Plus (on app)
Options
• Delay Start 1-12 Hr.
• Bottle Wash (on app)
• Wash Zones/Half Load (on app)
• Favorites (on app)
• Sabbath Mode
• WiFi/Remote Enabled
• Start/Cancel
• Favorites
• Presoak + Sanitize (Certified to NSF Standard 184)
• Hi-Temp Wash
• Silverware Wash
• Heated Dry Off
• Normal Dry
• Ultra Dry
• Lock Controls
• Bottle Wash (on app)
• Wash Zones/Half Load (on app)
• Favorites (on app)
• Sabbath Mode
• WiFi/Remote Enabled
• Start/Cancel
• Favorites
• Presoak + Sanitize (Certified to NSF Standard 184)
• Hi-Temp Wash
• Silverware Wash
• Heated Dry Off
• Normal Dry
• Ultra Dry
• Lock Controls
Features
Technologies
• Active Flood Protect
• Leak Defense with Active Flood Protect
• Dual Convection Ultra Dry
• Fan Assist Dry
• Smart Assist
• WiFi Built-in
• Leak Defense with Active Flood Protect
• Dual Convection Ultra Dry
• Fan Assist Dry
• Smart Assist
• WiFi Built-in
Delay Start Information
1-12 Hours
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Filtration System
Yes
Wi-Fi
Yes
Additional Information

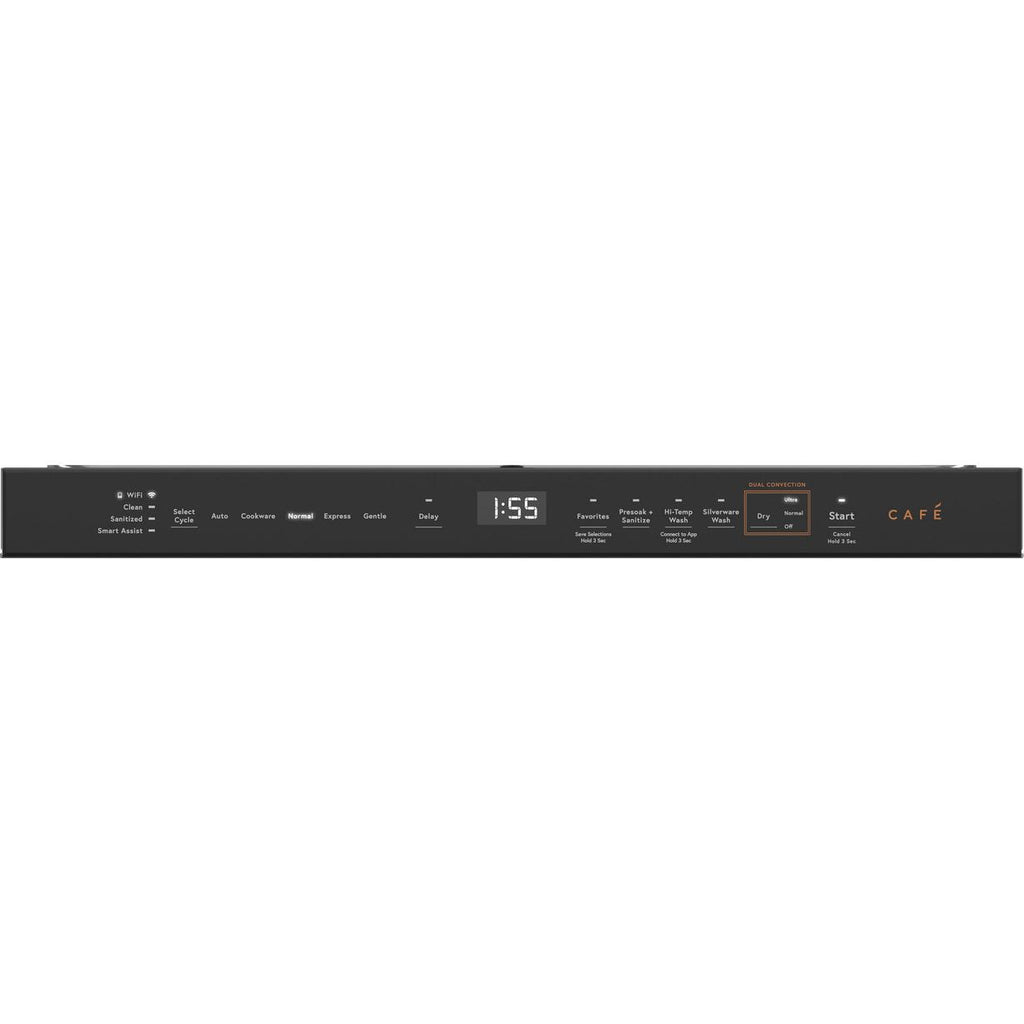

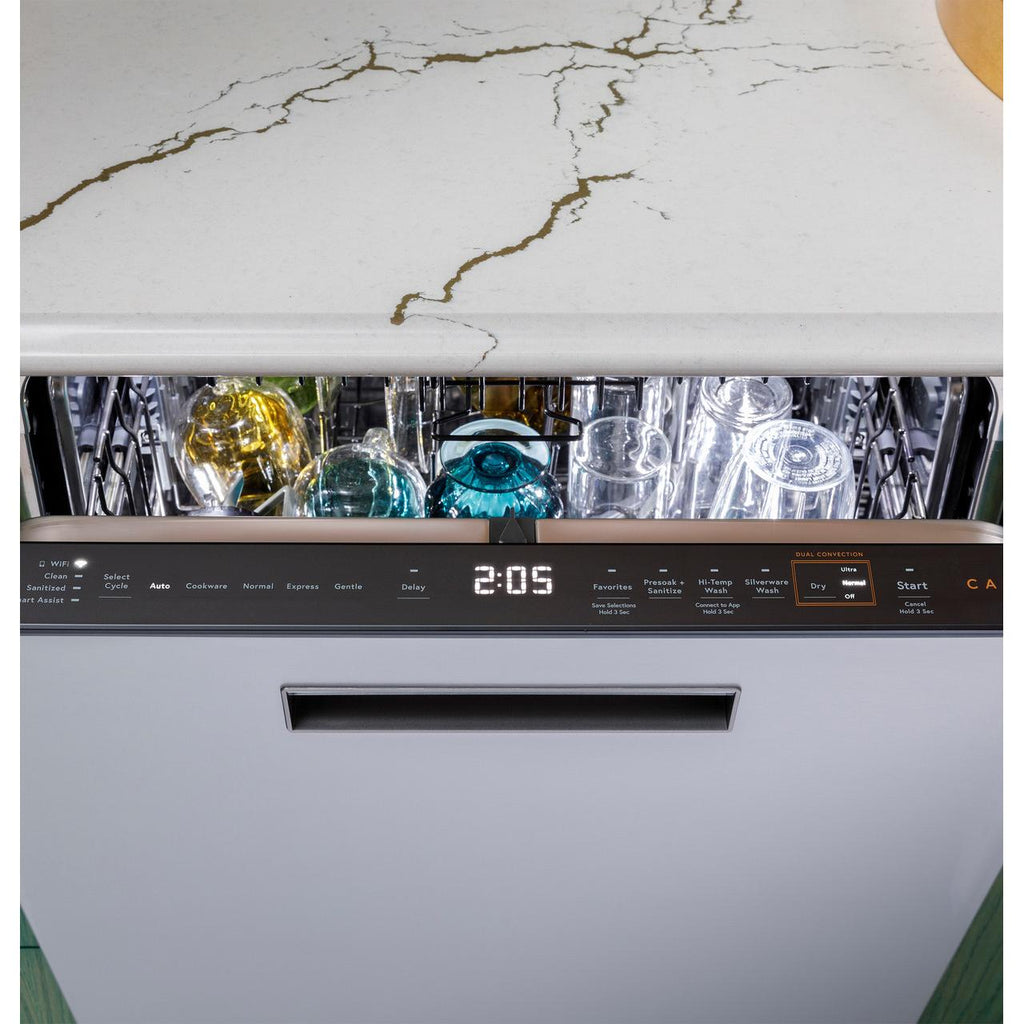

• Top Controls
• Cap Touch Controls
• 8 Touchpads
• One piece removable 3rd rack
• Cycle Countdown with Bi-Color LED Status Light on door
• Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled
• Audible End-of-Cycle Signal
• Last Cycle Memory
• Dispenser: Rinse Aid with Indicator and Adjustment, Electronic Low Rinse Aid Sensor
• Lower Rack: Ball-Tip Tines, 1/2 fixed tines, 1/2 fold down tines, 1 Rack handle
• Rack Color: Black Pearl
• Rack Features: Lid Manager, Ball-Tipped Tines, Adjustable Upper Rack, Full Extension Slides - Upper, Cafe Flex Silverware Basket
• Racking Material: Nylon
• Clean Sensor
• Showroom Power Mode
• Washing, Sliding 3rd Rack w/ removable caddy
• Upper Rack:
• Premium Height Adjustable
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold down tines
• Fixed tines with Bottle Jets
• 1 Rack handle
• Smooth Glide Upper Rack
• Lid Manager
• Wash Arms:
• 4 Wash Levels
• Lower
• Middle
• Upper
• 3rd Rack
• Bottle Jets
• Jets - Variable Pressure
• Deep Clean Silverware Jets
• Wash System Features:

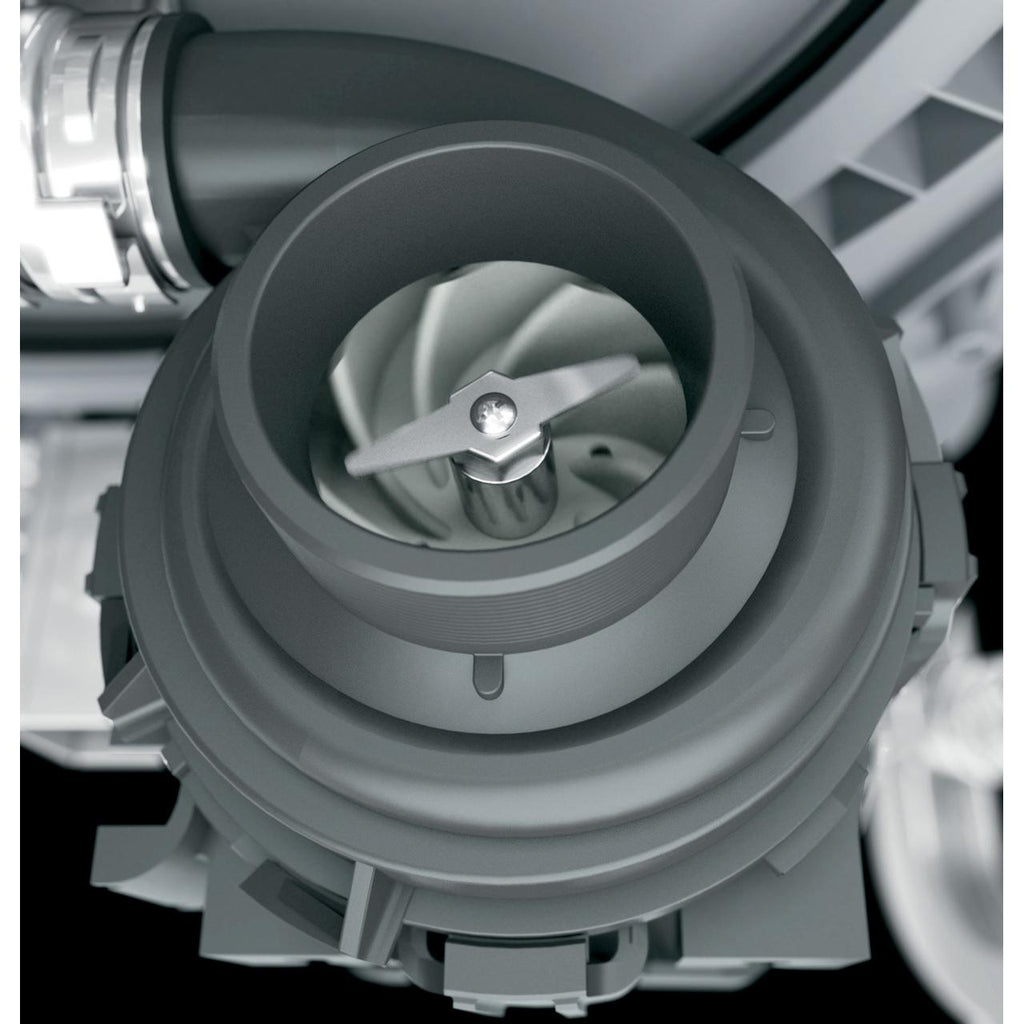

• Variable Speed Dual Pumps and Motors
• Hidden Heater
• Automatic HotStart
• Bottle Jets (4)
• Automatic Temperature Control
• Drain Pump
• Hard Food Disposer with removable filter
• Deep Clean Silverware Jets
• 90+ Spray Jet Wash System
• Middle Wash Arm
• Lower Wash Arm
• Side Jets
• Cap Touch Controls
• 8 Touchpads
• One piece removable 3rd rack
• Cycle Countdown with Bi-Color LED Status Light on door
• Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled
• Audible End-of-Cycle Signal
• Last Cycle Memory
• Dispenser: Rinse Aid with Indicator and Adjustment, Electronic Low Rinse Aid Sensor
• Lower Rack: Ball-Tip Tines, 1/2 fixed tines, 1/2 fold down tines, 1 Rack handle
• Rack Color: Black Pearl
• Rack Features: Lid Manager, Ball-Tipped Tines, Adjustable Upper Rack, Full Extension Slides - Upper, Cafe Flex Silverware Basket
• Racking Material: Nylon
• Clean Sensor
• Showroom Power Mode
• Washing, Sliding 3rd Rack w/ removable caddy
• Upper Rack:
• Premium Height Adjustable
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold down tines
• Fixed tines with Bottle Jets
• 1 Rack handle
• Smooth Glide Upper Rack
• Lid Manager
• Wash Arms:
• 4 Wash Levels
• Lower
• Middle
• Upper
• 3rd Rack
• Bottle Jets
• Jets - Variable Pressure
• Deep Clean Silverware Jets
• Wash System Features:
• Variable Speed Dual Pumps and Motors
• Hidden Heater
• Automatic HotStart
• Bottle Jets (4)
• Automatic Temperature Control
• Drain Pump
• Hard Food Disposer with removable filter
• Deep Clean Silverware Jets
• 90+ Spray Jet Wash System
• Middle Wash Arm
• Lower Wash Arm
• Side Jets
Electrical Information
Information
• 120 V
• 60 Hz
• 10.2 A
• 60 Hz
• 10.2 A
Certifications and Approvals
Energy Star Certified
Yes
Information
• OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
• Sabbath
• Sabbath
Accessories
Optional
Cord kit (GPFCORD - WX09X70910, WX09X70911)
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.32 cm
Height (Min.)
33.37 inch(es) / 84.77 cm
Depth (Without Handle)
24 inch(es) / 60.96 cm
Depth (Including Handle)
24 inch(es) / 60.96 cm
Weight
124.01 lb(s) / 56.25 kg
Additional Dimensions
Height w/Legs Extended - Maximum Height: 34-5/8 in
Shipping Dimensions
Width
24.5 inch(es) / 62.23 cm
Height
35.3 inch(es) / 89.66 cm
Depth
27.9 inch(es) / 70.87 cm
Weight
137 lb(s) / 62.14 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691914631
