Features
EASY-TO-CLEAN STAINLESS STEEL EXTERIOR
Keep your kitchen looking beautiful with an easy-to-clean stainless steel exterior. Simply wipe with a damp cloth, no stainless steel cleaner necessary.
WI-FI ENABLED TEMPERATURE CONTROL & NOTIFICATIONS
Wi-Fi Enabled Refrigeration allows for remote temperature control, notifications when the door is left open via Home Connect® app, and works with smart home devices and services like Amazon Alexa.
INTERNAL WATER DISPENSER.
Internal Water Dispenser: for convenient access to refill your water with UltraClarityPro water filter that removes 99% of impurities.

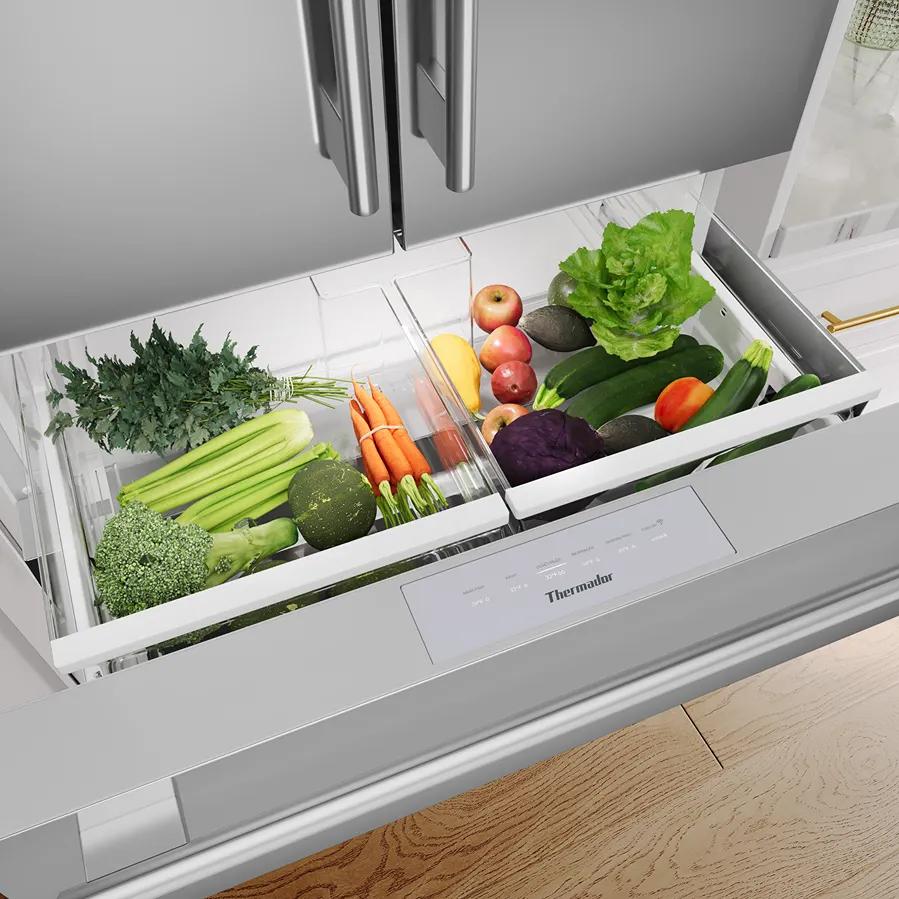

THERMAFRESH® SYSTEM
The dedicated ThermaFresh® drawer is equipped with advanced and improved cooling technology for humidity control and temperature management. The ethylene filter captures gasses of ripening produce to preserve the freshness of your produce.
DIAMOND SHAPED ICE FOR ELEVATED BEVERAGES.
An eye-catching addition to any party, Thermador Diamond Ice features a unique shape that keeps drinks cold. Use Diamond Ice in your favorite craft cocktails to make a lasting impression made with a filtered automatic ice maker.
CONTROL PANEL PROVIDES EASY CONTROL
Control Panel allows for easy control of lighting, settings, and adjusting the temperature of your Fridge and Freezer.
Additional Features
FREE FLOW® COLD AIR SYSTEM
Free Flow® Cold Air System evenly distributes cold air throughout Thermador Refrigerators & Freezers.
SUPERFREEZE®
SuperFreeze® brings food to its ideal preservation temperature after placing it in the freezer when you need items to get cooler, faster.
Specifications
General
Series Name
Freedom® Masterpiece® Collection
Refrigerator Type
French 4-Door
Installation Type
Freestanding
Counter-Depth
Yes
Door Hinge
Left and Right
Reversible Doors
No
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Capacity
Total
20.4 cu. ft.
Refrigerator
14.4 cu. ft.
Freezer
6.0 cu. ft.
Refrigerator Features
Technologies
• ThermaFresh® System
• Multi-Air-Flow
• Wi-Fi-Enabled for Control with Home Connect App
• Multi-Air-Flow
• Wi-Fi-Enabled for Control with Home Connect App
Control Lock
Yes
Digital Display
Yes
Door Alarm
Yes
Frost Free
Yes
Interior Light
Yes
Wi-Fi
Yes
Crisper Drawers
Yes

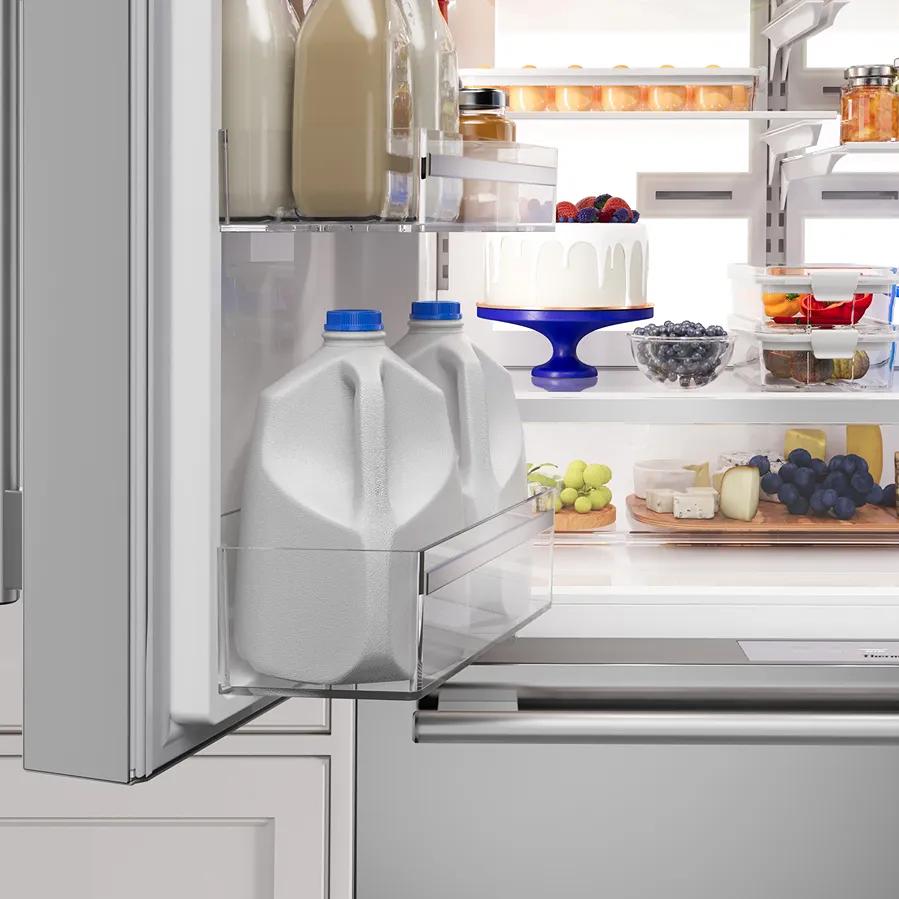

Gallon Door
Yes
Additional Information
• Masterpiece® Handle Style
• Dual Compressor
• Dual Evaporators
• Modes: Eco, Sabbath, Vacation, Demo, SuperCool, SuperFreeze®
• Air Fresh Filter
• Ethylene Filter (6 Months)
• ThermaFresh® Drawer Modes (°F / Humidity): Meat/Fish (29°F / Low), Fruit (32°F / Low), Vegetables (32°F / High), Beverages (34°F / Low), Snacks/Misc. (40°F / Low)
• Storage Shelves: 4 Adjustable, 1 Fixed
• Shelf Material: Glass with Metal Profile
• Standard Door Bins: 3 Adjustable
• Gallon Door Bins: 2 Adjustable
• Dairy Door Bin: 1 Adjustable
• Full 72" Height and True Counter-Depth for Built-In Appearance
• Lighting: LED Recessed Side Light Bars & Fully Illuminated Back Panel
• Independent Cooling Systems: 2
• Remote Monitoring and Control via Home Connect
• Dual Compressor
• Dual Evaporators
• Modes: Eco, Sabbath, Vacation, Demo, SuperCool, SuperFreeze®
• Air Fresh Filter
• Ethylene Filter (6 Months)
• ThermaFresh® Drawer Modes (°F / Humidity): Meat/Fish (29°F / Low), Fruit (32°F / Low), Vegetables (32°F / High), Beverages (34°F / Low), Snacks/Misc. (40°F / Low)
• Storage Shelves: 4 Adjustable, 1 Fixed
• Shelf Material: Glass with Metal Profile
• Standard Door Bins: 3 Adjustable
• Gallon Door Bins: 2 Adjustable
• Dairy Door Bin: 1 Adjustable
• Full 72" Height and True Counter-Depth for Built-In Appearance
• Lighting: LED Recessed Side Light Bars & Fully Illuminated Back Panel
• Independent Cooling Systems: 2
• Remote Monitoring and Control via Home Connect
Freezer Features
Additional Freezer Information

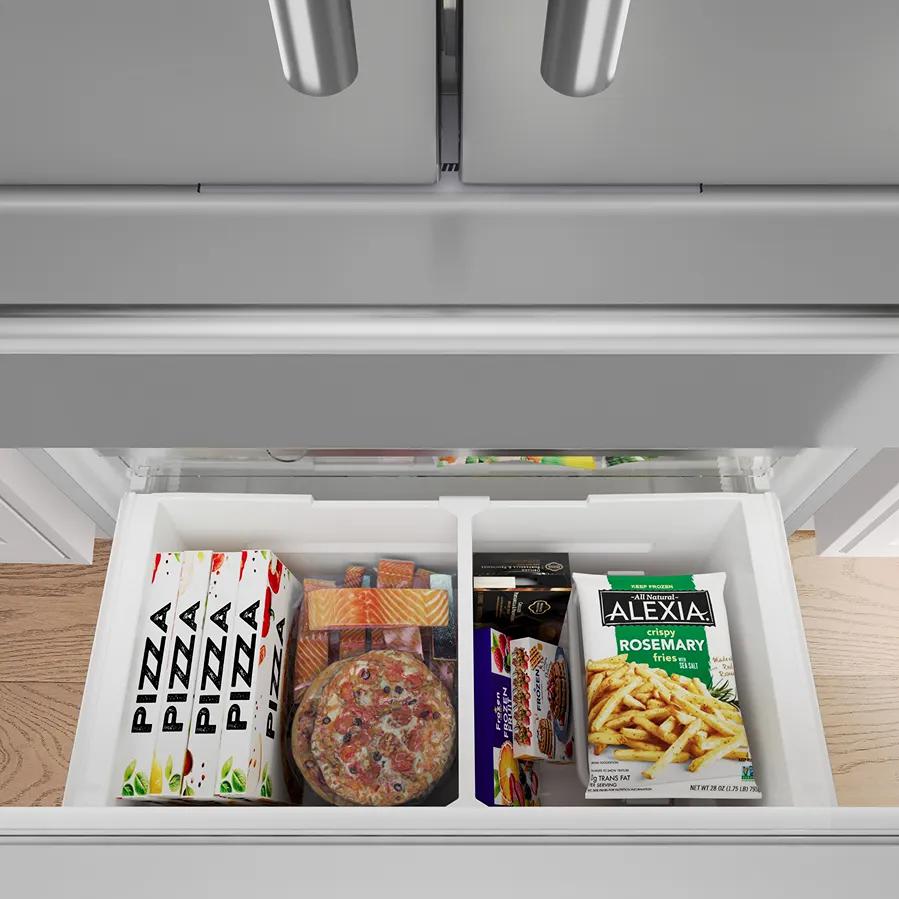

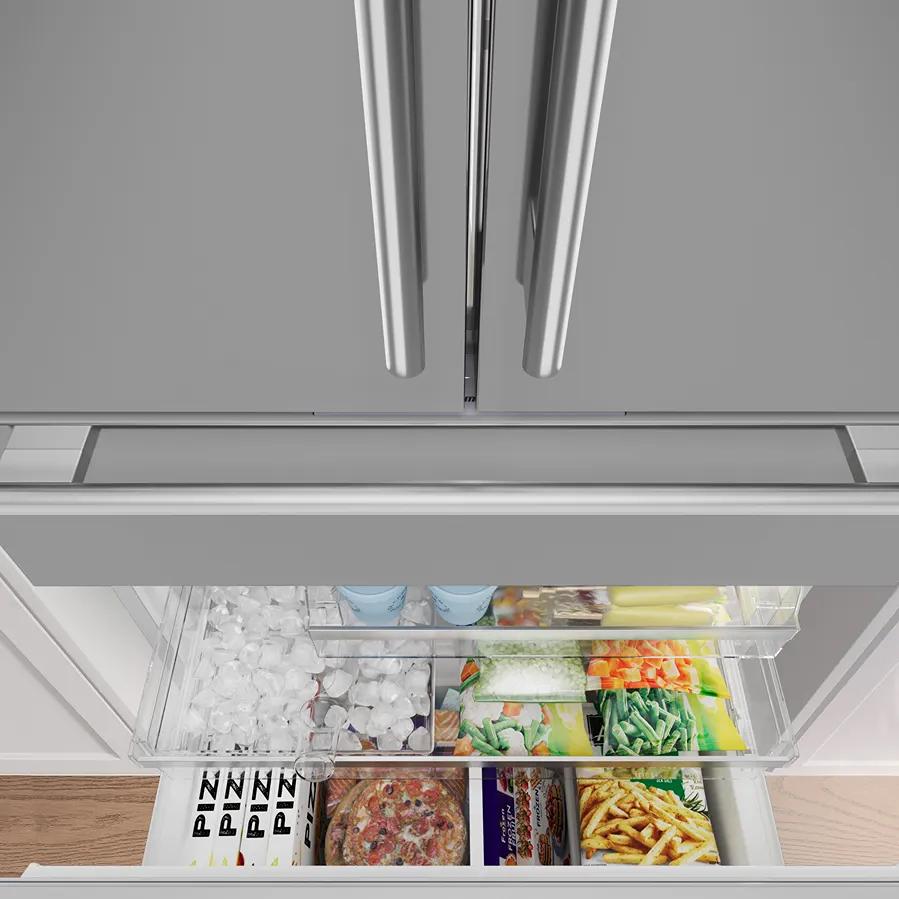

Tiered Freezer Storage Drawer: 3 Tier
Ice and Water
Ice System
Interior
Water System
Interior
Filtration
Yes
Filtration Indicator
Yes
Dispenser Features
• Water Filter (6 Months)
• Ice Maker with Diamond Ice System
• Ice Production (24 Hrs.), Diamond Ice: 3.5 lbs
• Ice On / Off
• Ice Storage Capacity: 8.8 lbs
• Ice Maker with Diamond Ice System
• Ice Production (24 Hrs.), Diamond Ice: 3.5 lbs
• Ice On / Off
• Ice Storage Capacity: 8.8 lbs
Electrical Information
Information
• Required Power Supply: 110–127 V, 60 Hz, 10 Amp
• Plug Type: 120V-3-Prong
• Annual Energy Consumption*: 568 kWh
• Plug Type: 120V-3-Prong
• Annual Energy Consumption*: 568 kWh
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Accessories
Optional
• Replacement Water Filter: REPLFLTR55
• Ethylene Filter Refill (Part No.): 17005225
• Ethylene Filter Starter Kit (Part No.): 17005228
• Replacement Carbon Air Filter (Part No.): 10009874
• 90 Degree Door Stopper: 10012733
• Ethylene Filter Refill (Part No.): 17005225
• Ethylene Filter Starter Kit (Part No.): 17005228
• Replacement Carbon Air Filter (Part No.): 10009874
• 90 Degree Door Stopper: 10012733
Dimensions
Class Width
35" to 37.9"
Class Height
70" and More
Width
35.63 inch(es) / 90.5 cm
Height (With Hinge)
72.05 inch(es) / 183.0 cm
Depth (Without Handles)
28.78 inch(es) / 73.1 cm
Weight
348 lb(s) / 157.85 kg
Additional Dimensions
• Overall Depth Without Hinges and Doors: 24"
• Overall Depth With Hinges and Doors, No Handles: 28 3/4"
• Required Cutout Size (HxWxD): 72" x 36" x 25"
• Overall Depth With Hinges and Doors, No Handles: 28 3/4"
• Required Cutout Size (HxWxD): 72" x 36" x 25"
Shipping Dimensions
Weight
375.01 lb(s) / 170.1 kg
Warranty
Warranty
Limited Warranty, Parts & Labor: 2 Years
