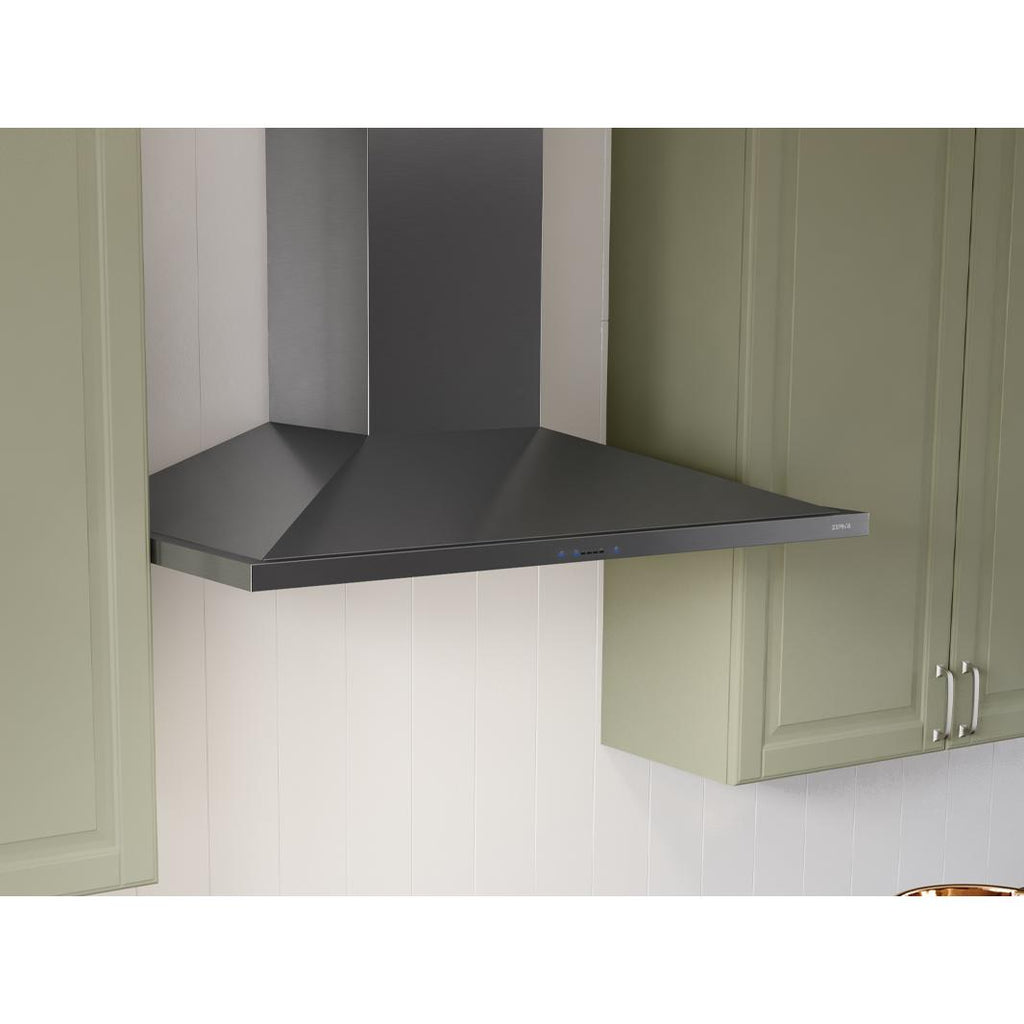

Zephyr 30-inch Anzio Wall Mount Range Hood ZAN-E30DBS IMAGE 1

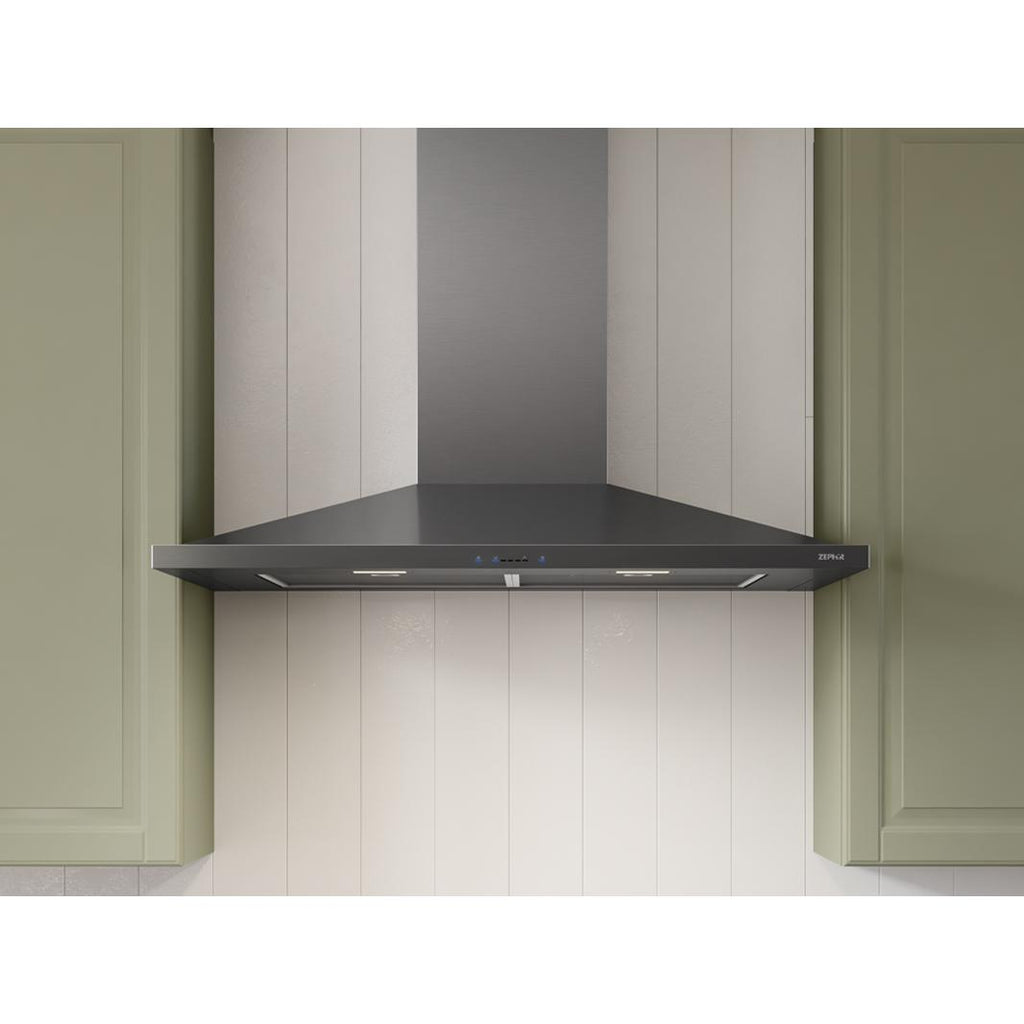

Zephyr 30-inch Anzio Wall Mount Range Hood ZAN-E30DBS IMAGE 2

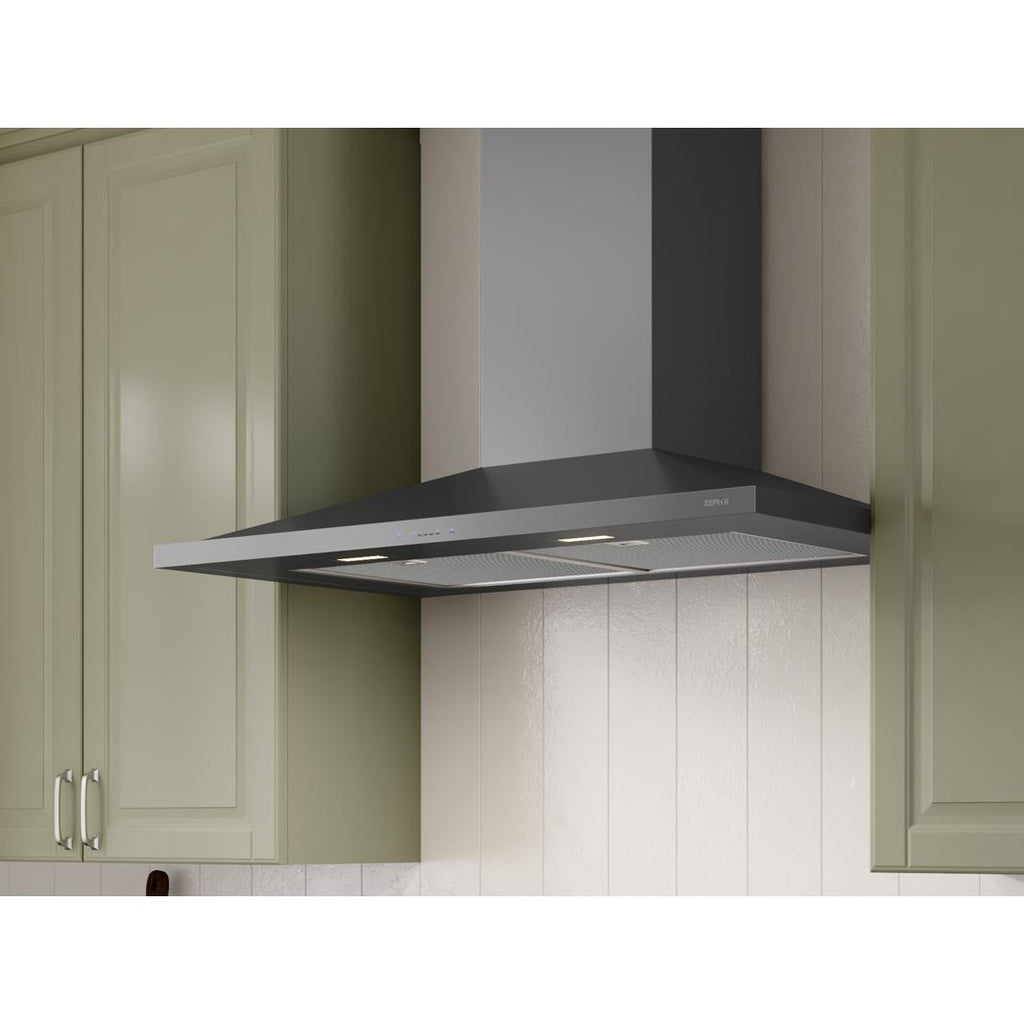

Zephyr 30-inch Anzio Wall Mount Range Hood ZAN-E30DBS IMAGE 3

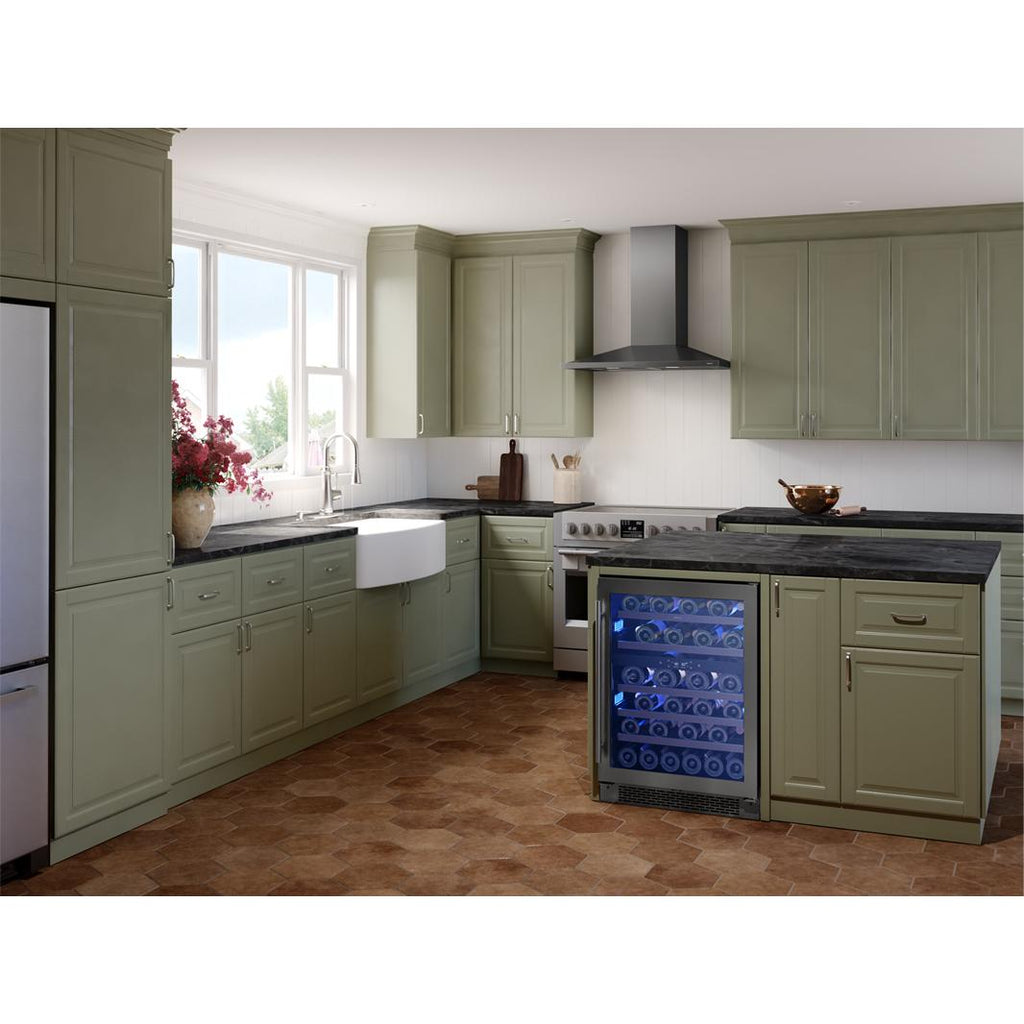

Zephyr 30-inch Anzio Wall Mount Range Hood ZAN-E30DBS IMAGE 4
Roll over image to zoom in Click on image to zoom
Zephyr 30-inch Anzio Wall Mount Range Hood ZAN-E30DBS IMAGE 1
Zephyr 30-inch Anzio Wall Mount Range Hood ZAN-E30DBS IMAGE 2
Zephyr 30-inch Anzio Wall Mount Range Hood ZAN-E30DBS IMAGE 3
Zephyr 30-inch Anzio Wall Mount Range Hood ZAN-E30DBS IMAGE 4

Zephyr 30-inch Anzio Wall Mount Range Hood ZAN-E30DBS

ZephyrSKU: ZANE30DBS
Zephyr Anzio 30-inch wall hood. Anzio is a low-profile, chimney-style range hood that will add style and value to any... Zephyr Anzio 30-inch wall hood. Anzio is a low-profile, chimney-style range hood that will add style and value to any kitchen. Complete with a 600-CFM blower, ICON Touch® controls, LumiLight LED lighting and Zephyr's exclusive Airflow Control Technology™ (ACT™). View more
Save $670.00 Price:
$2,129.00 $2,799.00
warranty product

Please select a warranty option

Avis sur la garantie légale

Features Specifications Documents
Features
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
ACT™ CONTROL TECHNOLOGY
Additional Features
ICON TOUCH™ CONTROLS
Seamlessly integrates into the hood’s stainless steel canopy and allows users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
Specifications
General
Series Name
Anzio
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Black Stainless
Manufacturer Color
Black Stainless Steel
Installation
Wall Mount
Features
Technologies
• Airflow Control Technology™ (ACT™)
• LumiLight LED Lighting
• ICON Touch® Controls
Ducting Information
6" Round - Vertical Ducting
Speeds
• 5 Speeds
• ACT 390 CFM (Min. - Max.): 200 - 390
• ACT 290 CFM (Min. - Max.): 200 - 290
Additional Information
• Low-Profile Body
• Auto Delay-Off
• Dual-Level Lighting
• LumiLight LED, 6W x2
• Filters: Aluminum Mesh x2
• Recirculating Option
• Duct Cover Extension Option
• Sones (Min. - Max.): 1 - 6
Electrical Information
Information
• 120 V
• 60 Hz
• 4 A
Accessories
Optional
• Wireless Remote Control Kit: RC-0002
• Recirculating Kit: ZRC-01AN
• Duct Cover Extension: Z1C-00ANBS
• Stainless Steel Telescopic Backsplash: AK1710
• Make-Up Air Kit: MUA006A
• Hybrid Baffle Filter Kit (2 filters): Z0F-B002
Dimensions
Class Width
30"
Width
29.94 inch(es) / 76.04 cm
Height
18.44 inch(es) / 46.83 cm
Depth
22.06 inch(es) / 56.03 cm
Additional Dimensions
Mounting Height Range: 26" - 34"
Warranty
Warranty
• 1-Year for labor
• 3-Year Limited for parts only
UPC
UPC#
646328010675
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
