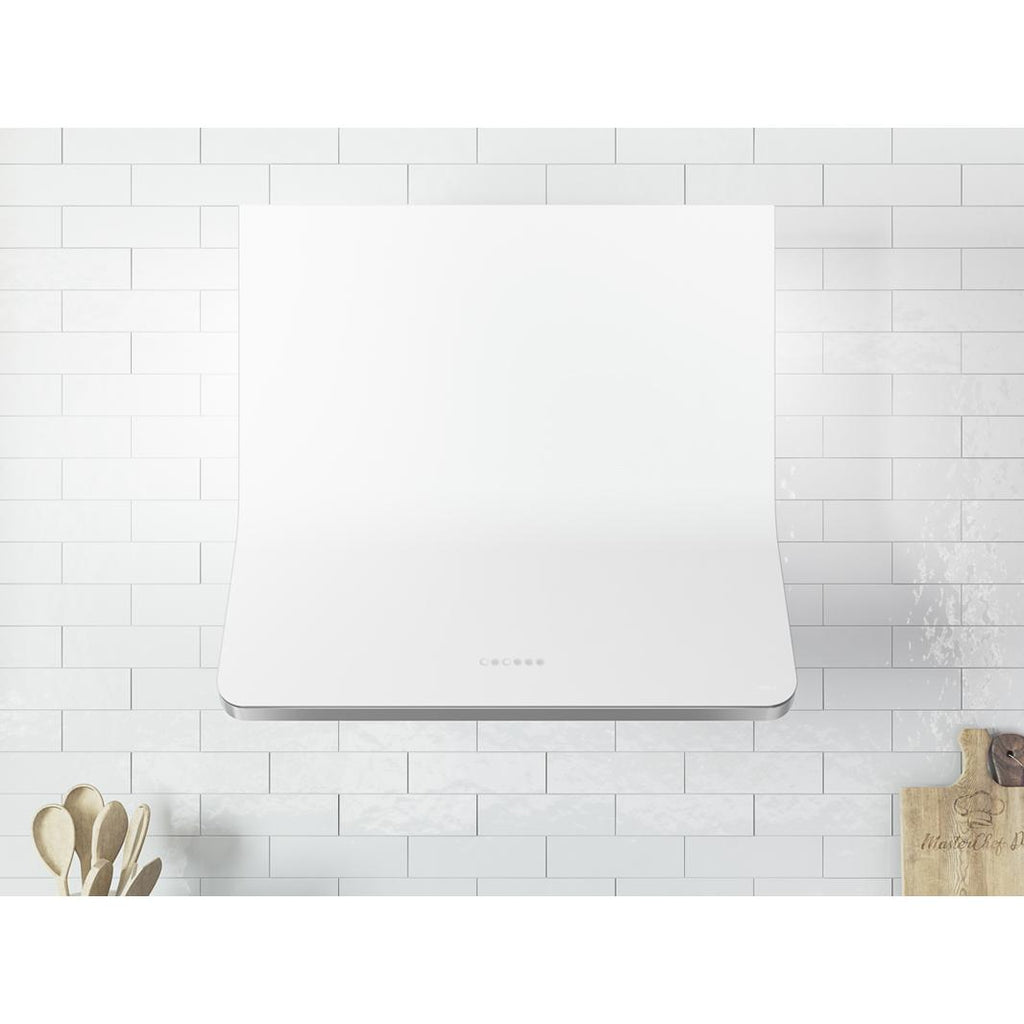

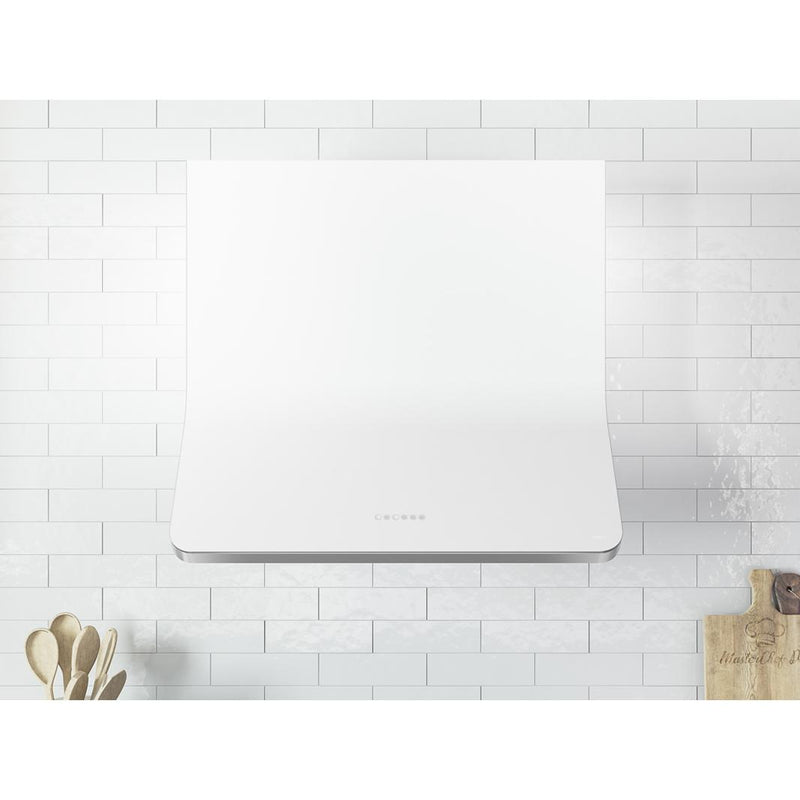

Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMWX IMAGE 1
Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMWX IMAGE 2

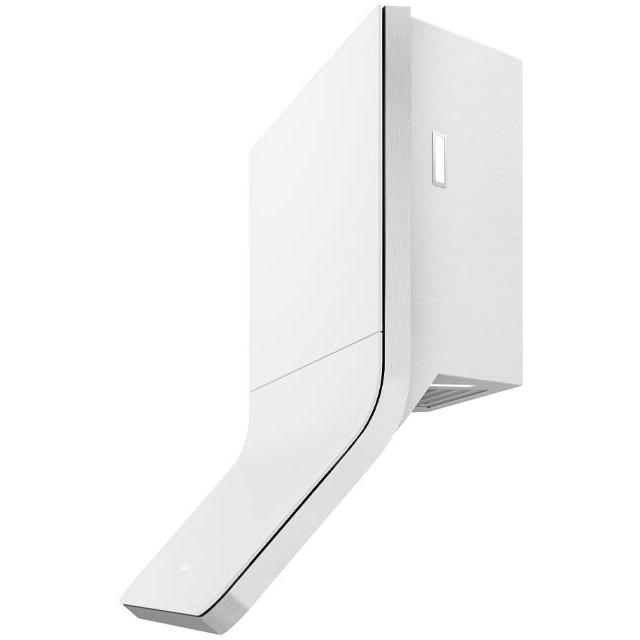

Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMWX IMAGE 3
Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMWX IMAGE 4

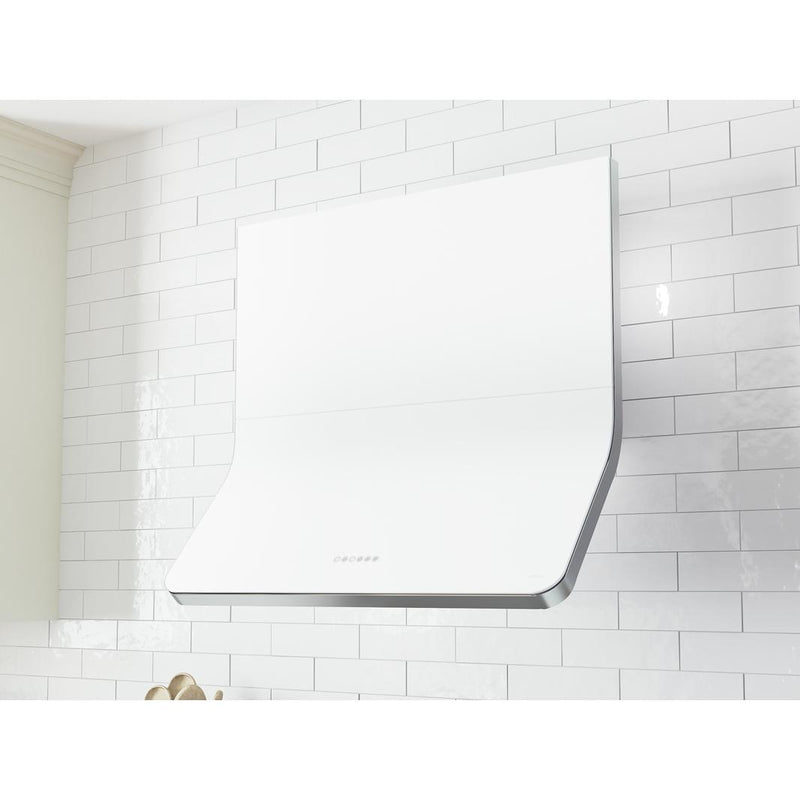

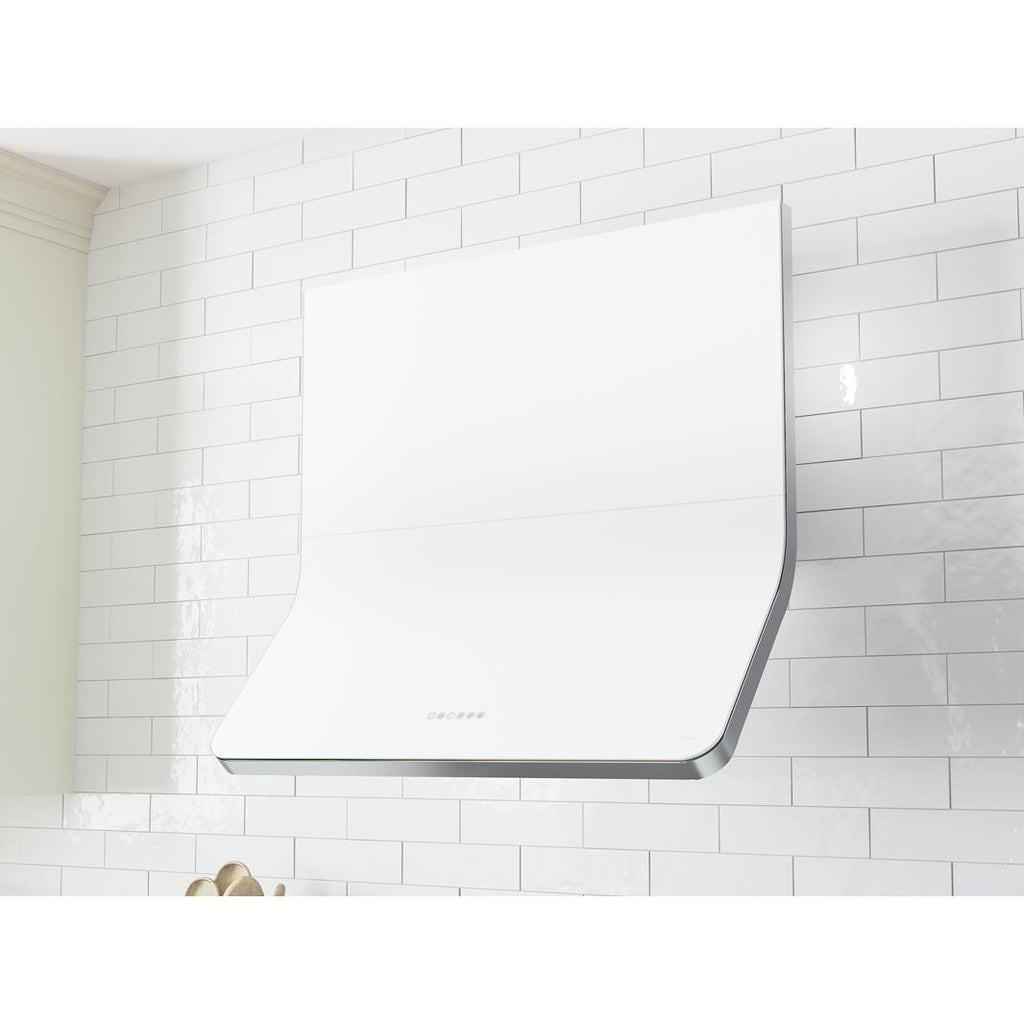

Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMWX IMAGE 5
Roll over image to zoom in Click on image to zoom
Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMWX IMAGE 1
Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMWX IMAGE 2
Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMWX IMAGE 3
Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMWX IMAGE 4
Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMWX IMAGE 5

Zephyr 36-inch Horizon Series Wall Mount Hood Shell DHZ-M90AMWX

ZephyrSKU: DHZM90AMWX
Appearing to float above your cooktop, the iconic Horizon is back. The original showstopper, Horizon will make every cooking session... Appearing to float above your cooktop, the iconic Horizon is back. The original showstopper, Horizon will make every cooking session look and feel cooler. It features dual capture zones, capacitive touch controls, multiple blower options, hybrid baffle filters, and better-than-ever soft ambient lighting. Compatible with an optional remote control accessory. Blower sold separately. View more
Save $470.00 Price:
$4,699.00 $5,169.00
warranty product

Please select a warranty option

Avis sur la garantie légale

Features Specifications Documents
Features
CLEAN AIR
Clean Air is a feature that turns the blower on every 4 hours for 10 minutes to remove stagnant air in the kitchen. This feature is disabled by default and must be enabled by the user.
DELAY OFF
This feature is used for programmed shut down of blowers 15 minutes after the function is activated. Press once, a dot flashes in the lower right side of display indicating the function is on. The blowers will shut down after 15 minutes.
Specifications
General
Series Name
Horizon
Blower Included
No
Style
Standard
Color
White
Manufacturer Color
Matte White
Installation
Wall Mount
Features
Ducting Information
• Vertical Single Internal Blower 6" Round
• Vertical In-Line/External Blower 10" to 8" Round
• Horizontal Single Internal Blower 6" Round
• Horizontal In-Line/External Blower 10" to 8" Round
Speeds
3 Speeds
Additional Information

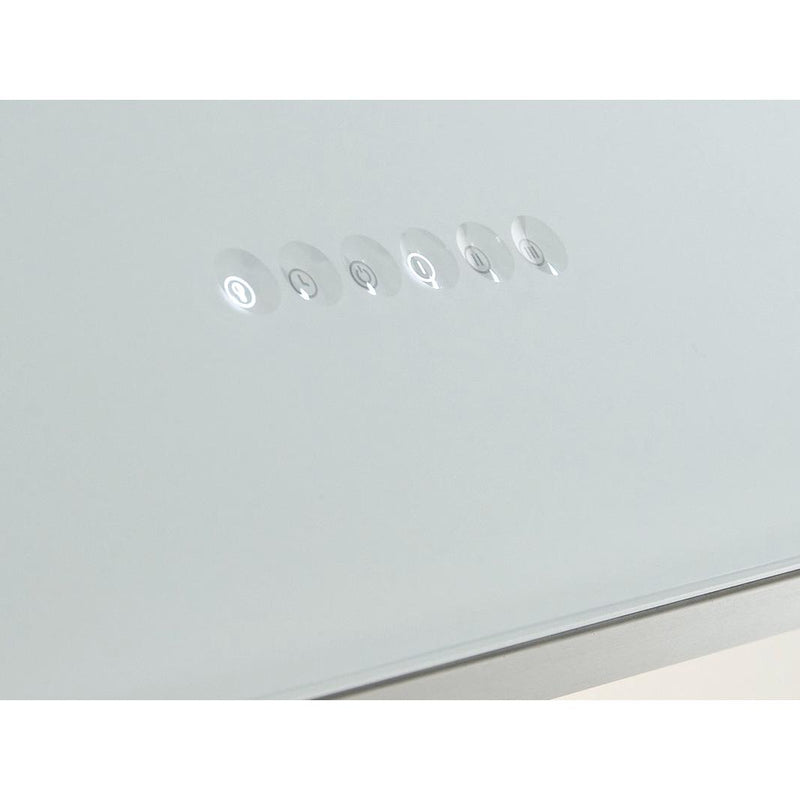

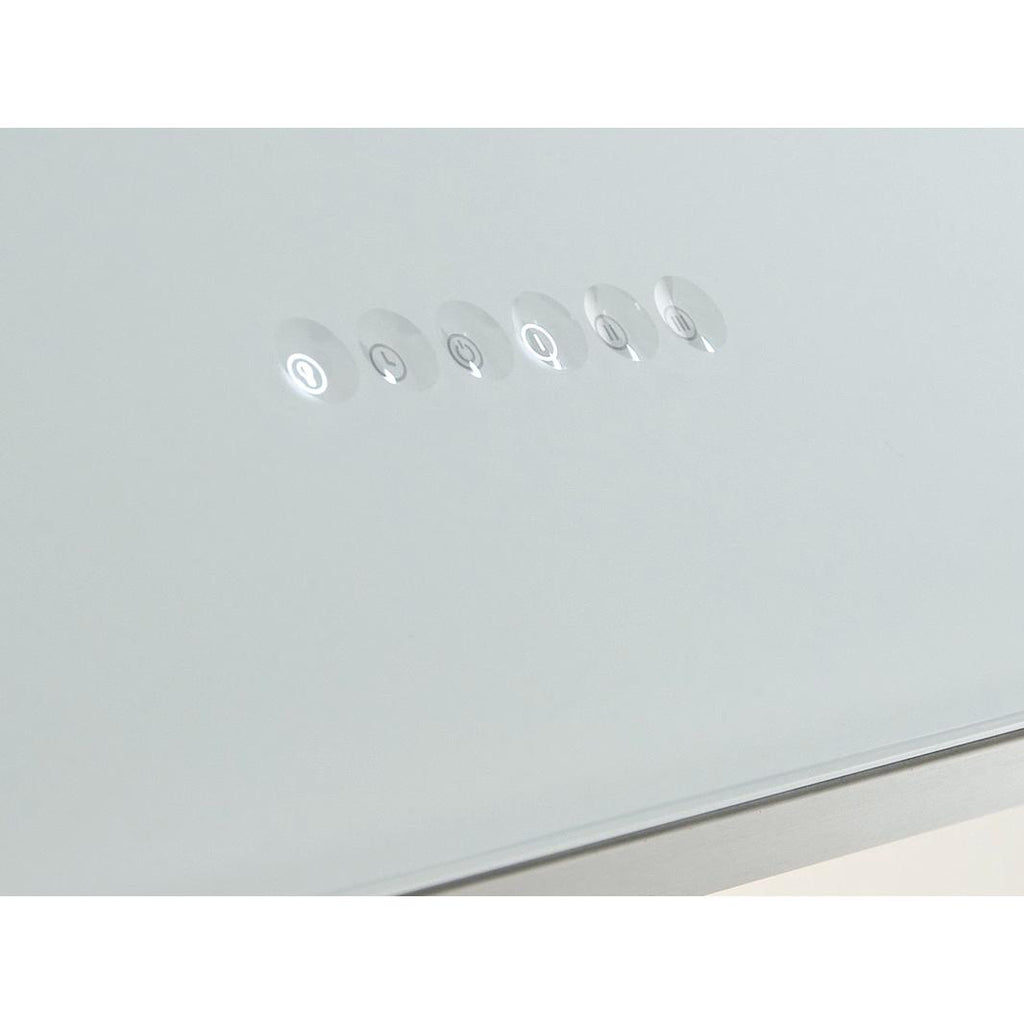

• Capacitive Touch Controls
• Auto Delay-Off
• CleanAir Function
• Lighting LED, 5W x6
• Tri-Level Lighting
• Dual Capture Zones
• Hybrid Baffle x4
• Recirculating (Not compatible with optional duct cove)
Certifications and Approvals
Information
ADA with Remote Option
Accessories
Optional
• Internal Blower (CBI-290C) 200-290 CFM, 1.4-3 sones
• Internal Blower (CBI-600A) 240-600 CFM, 1.8-6 sones
• In-Line Blower (PBN-1000A) 500-1,000 CFM, sones NA
• External Blower (CBE-1000) 500-1,000 CFM, sones NA
• Recirculating Kit Z0F-C010
• Remote Control 14000010
• Duct Cover - Stainless Steel Z1C-01HZ
• Make-Up Air Kit MUA006A (600 CFM), MUA008A (1,000 CFM)
Dimensions
Class Width
36"
Width
35.37 inch(es) / 89.85 cm
Height
32.87 inch(es) / 83.5 cm
Depth
20.12 inch(es) / 51.11 cm
Warranty
Warranty
2 Year Parts, 1 Year Labor
UPC
UPC#
646328008832
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
