Features
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
Specifications
General
Series Name

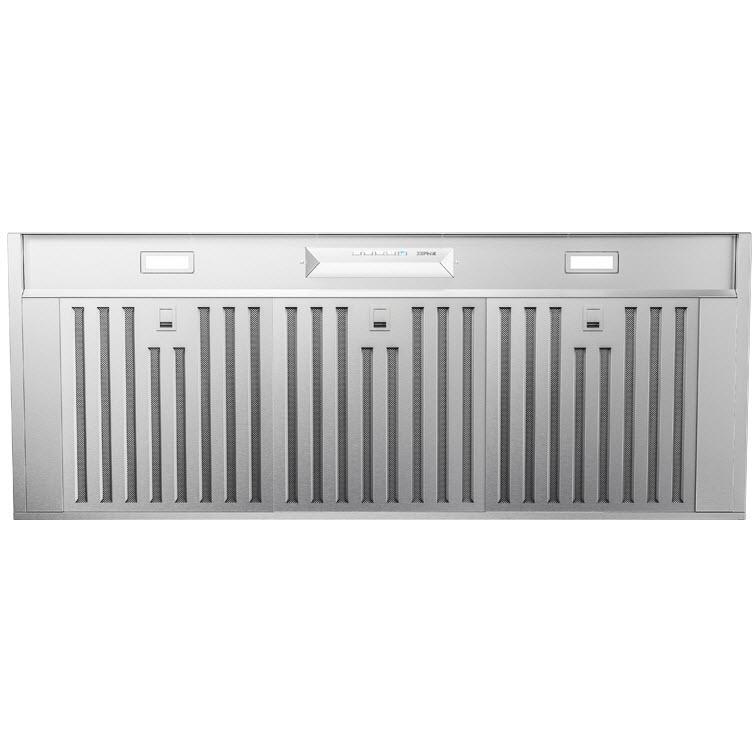

Monsoon Mini II
Blower Included
Yes
Airflow
600 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Technologies
ACT™ Technology
Ducting Information
• Vertical Internal Blower 7" Round, 3-1/4" x 10"
• Horizontal Internal Blower 3-1/4" x 10"
• Horizontal Internal Blower 3-1/4" x 10"
Speeds
3 Speeds: *When ACT™ is enabled the maximum speed levels will change. ACT 390 = 2 speeds and ACT 290 = 1 speeds
Additional Information
• Blower CFM (Min. - Max.) 290 - 600
• Sones (Min. - Max.) 1.5 - 6
• ACT 390 CFM (Min. - Max.) 290 - 390
• ACT 290 CFM (Min. - Max.) 290 - 290
• Electronic Touch Controls
• Auto Delay-Off
• LumiLight LED, 6W x2
• Dual-Level Lighting
• Filters Hybrid Baffle x3
• Recirculating Option
• Sones (Min. - Max.) 1.5 - 6
• ACT 390 CFM (Min. - Max.) 290 - 390
• ACT 290 CFM (Min. - Max.) 290 - 290
• Electronic Touch Controls
• Auto Delay-Off
• LumiLight LED, 6W x2
• Dual-Level Lighting
• Filters Hybrid Baffle x3
• Recirculating Option
Electrical Information
Information
• 120 V
• 60 Hz
• 4 A
• 60 Hz
• 4 A
Accessories
Optional
• Recirculating Kit ZRC-9100A
• Make-Up Air Kit MUA006A
• Damper, 7" Round AK00067
• Make-Up Air Kit MUA006A
• Damper, 7" Round AK00067
Dimensions
Class Width
48"
Width
46.37 inch(es) / 117.79 cm
Height
6.12 inch(es) / 15.55 cm
Depth
18.06 inch(es) / 45.87 cm
Warranty
Warranty
3 Years Parts, 1 Year Labor
UPC
UPC#
646328009938
