Specifications
General
Series Name
Dolomite
Refrigerator Type
Bottom Freezer
Installation Type
Built-In
Door Hinge
Left
Reversible Doors
Yes
Color
Panel Ready
Manufacturer Color
Panel Ready
Capacity
Total
16.0 cu. ft.
Refrigerator
11.5 cu. ft.
Freezer
4.5 cu. ft.
Refrigerator Features
Digital Display
Yes
Interior Light
Yes
Crisper Drawers
Yes
Additional Information
• Temperature range: +35°F (2°C) to 46°F (8°C), Chiller drawer: 30°F (-1°C) to 41°F(5°C)

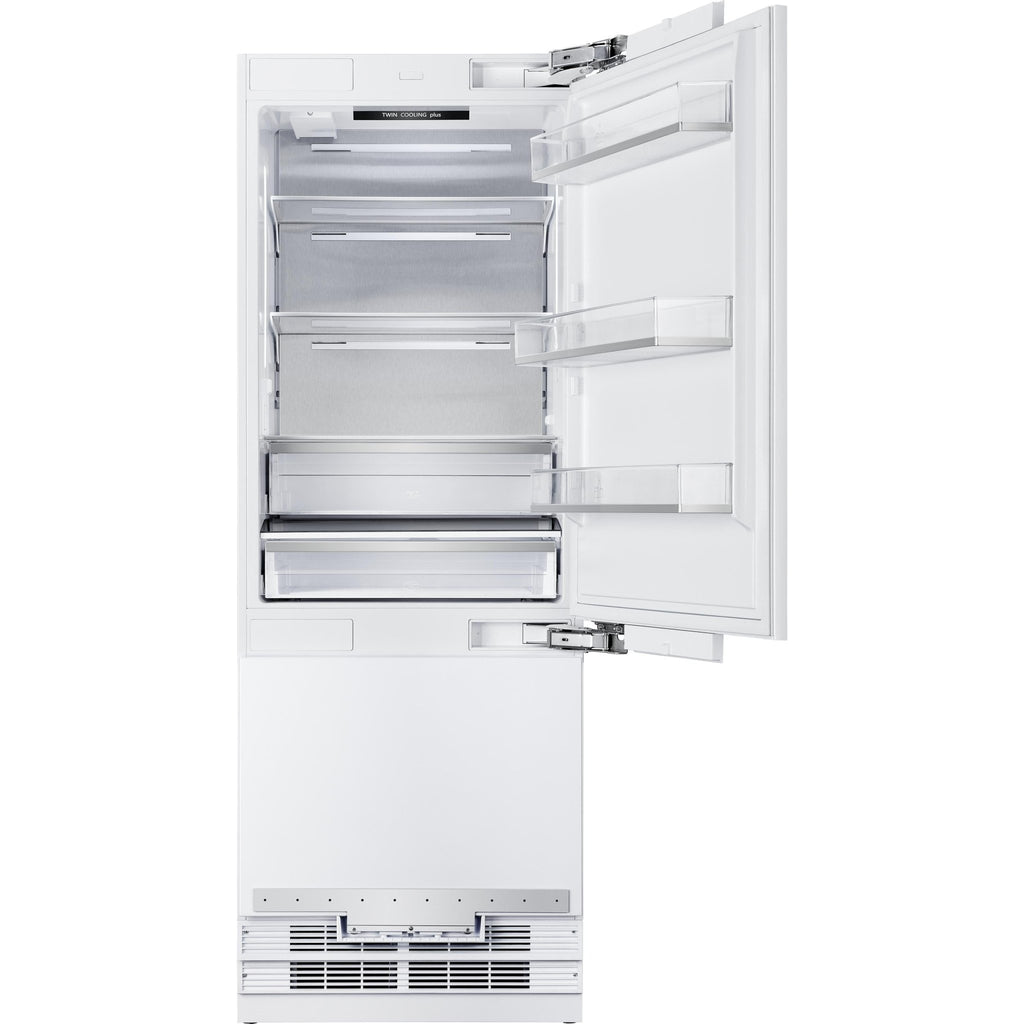

• Shelving: 3 Height adjustable cantilever, Spill-Proof Glass shelves
• Drawers: Humidity control Drawer +, Chiller Adjustable Temp Drawer
• Door Storage: 3 Height adjustable Bins
• Reversible Door: Field Reversible
• Interior Finish: White plastic liner
• Hinge Design: Articulating 90° opening flush hinge
• Refrigerant type: R600A
• Compressor: Donper
• Noise: Ultra Quiet 43 db(A)
• Lighting: LED 6500K 300 lumens, 100 lumen for Freezer

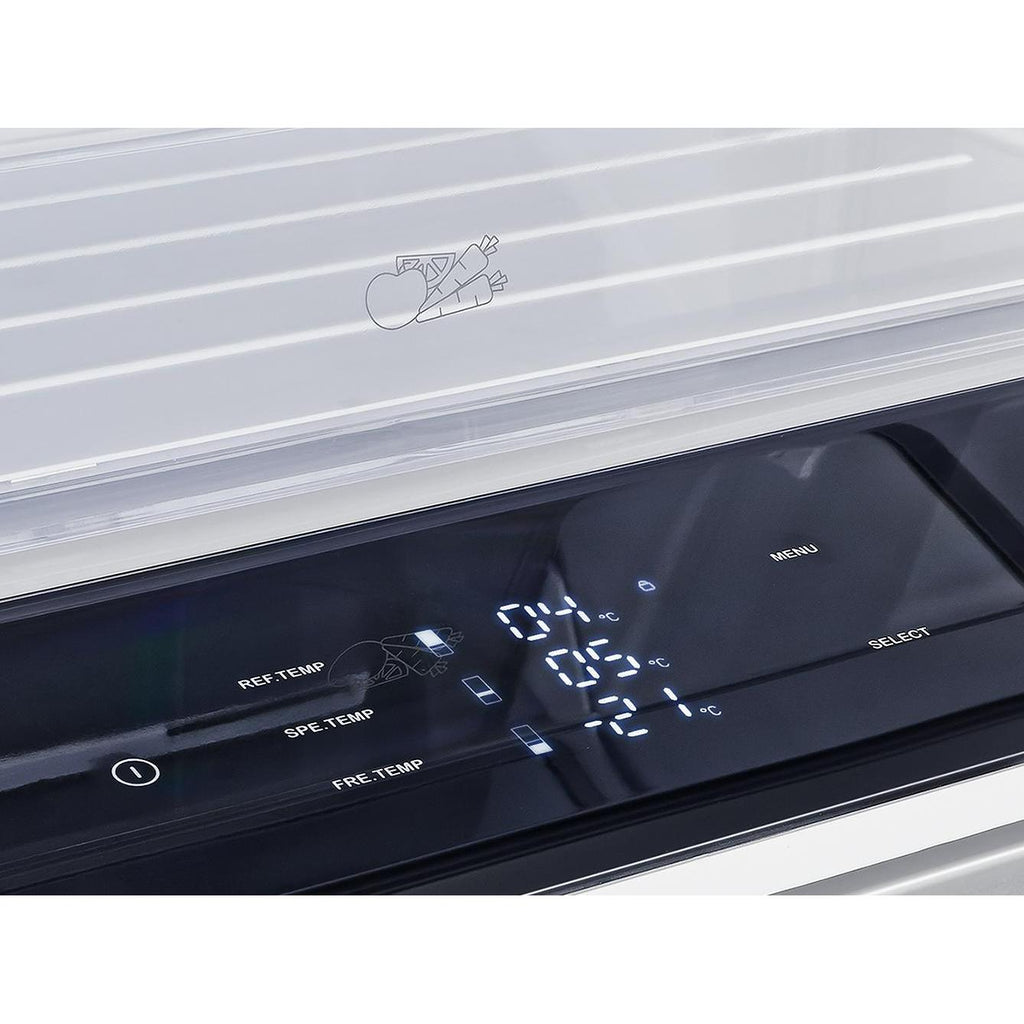

• Controls: Electronic Soft-Touch Digital Black Glass display
• Sabbath & Holiday Mode
• ECO Mode
• Soft close crisper & pantry drawers
• Ultra Quiet operation
• True Flush Install - 3D door adjustment
• Cool Day LED interior light side walls & ceiling
• Shelving: 3 Height adjustable cantilever, Spill-Proof Glass shelves
• Drawers: Humidity control Drawer +, Chiller Adjustable Temp Drawer
• Door Storage: 3 Height adjustable Bins
• Reversible Door: Field Reversible
• Interior Finish: White plastic liner
• Hinge Design: Articulating 90° opening flush hinge
• Refrigerant type: R600A
• Compressor: Donper
• Noise: Ultra Quiet 43 db(A)
• Lighting: LED 6500K 300 lumens, 100 lumen for Freezer
• Controls: Electronic Soft-Touch Digital Black Glass display
• Sabbath & Holiday Mode
• ECO Mode
• Soft close crisper & pantry drawers
• Ultra Quiet operation
• True Flush Install - 3D door adjustment
• Cool Day LED interior light side walls & ceiling
Freezer Features
Additional Freezer Information
• Temperature range: +5°F (-15°C)to-11°F(-24°C)

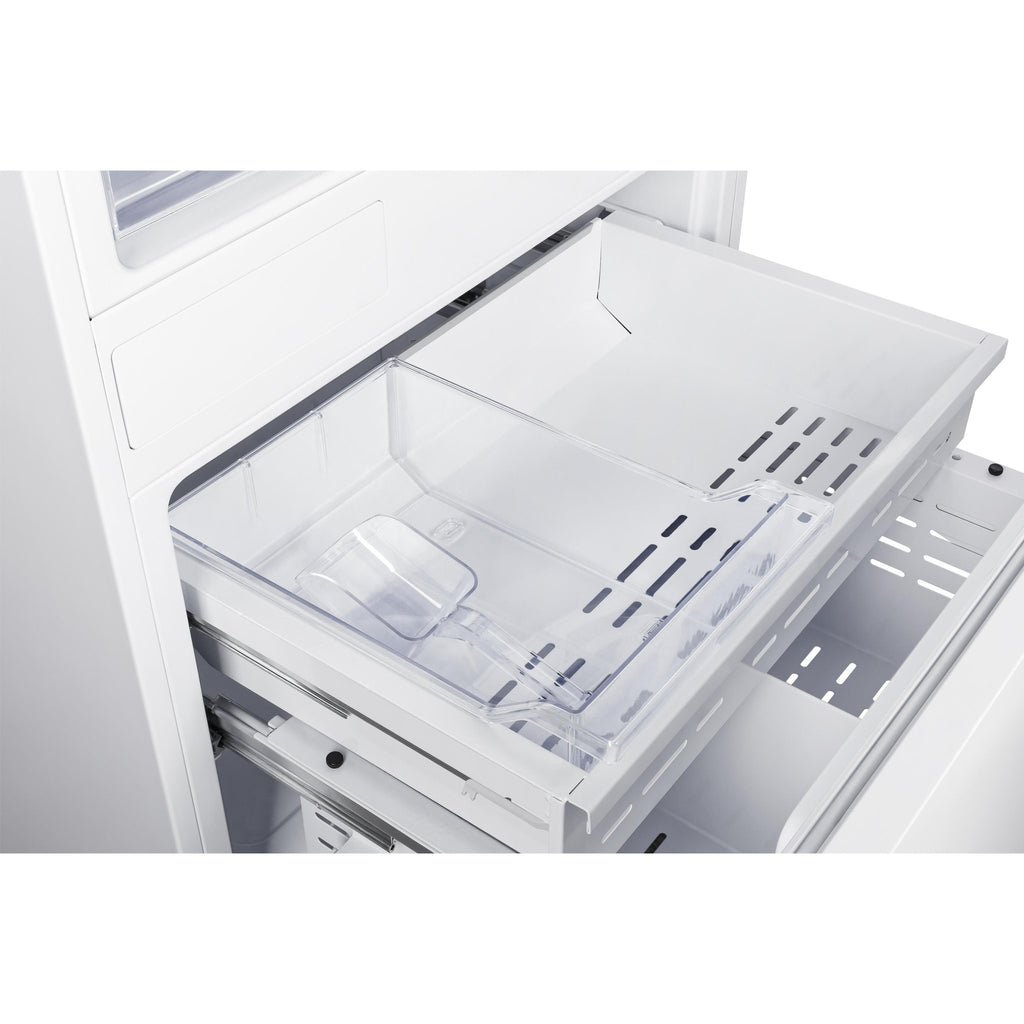

• Drawers: 1 Large Freezer drawer, 1 Metal Freezer Drawer
• Drawers: 1 Large Freezer drawer, 1 Metal Freezer Drawer
Ice and Water
Ice System
Interior
Water System
Interior
Filtration
Yes
Dispenser Features
• Water Dispenser: Filtered Water (1. 15 – 75 PSI water pressure)
• Interior Automatic Icemaker: (3.9 lbs/day with basket capacity 5 lbs)
• Interior Automatic Icemaker: (3.9 lbs/day with basket capacity 5 lbs)
Electrical Information
Information
• Electric: 115V/60 Hz & 220-240 V/ 50-60Hz
• Plug Type: NEMA 5-15 P plug
• Power Cord Length: 7.5 feet
• Energy consumption: 551 kw/year
• Plug Type: NEMA 5-15 P plug
• Power Cord Length: 7.5 feet
• Energy consumption: 551 kw/year
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Additional Information
ETL US
Accessories
Optional
• 30" Stainless Steel Panel Kit: EPNKB30SS (3/4" deep)
• Pro Handle Stainless Steel Kit: EPHKBSS
• Tubular Handle Stainless Steel Kit: ETHKBSS
• Column Joining Kit: ECJKCXX
• Pro Handle Stainless Steel Kit: EPHKBSS
• Tubular Handle Stainless Steel Kit: ETHKBSS
• Column Joining Kit: ECJKCXX
Dimensions
Class Width
35" to 37.9"
Class Height
70" and More
Width
29.69 inch(es) / 75.41 cm
Height (With Hinge)
83.25 inch(es) / 211.46 cm
Overall Depth
23.31 inch(es) / 59.21 cm
Weight
342 lb(s) / 155.13 kg
Additional Dimensions
Cut Out Dimensions: 30 " W x 25" D x 84" H
Shipping Dimensions
Weight
386.01 lb(s) / 175.09 kg
Warranty
Warranty
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts
& In-Home Labor by registering on elica.com
