Features
AIR BAKING
Redefine baking with the power of air. By circulating hot air throughout the oven, Air Baking delivers even heating for crispy-on-the-outside, gooey-on-the-inside cookies, juicy, tender turkey and more.

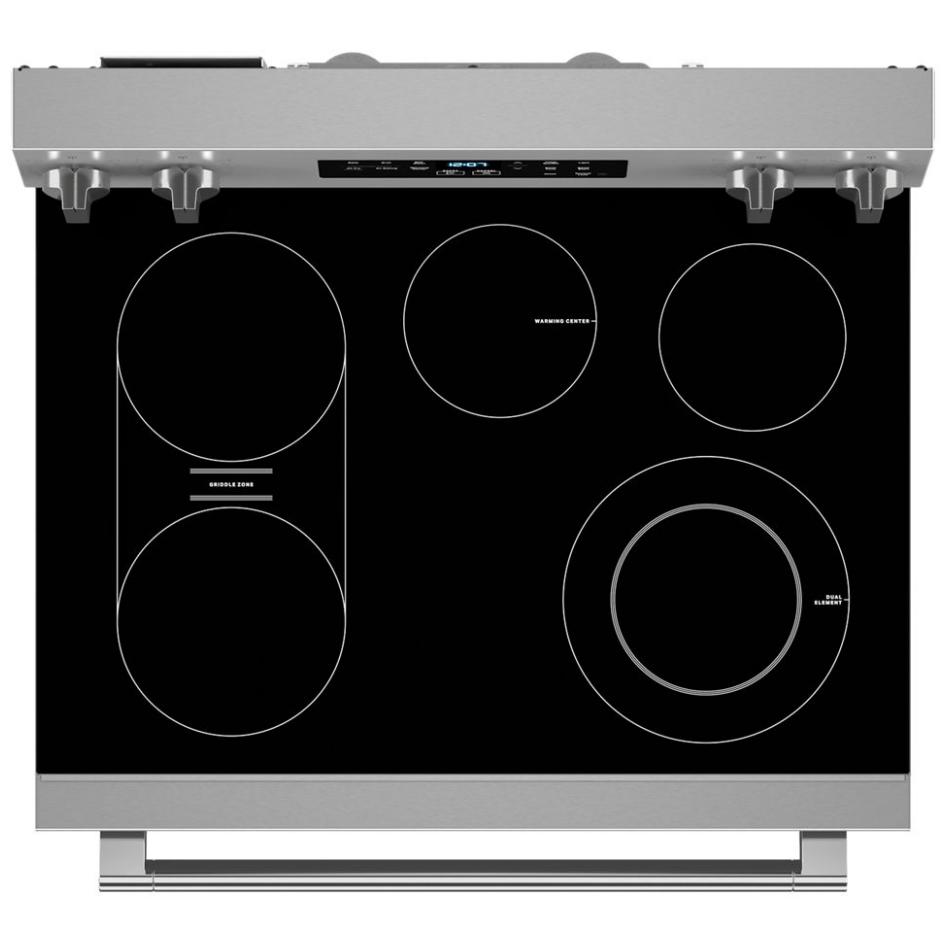

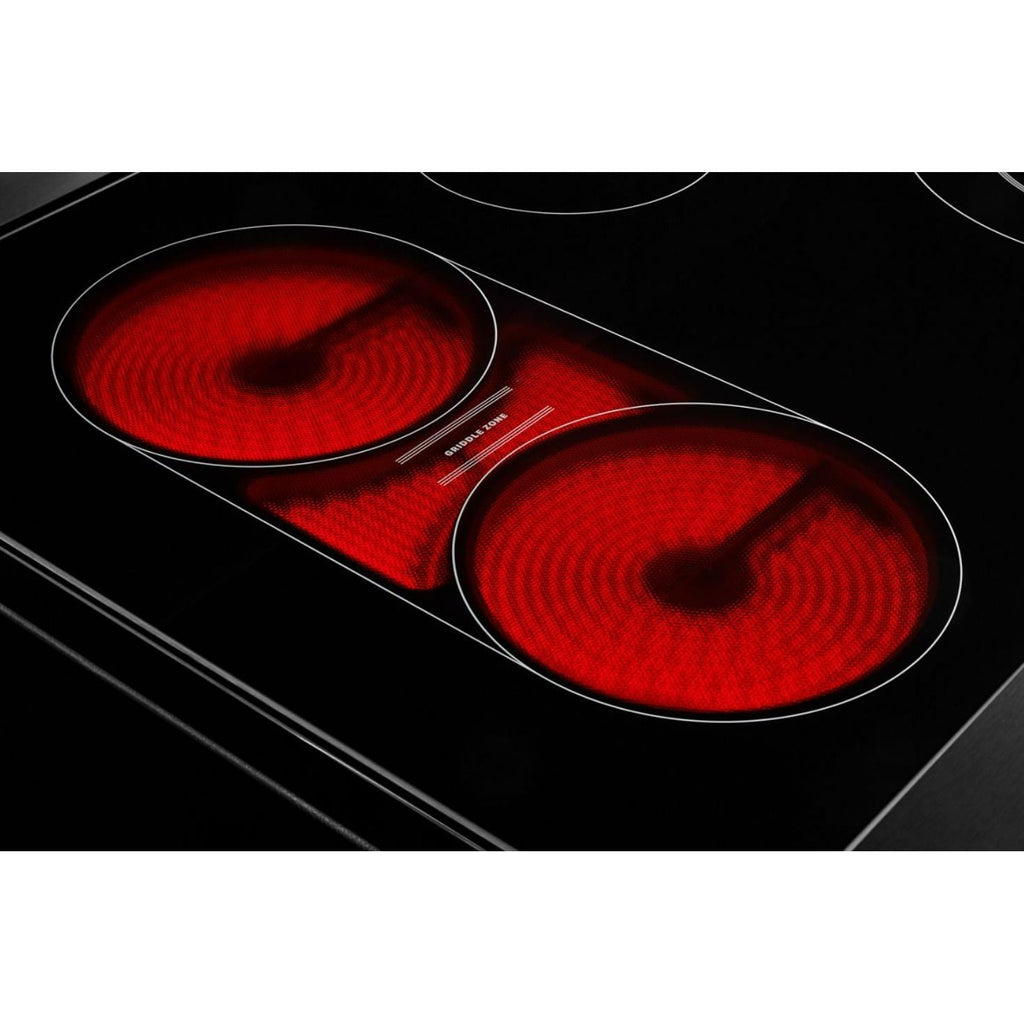

GRIDDLE ZONE
Turn your cooktop into a flat top by placing a Maytag® griddle* on the Griddle Zone. By combining two heating elements to create a larger surface, you can cook more food simultaneously. Whip up everything from pancakes to smash burgers to stir-fried vegetables from the convenience of your kitchen.
*Sold separately.
10-YEAR LIMITED PARTS WARRANTY ON THE GLASS COOKTOP, ELEMENTS AND CAVITY
With a 10-year limited parts warranty on the glass cooktop, elements and cavity, we built these ranges tough enough to keep cookin' for years.

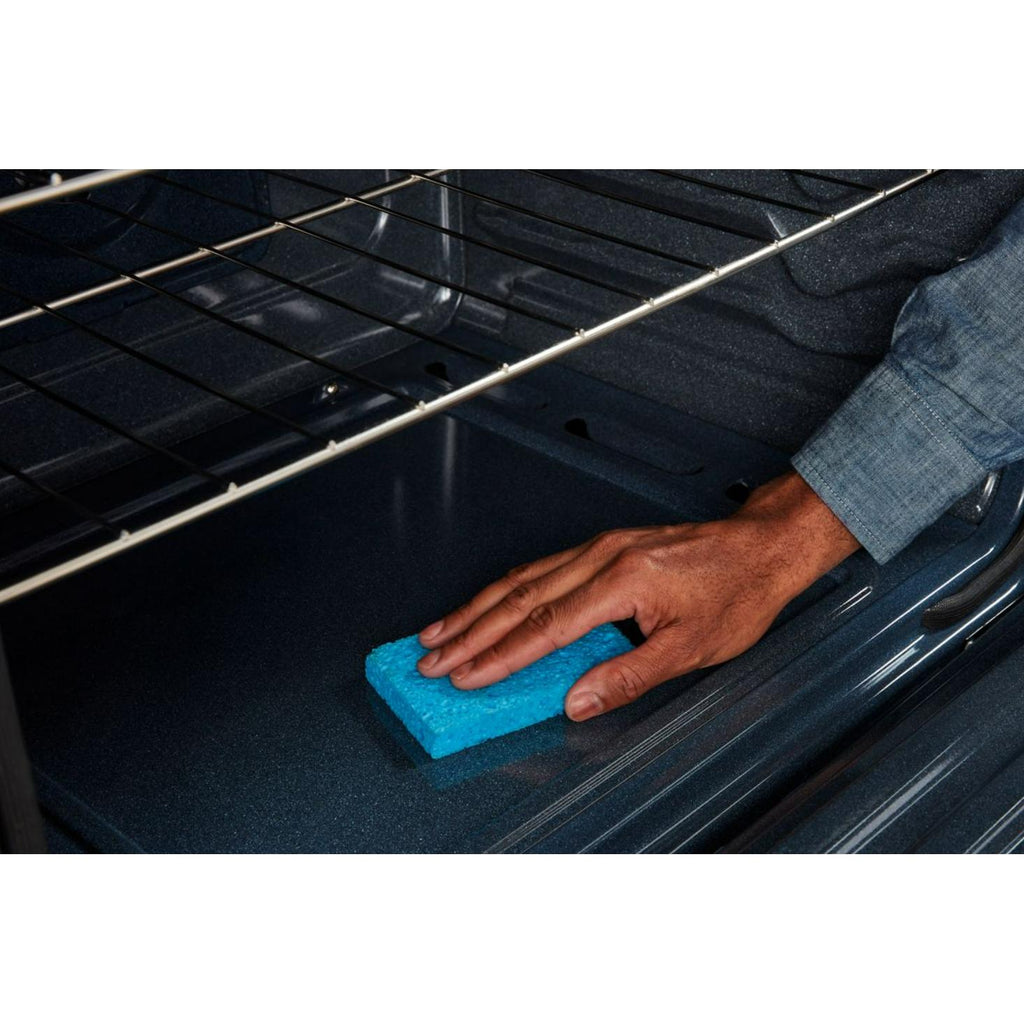

HIDDEN BAKE ELEMENT
The Hidden Bake Element is sealed under the oven floor to protect it from spills and drips.
WARMING CENTER
A warming center adds a dedicated cooktop zone to keep your finished food warm while you use the other elements to get the rest of your meal cooked.
VARIABLE BROIL
You won't need to dust off the grill to cook up a juicy steak. Variable broil brings the best results out of broiling with just the right temperatures for quick-cooking tasty cuts of meat, succulent sweet peppers and more. Adjust to high or low for a precise cook that'll get you sizzling faster than you can set the table.
DELAY BAKE SETTING
With the Delay Bake setting, just place your dishes in the oven and program when you want the baking to begin so your food is ready when you are.
Additional Features
HIGH TEMP SELF CLEAN
Fight the toughest baked-in foods in your oven with this high-heat, self-cleaning technology.

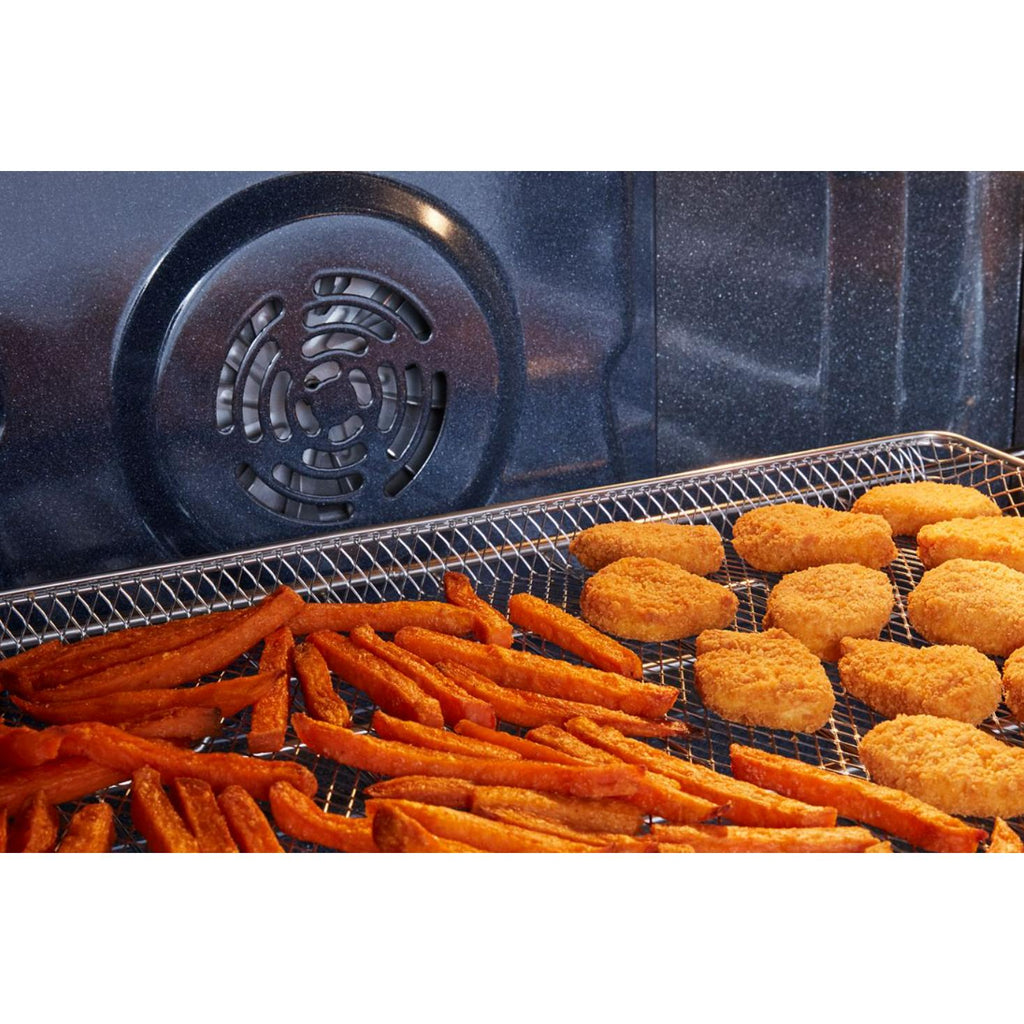

NO-PREHEAT AIR FRY
Strapped for time? No-Preheat Air Fry eliminates the preheat process and cooks fried foods fast—delivering a crispy-on-the-outside, juicy-on-the-inside taste using little to no additional oil.*
*Compared to traditional deep frying.
EDGE-TO-EDGE CERAMIC GLASS COOKTOP
The easy-to-clean, Edge-to-Edge Ceramic Glass Cooktop lets you easily wipe spills and splatters.

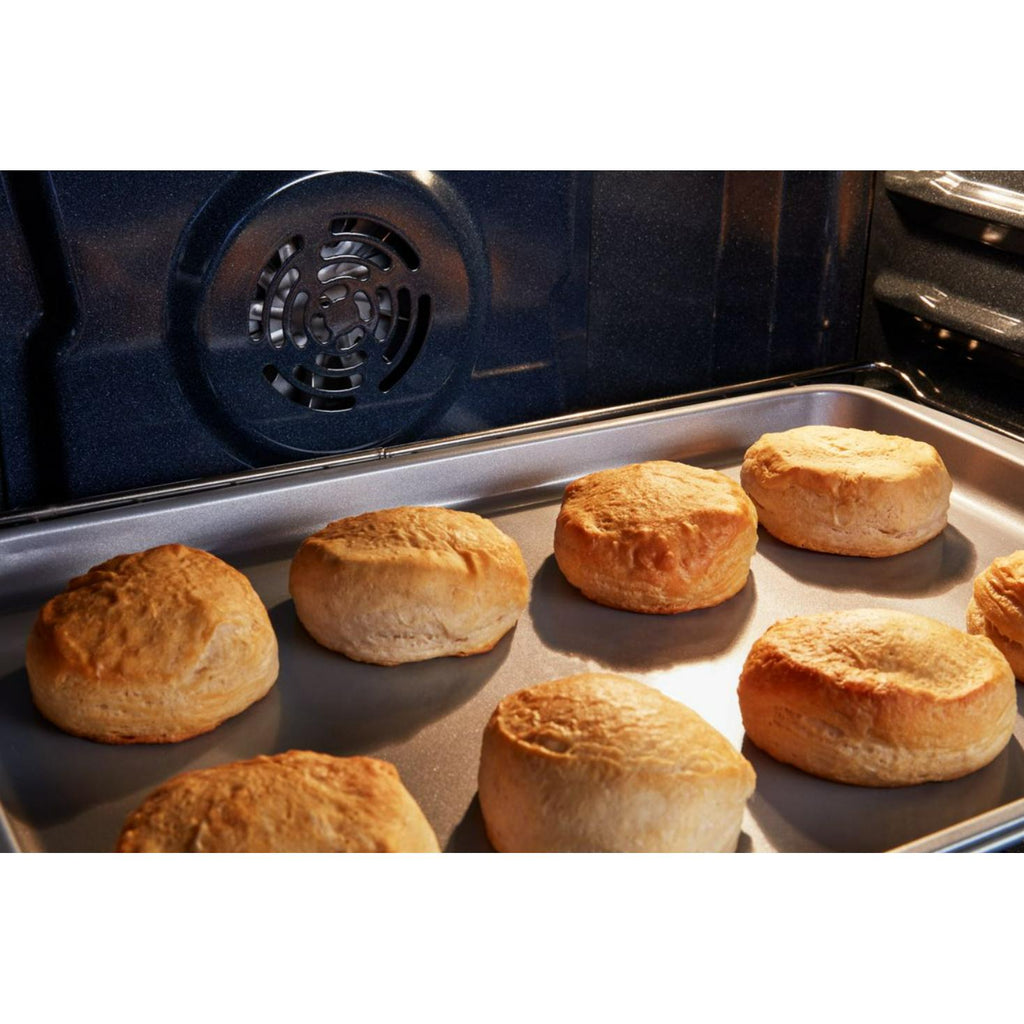

AIR POWERED CONVECTION

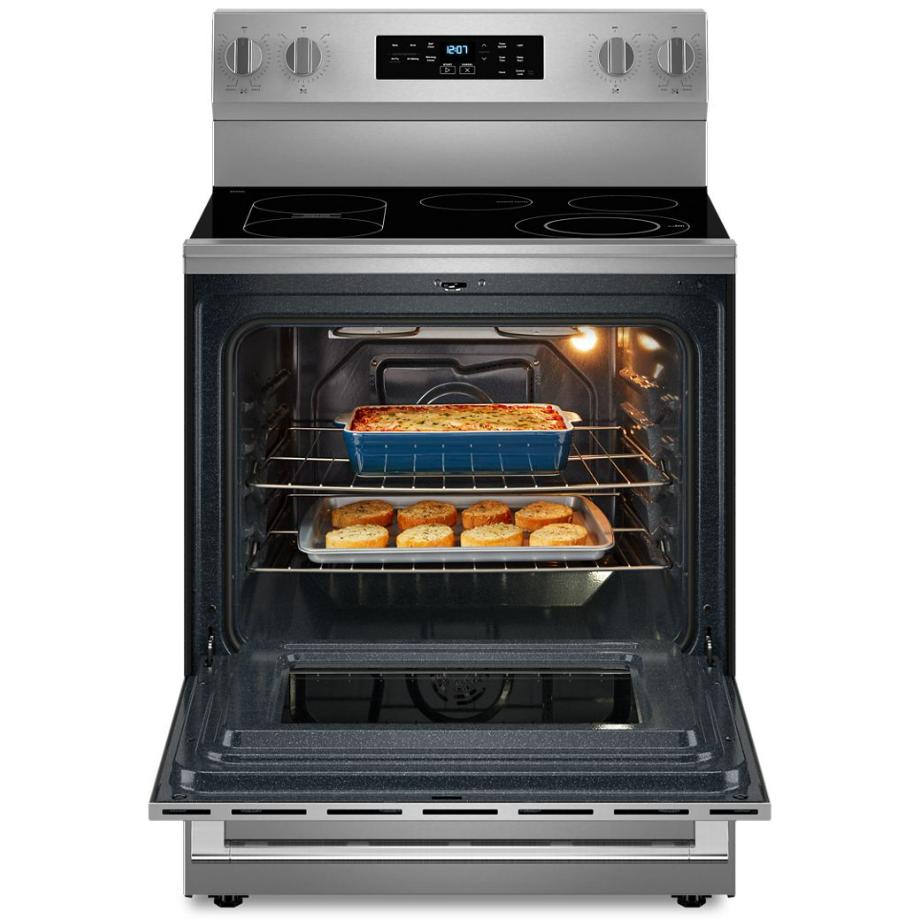

With two heating elements circulating hot air around the oven, Air Power Convection allows you to cook entire meals on every rack.
KEEP WARM™ SETTING
The Keep Warm™ setting uses low heat to keep food warm in your oven.
SPACIOUS STORAGE DRAWER
Store your most-used cookware in our spacious oven drawer. Fit up to 5 pots and pans including skillets, sauce pans, stockpot and more.
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Fingerprint Resistant Stainless Steel
Appliance Care
High Temp Self Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Center Rear Element-Burner Power: 100W
• Left Front Element-Burner Power: 1800W
• Left Rear Element-Burner Power: 1800W

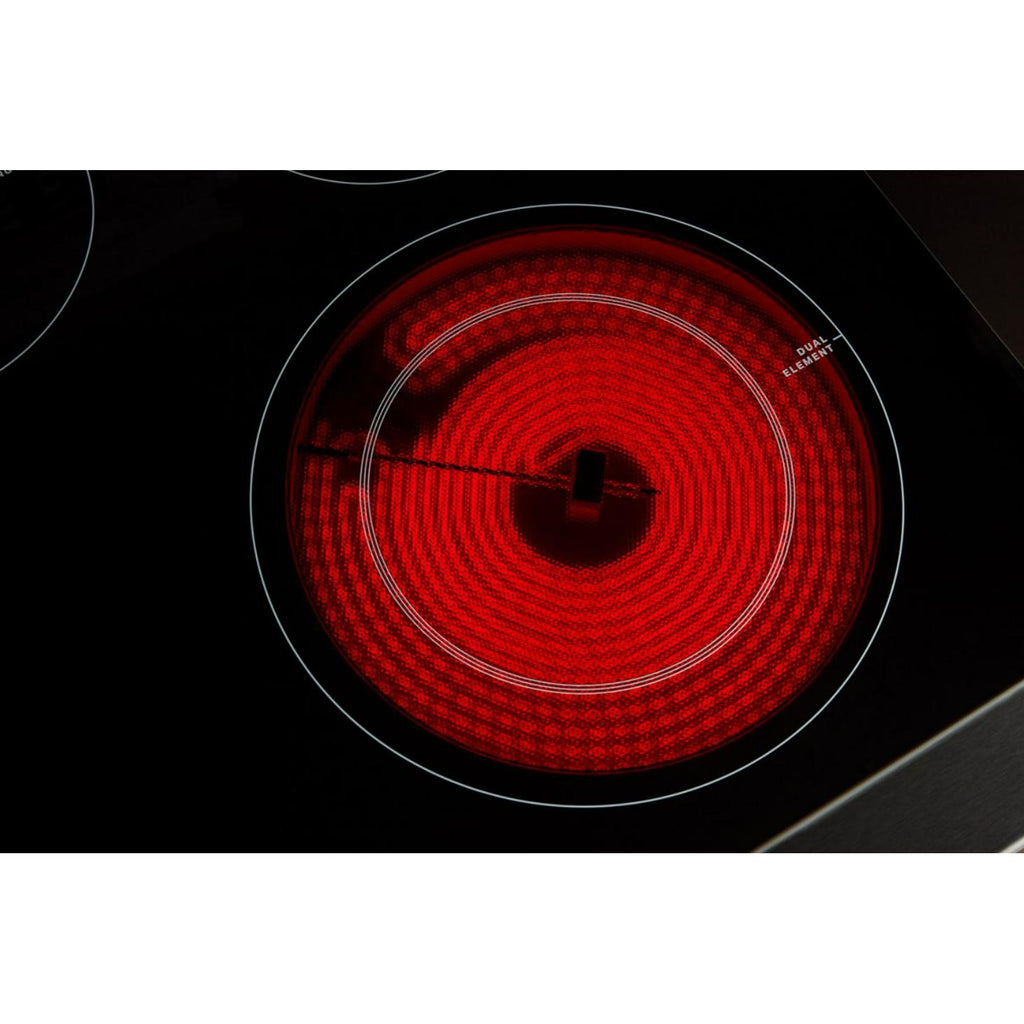

• Right Front Element-Burner Power: 3000W/1400W
• Right Rear Element-Burner Power: 1200W
• Left Front Element-Burner Power: 1800W
• Left Rear Element-Burner Power: 1800W
• Right Front Element-Burner Power: 3000W/1400W
• Right Rear Element-Burner Power: 1200W
Burner/Element Size
• Center Rear Element-Burner Size: 6in.
• Left Front Element-Burner Size: 8in.
• Left Rear Element-Burner Size: 8in.
• Right Front Element-Burner Size: 9in./6in.
• Right Rear Element-Burner Size: 6in.
• Left Front Element-Burner Size: 8in.
• Left Rear Element-Burner Size: 8in.
• Right Front Element-Burner Size: 9in./6in.
• Right Rear Element-Burner Size: 6in.
Elements
Smoothtop

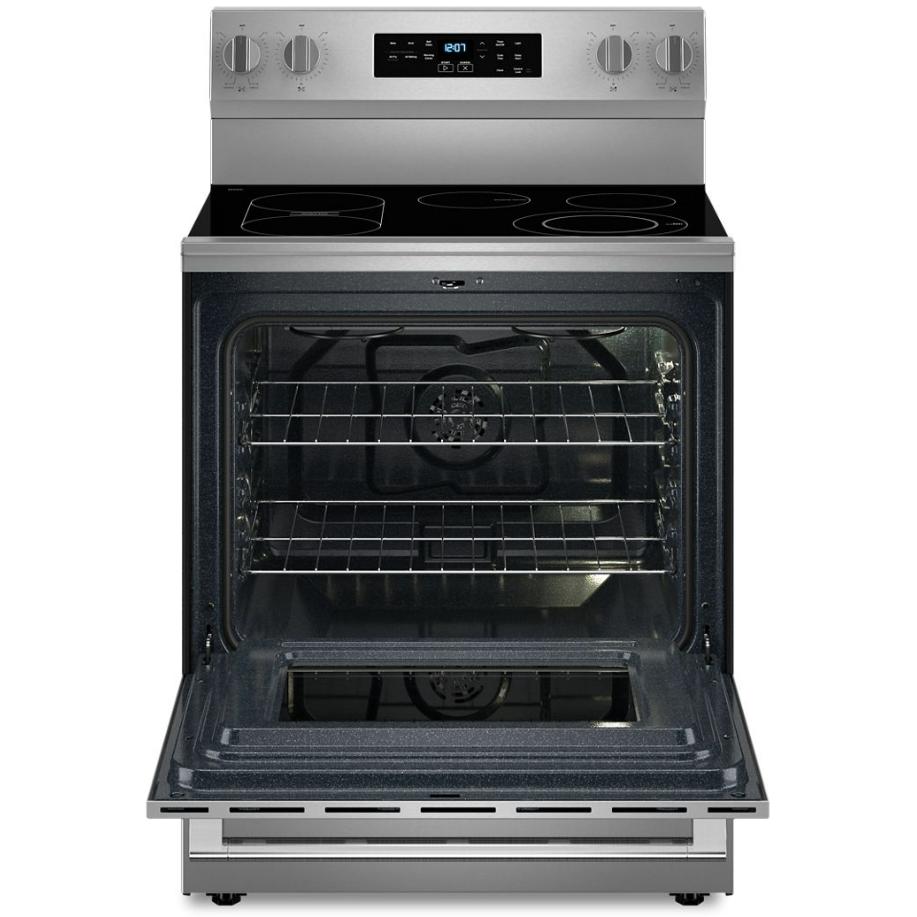

Oven
Capacity (cu. ft.)
5.3 cu. ft.
Number of Ovens
Single
Programs
Auto On, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Keep Warm/Warm Hold, No Preheat - Air Fry, Sabbath Mode, Self Clean, Start Time, Stop Time, Timer, Warm Zone
Features
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Bake Element Power: 2400W
• Broiler Element Power: 3400W
• Broiler Location: Top Center
• Convection Element Type: Single-Fan
• Door Removable
• Hidden Bake Element
• Interior Color: Grey
• Oven Light Type: Halogen
• Number of Oven Lights: 1
• Number of Oven Racks: 2
• Number of Rack Guides: 5
• Oven Cooking System: Thermal
• Handle Type: Reach-Through Handle

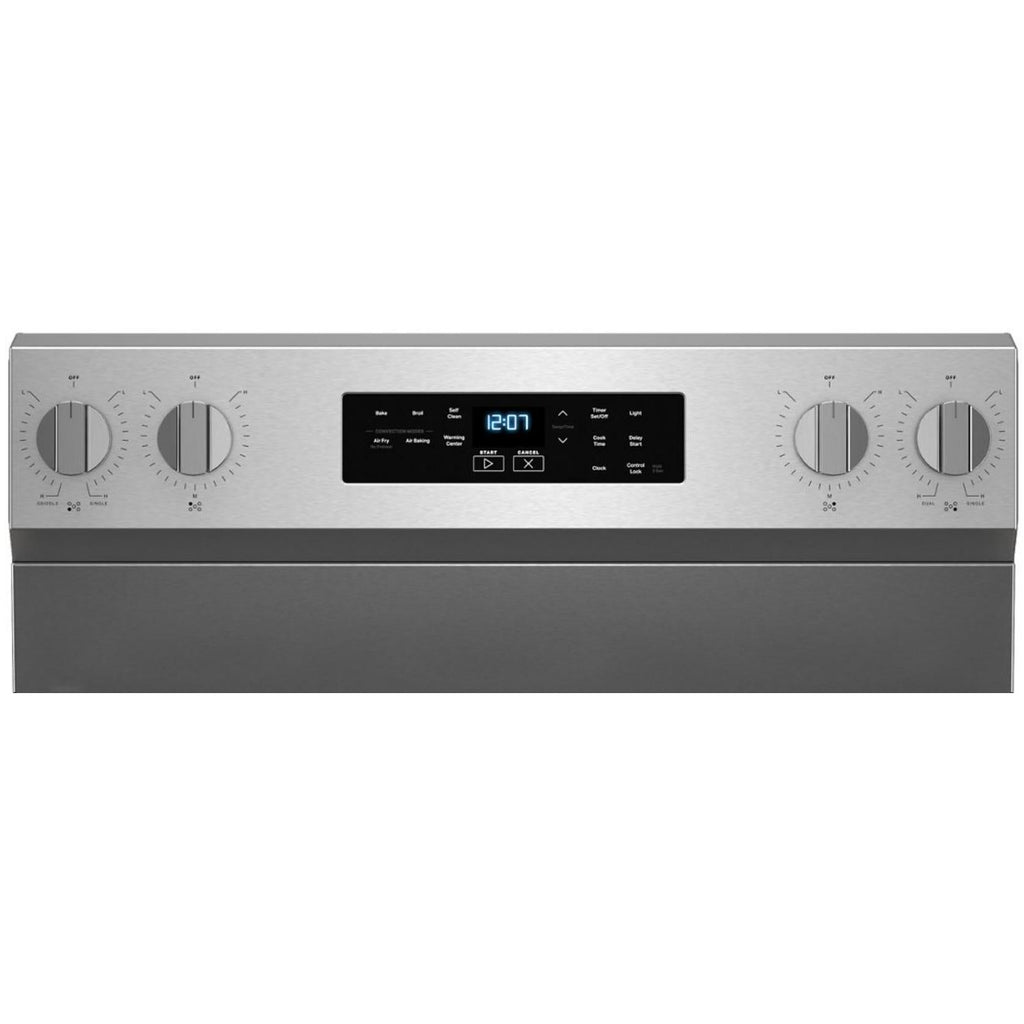

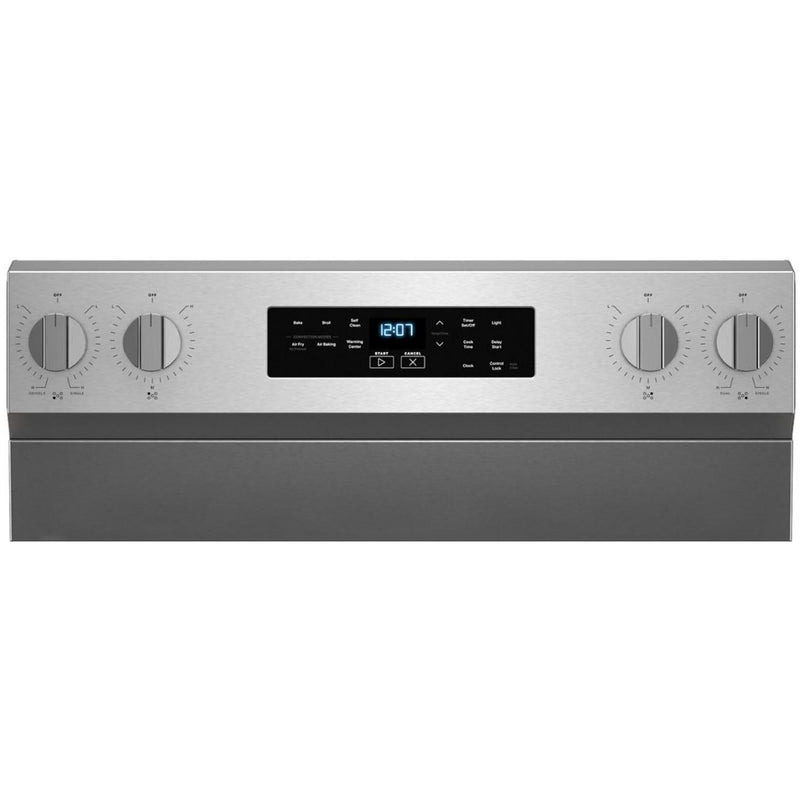

• Oven Control Type: Electronic Touch
• Oven Window Size: Medium
• Heating Element On Indicator Light
• Hot Surface Indicator Light
• Oven Automatic Shut-Off
• Power On Indicator Light
• Broiler Element Power: 3400W
• Broiler Location: Top Center
• Convection Element Type: Single-Fan
• Door Removable
• Hidden Bake Element
• Interior Color: Grey
• Oven Light Type: Halogen
• Number of Oven Lights: 1
• Number of Oven Racks: 2
• Number of Rack Guides: 5
• Oven Cooking System: Thermal
• Handle Type: Reach-Through Handle
• Oven Control Type: Electronic Touch
• Oven Window Size: Medium
• Heating Element On Indicator Light
• Hot Surface Indicator Light
• Oven Automatic Shut-Off
• Power On Indicator Light
Electrical Information
Information
Energy Ratings (kWh/year): 587
Certifications and Approvals
Sabbath/Star-K
Yes
Information
cUL
Accessories
Included
Power Cord
Optional
Griddle
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47.87 inch(es) / 121.60 cm
Depth (Without Handles)
25.31 inch(es) / 64.30 cm
Depth (Including Handles)
28 inch(es) / 71.12 cm
Weight
169.01 lb(s) / 76.66 kg
Additional Dimensions
• Cutout Depth: 60.96 cm, 24 in
• Cutout Height: 91.44 cm, 36 in
• Cutout Width: 76.20 cm, 30 in
• Depth With Door Open 90 Degree: 118.59 cm, 46-86/125 in
• Oven Interior Depth: 49.85 cm, 19-5/8 in
• Oven Interior Height: 48.58 cm, 19-1/8 in
• Oven Interior Width: 61.60 cm, 24-1/4 in
• Cutout Height: 91.44 cm, 36 in
• Cutout Width: 76.20 cm, 30 in
• Depth With Door Open 90 Degree: 118.59 cm, 46-86/125 in
• Oven Interior Depth: 49.85 cm, 19-5/8 in
• Oven Interior Height: 48.58 cm, 19-1/8 in
• Oven Interior Width: 61.60 cm, 24-1/4 in
Shipping Dimensions
Height
49 inch(es) / 124.46 cm
Depth
29 inch(es) / 73.66 cm
Weight
184.99 lb(s) / 83.91 kg
UPC
UPC#
883049683942
