Features
ADJUSTABLE RACKING SYSTEM
Clean even your tallest and most oversized items with ease with a flexible and easy to use design that allows for more space on the top rack. With the simple push of a lever you can fit more dishes, with enough space.

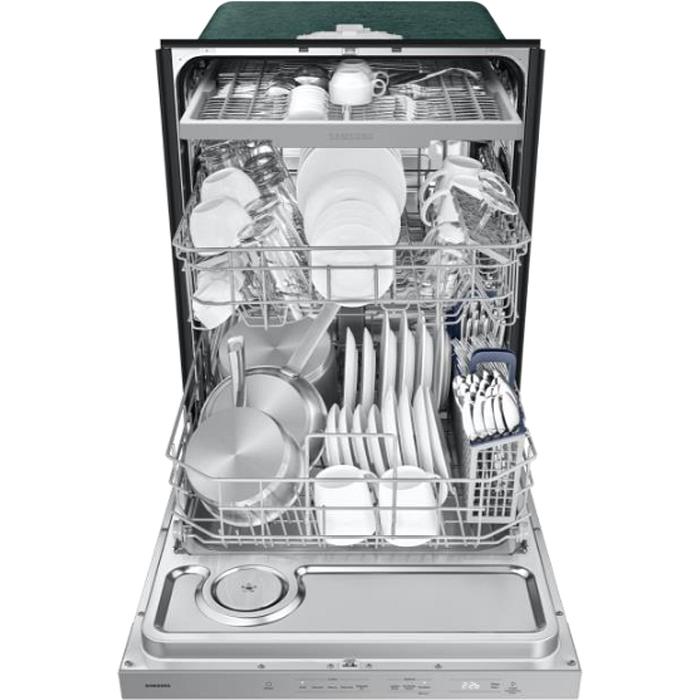

EXTRA SPACE TO FIT MORE - 3RD RACK
A convenient 3rd rack provides extra space to load small mugs, utensils and silverware. Frees up to 30% more space for other items, enabling you to load everything more efficiently.*
* Compared to Samsung two-rack models.
Additional Features
AUTO RELEASE™ DOOR
Door opens automatically at end of cycle to provide better and faster drying
Specifications
General
Series Name
5500 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
48 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Normal
• Auto
• Delicate
• Heavy
• Express 60'
• Auto
• Delicate
• Heavy
• Express 60'
Options
• Delay Start
• Half load
• Sanitize
• Hi-Temp Wash
• Half load
• Sanitize
• Hi-Temp Wash
Features
Technologies
Auto Release™ Door
3rd Rack System
Yes
Control Lock
Yes
Silverware Basket
Yes
Additional Information
• Cycle time: 105 min
• Upper Rack: Foldable cup shelves, Adjustable Height
• Leakage Sensor
• Number of Wash Arm: Upper/Mid/Low
• Cancel&Drain Button
• Upper Rack: Foldable cup shelves, Adjustable Height
• Leakage Sensor
• Number of Wash Arm: Upper/Mid/Low
• Cancel&Drain Button
Electrical Information
Information
• 225 kWh/year
• Electrical(Volts/Hertz/Amps): 120/60/15
• Heater: 1000W
• Circulation Motor: 60-100W
• Drain Pump: 35 W
• Electrical(Volts/Hertz/Amps): 120/60/15
• Heater: 1000W
• Circulation Motor: 60-100W
• Drain Pump: 35 W
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Dimensions
Class Width
24"
Width
23.9 inch(es) / 60.71 cm
Height (Min.)
33.9 inch(es) / 86.11 cm
Depth (Without Handle)
24.8 inch(es) / 62.99 cm
Weight
83.78 lb(s) / 38 kg
Additional Dimensions
• Enclosure (Min.): 24 x 24 x 34.13 in (W x D x H)
• Countertop Depth for a Flush Door (Min.): 25 in
• Countertop Depth for a Flush Door (Min.): 25 in
Shipping Dimensions
Weight
94.8 lb(s) / 43 kg
Warranty
Warranty
• 1 year parts and labour
• 5 years on the printed circuit board, racking, and stainless door liner and tub for leakage (parts only)
• 5 years on the printed circuit board, racking, and stainless door liner and tub for leakage (parts only)
UPC
UPC#
887276824857
