Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Satin, Stainless Steel
Place Settings
15
Tub Material
Stainless Steel
Silence Rating
40 dB
Cycle Information
Number of Cycles
10
Wash Cycles
• Auto
• Heavy
• Delicate
• Refresh
• Normal
• 1-Hour
• Download Cycle
• Machine Clean
• Rinse
• Express
• Heavy
• Delicate
• Refresh
• Normal
• 1-Hour
• Download Cycle
• Machine Clean
• Rinse
• Express
Options
• Flex Zone
• Steam
• High Temp
• Dry Boost
• Delay Start
• Control Lock
• Night Dry
• Remote Start
• Steam
• High Temp
• Dry Boost
• Delay Start
• Control Lock
• Night Dry
• Remote Start
Features
Technologies
• Wi-Fi Enabled for ThinQ® Control with iPhone / Android App
• PowerSteam® Technology
• QuadWash® Pro System
• Inverter Direct Drive™ Technology
• PowerSteam® Technology
• QuadWash® Pro System
• Inverter Direct Drive™ Technology
3rd Rack System
Yes
Filtration System
Yes
Additional Information
• Remote Monitoring
• LoDecibel™ Quiet Operation

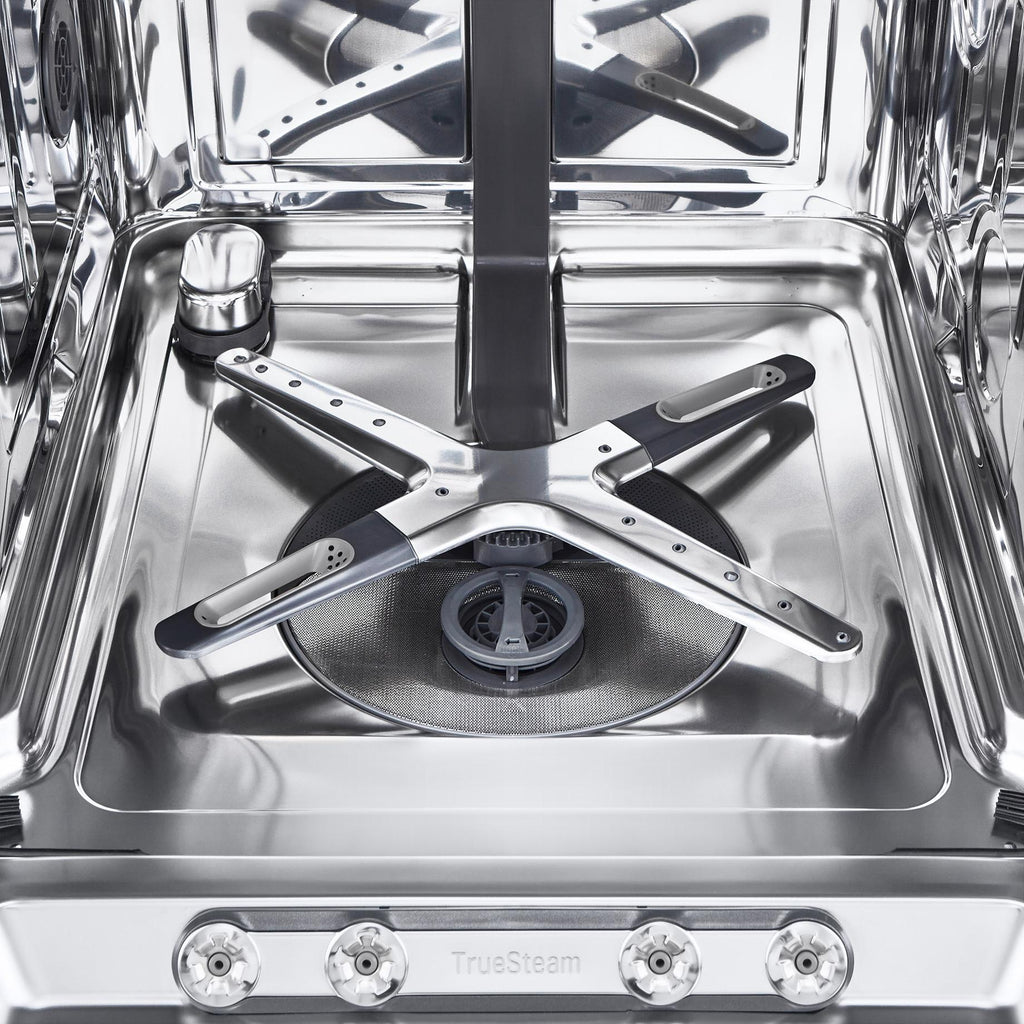

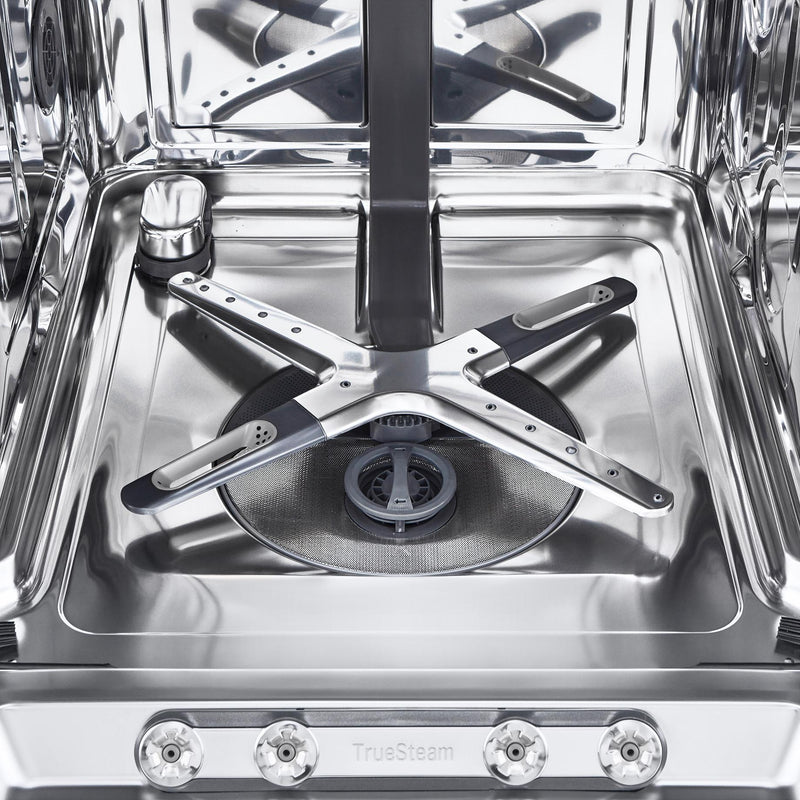

• Number of Spray Arms: 3 (Top, Upper, Lower)
• SenseClean™ Wash System
• Vario Wash
• Dynamic Heat Dry™
• Hidden Water Heater
• 3-Stage Filtration System
• End of Cycle Indicator: Beeper + END indication on Display

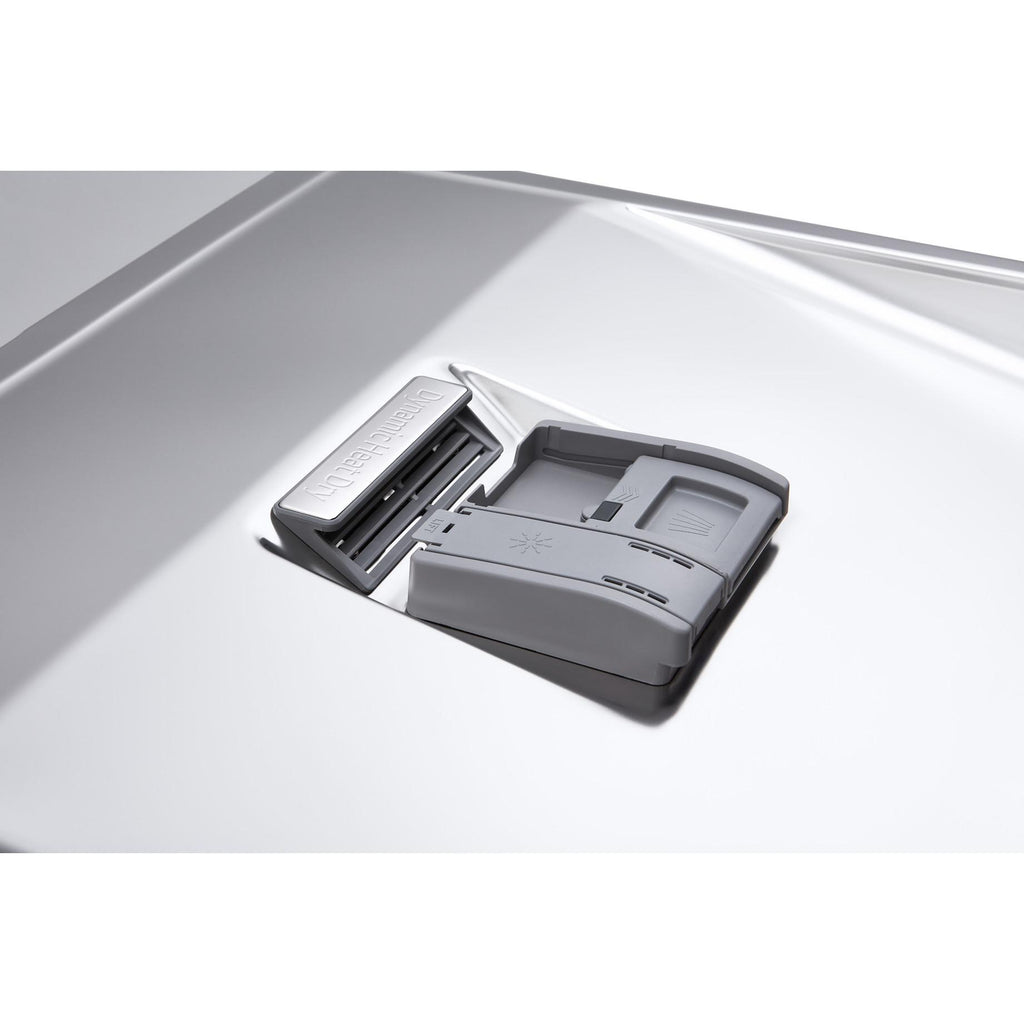

• Detergent and Rinse-Aid Dispenser
• Tub Light
• Handle Design: Transitional
• SignaLight™ Cycle Indicator Lights: 3
• Time Remaining Indicator: LED
• Tub Material: NeveRust™ Stainless Steel
• Balanced Door

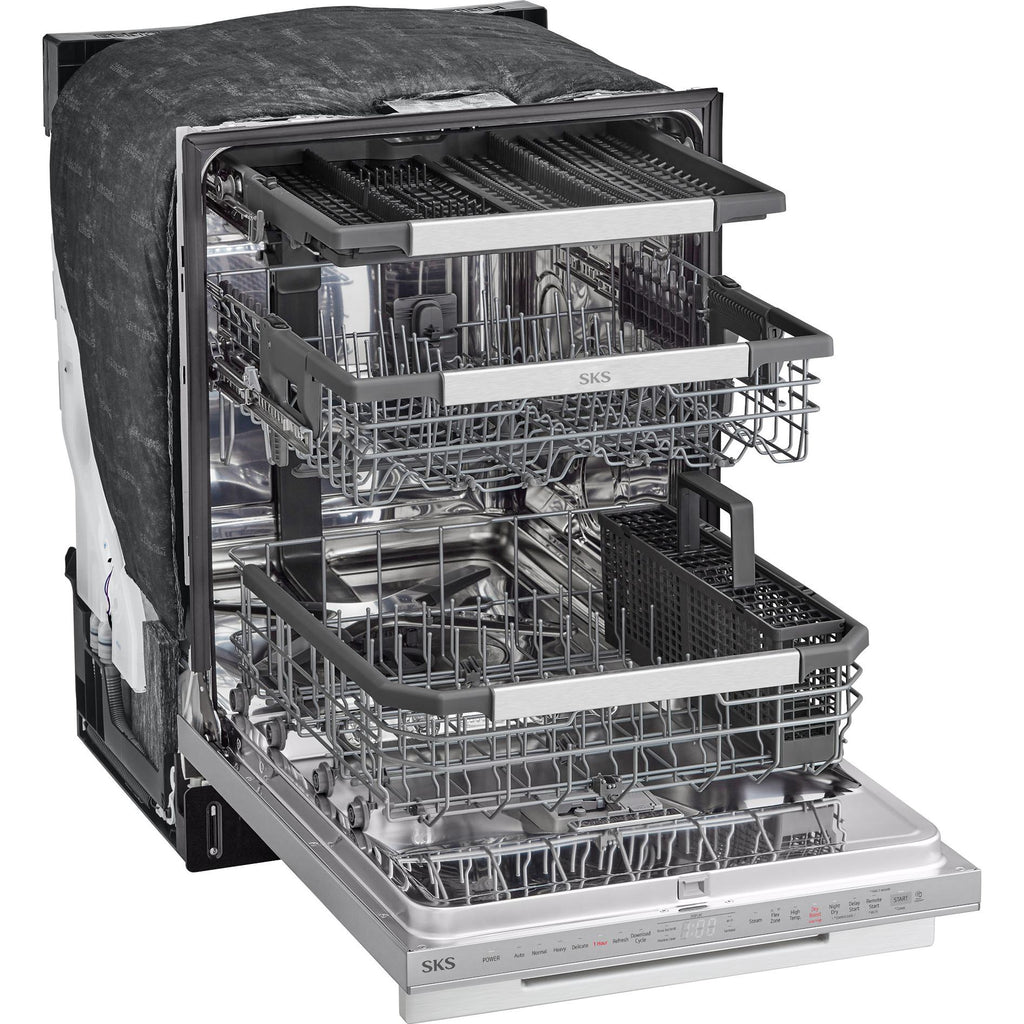

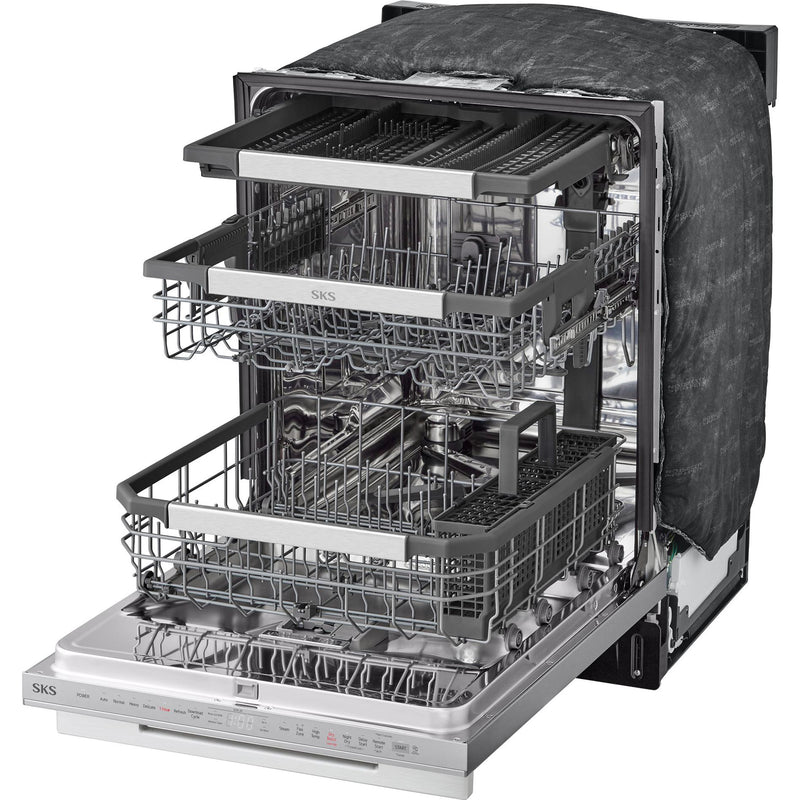

• EasyRack™ Plus System

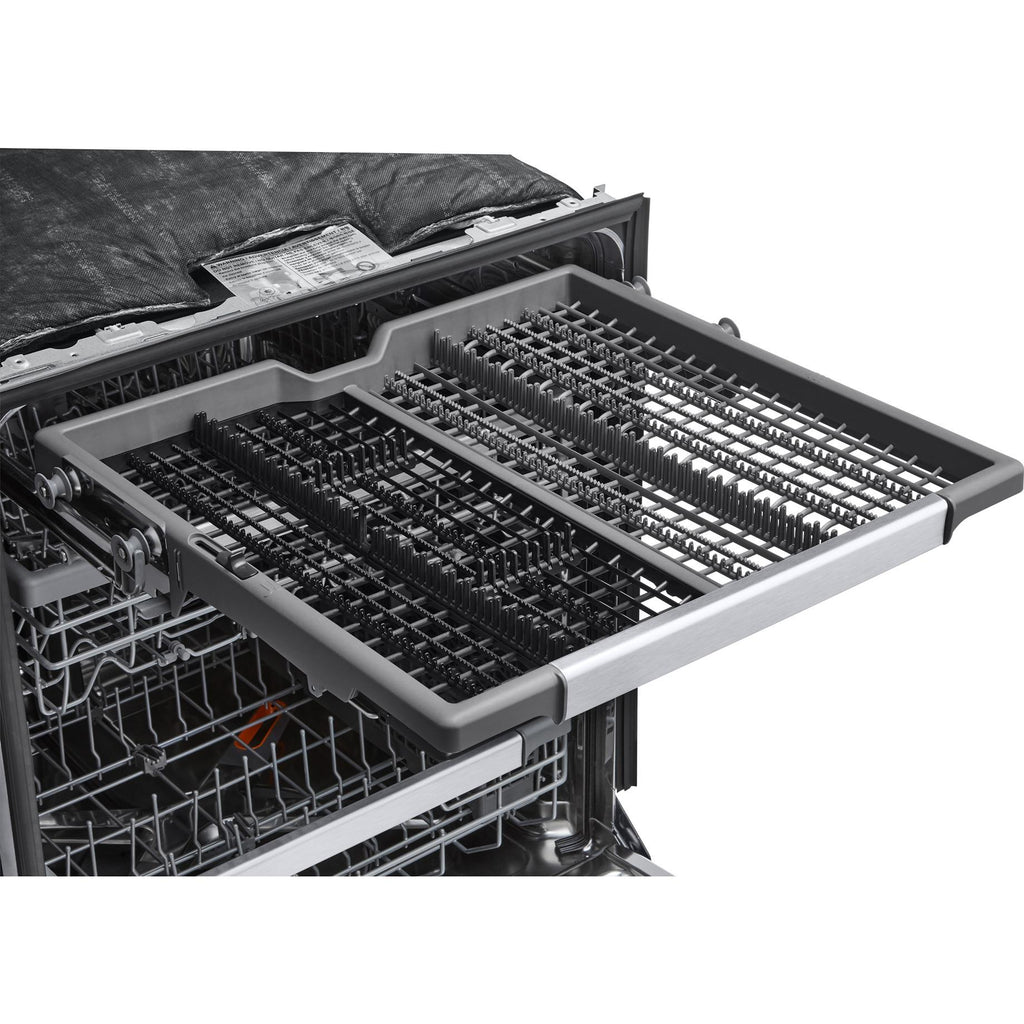

• Height-Adjustable 3rd Rack
• Height Adjustable Upper Rack
• Cutlery Baskets
• Cup Rack
• Stemware Holder
• Fold Down Tines: Full Fold, Upper / Lower
• BPA-Free Nylon Coated Racks / Tines
• Rack Handle : Upper / Lower
• Glide Rail: Yes (Upper)
• Wheel Bearing: Yes (Lower)
• CEE Tier Level: 1
• Water Use (Gallons/Cycle): 2.9
• Inlet Water Temperature: 120 °F min. -149 °F max.
• Water Pressure: 20 – 80 psi
• LoDecibel™ Quiet Operation
• Number of Spray Arms: 3 (Top, Upper, Lower)
• SenseClean™ Wash System
• Vario Wash
• Dynamic Heat Dry™
• Hidden Water Heater
• 3-Stage Filtration System
• End of Cycle Indicator: Beeper + END indication on Display
• Detergent and Rinse-Aid Dispenser
• Tub Light
• Handle Design: Transitional
• SignaLight™ Cycle Indicator Lights: 3
• Time Remaining Indicator: LED
• Tub Material: NeveRust™ Stainless Steel
• Balanced Door
• EasyRack™ Plus System
• Height-Adjustable 3rd Rack
• Height Adjustable Upper Rack
• Cutlery Baskets
• Cup Rack
• Stemware Holder
• Fold Down Tines: Full Fold, Upper / Lower
• BPA-Free Nylon Coated Racks / Tines
• Rack Handle : Upper / Lower
• Glide Rail: Yes (Upper)
• Wheel Bearing: Yes (Lower)
• CEE Tier Level: 1
• Water Use (Gallons/Cycle): 2.9
• Inlet Water Temperature: 120 °F min. -149 °F max.
• Water Pressure: 20 – 80 psi
Electrical Information
Information
• Energy Use (kWh/Year): 238 kWh/Year
• Required Power Supply: 120 V, 60 Hz, 15 Amp
• Required Power Supply: 120 V, 60 Hz, 15 Amp
Certifications and Approvals
Energy Star Certified
Yes
Dimensions
Width
23.75 inch(es) / 60.33 cm
Height (Min.)
33.63 inch(es) / 85.41 cm
Depth (Without Handle)
24.63 inch(es) / 62.55 cm
Depth (Including Handle)
26.81 inch(es) / 68.1 cm
Weight
97 lb(s) / 44 kg
Additional Dimensions
Depth with Door Open: 49-1/4"
Shipping Dimensions
Weight
110.01 lb(s) / 49.9 kg
Warranty
Warranty
• Limited Warranty, Parts & Labor : 3 Years
• Limited Warranty on Control Board, Rack Parts, and Stainless Steel Door, Liner or Tub, Parts Only: 5 Years
• Limited Warranty on Direct Drive Motor, Parts Only: 10 Years
• Limited Warranty on Control Board, Rack Parts, and Stainless Steel Door, Liner or Tub, Parts Only: 5 Years
• Limited Warranty on Direct Drive Motor, Parts Only: 10 Years
