Features

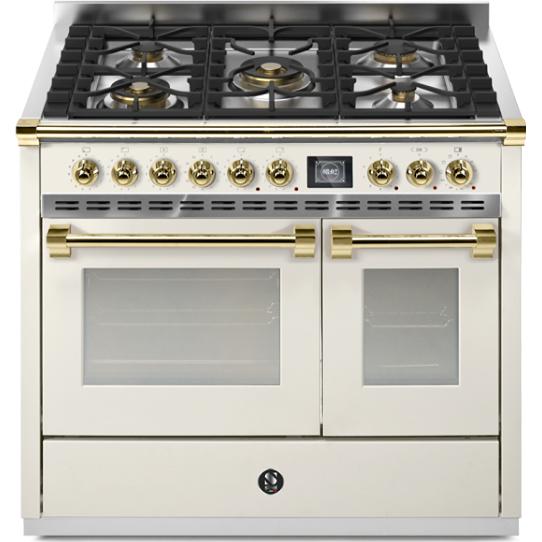

COMBI-STEAM OVEN
The Combi-Steam oven combines the best of traditional cooking with steam, allowing you to cook as you’ve always done but with better results. Thanks to this combined technology, it reduces preparation time and energy consumption, while keeping food juicier and more nutritious.
VENTILATION INNVENT
Our patended INNVENT system with double inverted rotation of the fans distributes heat evenly throughout the oven’s cavity, not only vertically on different levels, but also horizontally on each level, allowing impeccable and homogeneous cooking. Your oven door can remain closed all the cooking time, because you won’t have the need to rotate the tray halfway.
ADVANCED TFT DISPLAY
The advanced electronic programmer features a user-friendly TFT display and ensures precise temperature control throughout cooking. It offers 11 distinct cooking functions plus 2 special modes: proofing for perfect dough rising and steam cleaning for effortless maintenance. Preset recipes are included to guide you through various cooking methods with professional results.
Specifications
General
Series Name
Ascot
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Bisque
Manufacturer Color
Nuvola with Ottone Trim
Cooktop
Burners/Elements
5
Burners/Elements Output
• Total cooking zones: 5 burners
• Total cooktop (NG/LP): 53,700 / 41,800 BTU
• Simmer (NG/LP): 4,200 / 3,000 BTU
• Semi-rapid (NG/LP): 7,500 / 5,600 BTU
• Rapid (NG/LP): 11,500 / 9,500 BTU
• Mega-Wok (NG/LP): 17,000 / 11,100 BTU
• Total cooktop (NG/LP): 53,700 / 41,800 BTU
• Simmer (NG/LP): 4,200 / 3,000 BTU
• Semi-rapid (NG/LP): 7,500 / 5,600 BTU
• Rapid (NG/LP): 11,500 / 9,500 BTU
• Mega-Wok (NG/LP): 17,000 / 11,100 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
• Total capacity: 3.9 cu. ft.
• Large oven: 2.5 cu. ft.
• Small oven: 1.4 cu. ft.
• Large oven: 2.5 cu. ft.
• Small oven: 1.4 cu. ft.
Number of Ovens
Double
Programs
• Defrost
• Static
• Upper element
• Static steam
• Grill
• Ventilated grill
• Fan steam
• Convection
• Fast heating
• Proof
• Static
• Upper element
• Static steam
• Grill
• Ventilated grill
• Fan steam
• Convection
• Fast heating
• Proof
Features
Technologies
• Convection Technology
• Patented INNVENT System
• Combi-Steam
• Patented INNVENT System
• Combi-Steam
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Type of grate: Enameled cast iron
• Knob/handle material: Metal
• Interior light: 2 + 1
• Kitchen timer
• Advanced TFT display
• Soft closing hinges: Door closes smoothly without slamming
• Full extension telescopic rack rails for easy access to oven cavity
• Removable dishwasher-safe stainless steel oven liners
• Main oven performance:
• Bake/Broil element: 850 + 1900 W
• Convection element: 2100 W
• Lower element: 1200 W
• Side oven performance:
• Bake/Broil element: 1200 + 500 W
• Lower element: 900 W
• Knob/handle material: Metal
• Interior light: 2 + 1
• Kitchen timer
• Advanced TFT display
• Soft closing hinges: Door closes smoothly without slamming
• Full extension telescopic rack rails for easy access to oven cavity
• Removable dishwasher-safe stainless steel oven liners
• Main oven performance:
• Bake/Broil element: 850 + 1900 W
• Convection element: 2100 W
• Lower element: 1200 W
• Side oven performance:
• Bake/Broil element: 1200 + 500 W
• Lower element: 900 W
Electrical Information
Information
• Circuit breaker: 20 A
• Voltage: 120 / 240 V
• Frequency: 60 Hz
• Power cord length: 4’
• Plug type: NEMA 50-14P
• Voltage: 120 / 240 V
• Frequency: 60 Hz
• Power cord length: 4’
• Plug type: NEMA 50-14P
Dimensions
Class Width
40"
Width
39.37 inch(es) / 100.0 cm
Height
37.28 inch(es) / 94.7 cm
Depth (Without Handles)
23.54 inch(es) / 59.8 cm
Weight
269.01 lb(s) / 122.02 kg
Additional Dimensions
• Overall dimensions (W x H x D): 39 5/16” (100 cm) x 35 7/16” (90 cm) x 25 3/4” (65.5 cm)
• Adjustable height range: 35 7/16” (90 cm) min – 36 7/32” (92 cm) max
• Main oven interior size (W x H x D): 18 19/64” (46.5 cm) x 13 25/32” (35 cm) x 16 59/64” (43 cm)
• Side oven size (W x H x D): 10 15/64” (26 cm) x 13 25/32” (35 cm) x 16 59/64” (43 cm)
• Adjustable height range: 35 7/16” (90 cm) min – 36 7/32” (92 cm) max
• Main oven interior size (W x H x D): 18 19/64” (46.5 cm) x 13 25/32” (35 cm) x 16 59/64” (43 cm)
• Side oven size (W x H x D): 10 15/64” (26 cm) x 13 25/32” (35 cm) x 16 59/64” (43 cm)
