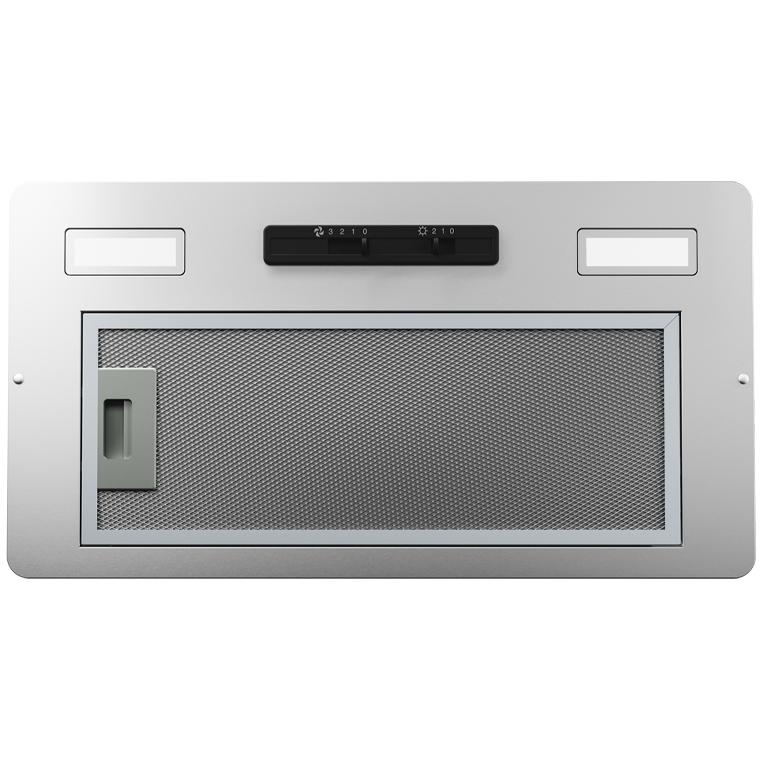

Zephyr 21-inch Tornado Mini Insert Hood AK8400BS-ES

ZephyrSKU: AK8400BSES
The Tornado Mini ENERGY STAR® power pack is designed with energy efficiency and versatility in mind. This ENERGY STAR®-certified insert... The Tornado Mini ENERGY STAR® power pack is designed with energy efficiency and versatility in mind. This ENERGY STAR®-certified insert has a small footprint that fits under the standard 12” cabinet depth — or choose one of our optional, adjustable-depth, stainless steel liners to accommodate custom hood enclosures from 17-1/2” to 20-1/2” deep. Features include dual-level LumiLight LED lights and an ultra-quiet 290-CFM blower controlled by 3-speed mechanical slide controls. View more
Save $160.00 Price:
$499.00 $659.00
warranty product

Please select a warranty option

Avis sur la garantie légale

Specifications Documents
Specifications
General
Series Name
• Core Collection
• Tornado Mini
Blower Included
Yes
Airflow
290 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Ducting Information
Vertical Internal Blower: 6" Round
Speeds
• Speed Levels: 3
• Blower CFM (Min. - Max.): 190 - 290
• Sones (Min. - Max.): 2 - 4.5
Additional Information
• Controls: Mechanical Slide
• Lighting: LumiLight LED, 7W x2
• Dual-Level Lighting
• Filters: Aluminum Mesh x1
• Recirculating Option
Electrical Information
Information
120V, 60Hz at Max. 1A
Certifications and Approvals
Energy Star Certified
Yes
Information
cULus
Accessories
Optional
• 30" Liner (17-1/2" - 20-1/2" Depth): AK0840AS
• 36" Liner (17-1/2" - 20-1/2" Depth): AK0846AS
Dimensions
Class Width
21"
Width
20.56 inch(es) / 52.23 cm
Height
9.69 inch(es) / 24.61 cm
Depth
11 inch(es) / 27.94 cm
Additional Dimensions
• Mounting height range from electrical cooktop: 20" - 36"
• Mounting height range from gas cooktop: 24" - 36"
Warranty
Warranty
• 1-Year warranty on labor
• 3-Years warranty on parts
UPC
UPC#
646328011597
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
Additional Documents
