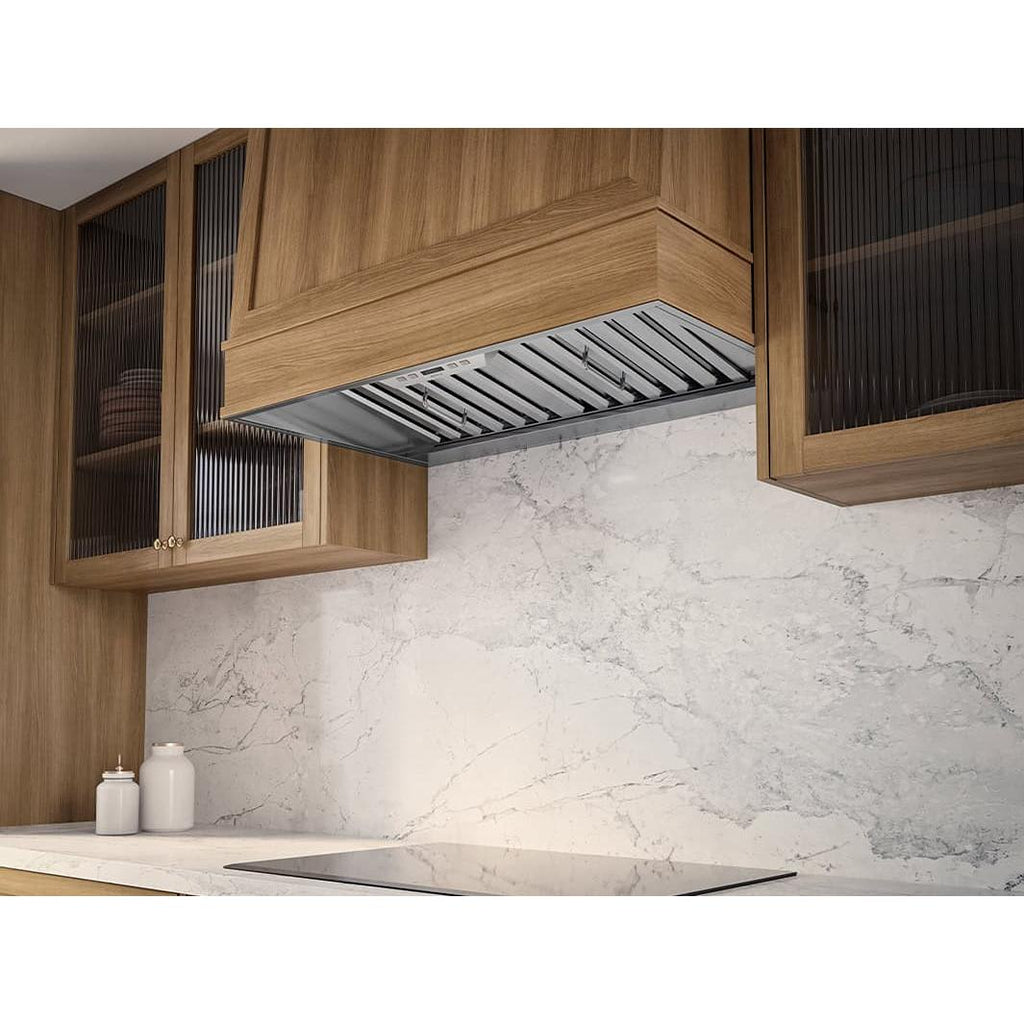

Zephyr 36-inch Monsoon I Series Hood Insert AK9234CS-CA IMAGE 1

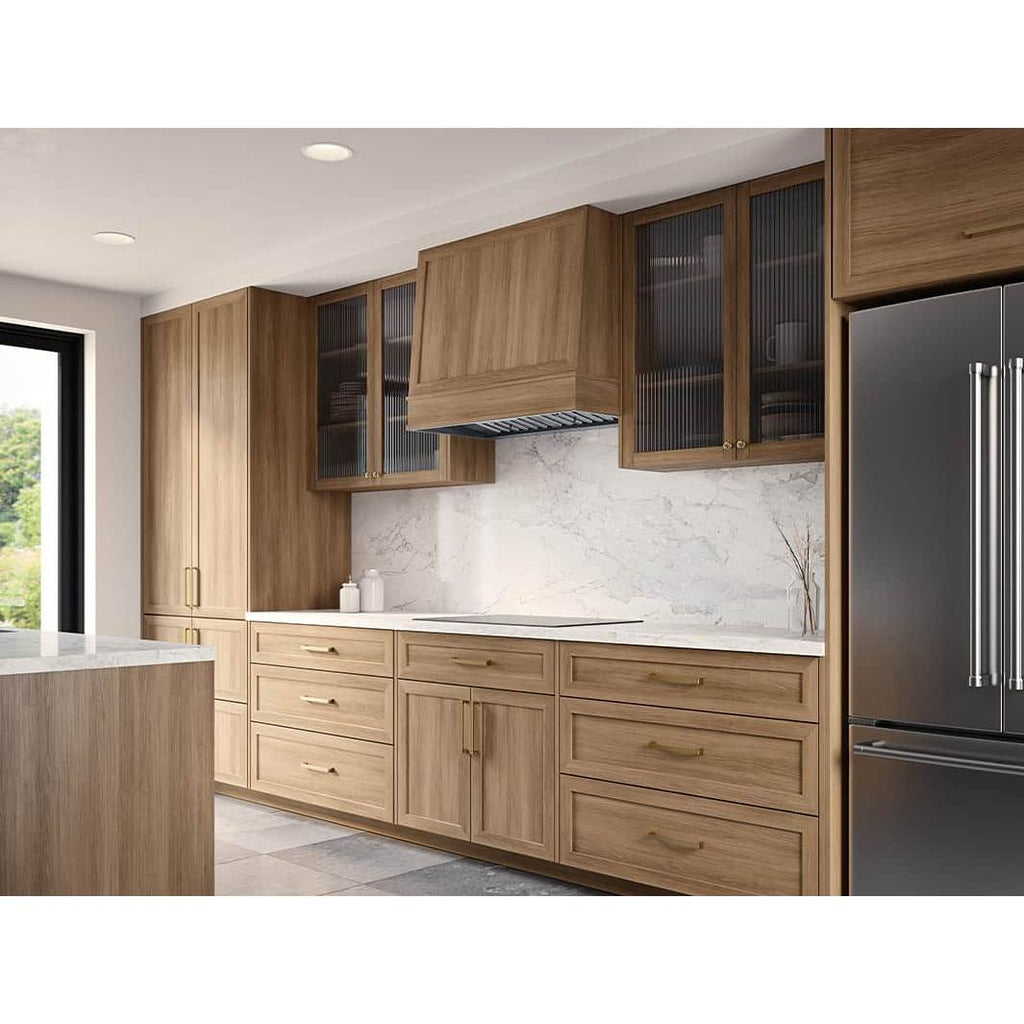

Zephyr 36-inch Monsoon I Series Hood Insert AK9234CS-CA IMAGE 2

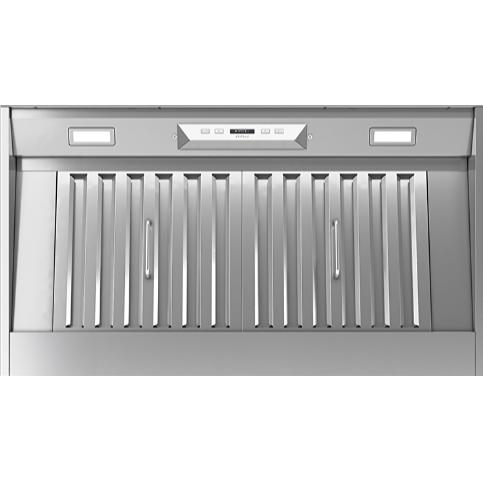

Zephyr 36-inch Monsoon I Series Hood Insert AK9234CS-CA IMAGE 3
Roll over image to zoom in Click on image to zoom
Zephyr 36-inch Monsoon I Series Hood Insert AK9234CS-CA IMAGE 1
Zephyr 36-inch Monsoon I Series Hood Insert AK9234CS-CA IMAGE 2
Zephyr 36-inch Monsoon I Series Hood Insert AK9234CS-CA IMAGE 3

Zephyr 36-inch Monsoon I Series Hood Insert AK9234CS-CA

Zephyr Model: AK9234CS-CA
Monsoon I has taken the one-piece liner to the next level. Featuring dual-level LumiLight LED lighting with TruHue™ that lets... Monsoon I has taken the one-piece liner to the next level. Featuring dual-level LumiLight LED lighting with TruHue™ that lets you customize the ambiance from warm to cool (2700K to 5000K) with just a touch. An optional ADA-compliant wireless remote allows you to easily control Monsoon I without ever reaching over a dangerous cooking surface. Equipped with new 5-speed electronic LCD controls, pro baffle filters, our exclusive ACT™ technology and either a powerful 650-CFM blower or the option to upgrade to a 1,200-CFM blower. CA Model View more
Financing available Financing
Rebate Available
Price:
$2,489.00
warranty product
Avis sur la garantie légale et loi 29 garantie de disponibilité
Features Specifications Documents
Features
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
ACT™ CONTROL TECHNOLOGY
Additional Features
TEMPGUARD™
TempGuard™ is a built-in safety feature that senses excessive heat. The fan speed will automatically adjust to high when the internal temperature exceeds 130°F.
TRUHUE™
TruHue™ A bright idea: customize your hood’s light to harmonize with the rest of your kitchen’s lighting at the touch of a button—from 2700K, 3000K, 3500K, 4000K to 5000K.
OPTIONAL TRIM KIT
The trim kit consists of four pieces that secure to the front, back, and sides of the insert. The back trim piece will not be used in installations where the insert is installed flush against the wall or if the thickness of the cabinet back panel is less than 1/2”.
Specifications
General
Series Name
Monsoon I
Blower Included
Yes
Airflow
650 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Technologies
• LumiLight LED Lighting with TruHue™
• TempGuard™
• Airflow Control Technology™ (ACT™)
Ducting Information
• Vertical Single Internal Blower: 8" Round
• Horizontal Single Internal Blower: 8" Round
Speeds
5 Speeds **When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 3 speeds and ACT 290 CFM = 2 speeds.
Additional Information
• Blower CFM (Min. - Max.): 200 - 650 CFM
• Sones (Min. - Max.): 1 - 7 Sones
• ACT 390 CFM (Min. - Max.): 200 - 390 CFM
• ACT 290 CFM (Min. - Max.): 200 - 290 CFM
• Auto Delay-Off
• CleanAir Function
• Lighting: LumiLight LED, 6W x 2
• Dual-Level Lighting
• Filters: Pro Baffle x 2
• Grease Collection Tray
Electrical Information
Information
120V, 60Hz at Max. 5A
Certifications and Approvals
Hvi Certified
Yes
Information
ADA Compliant: Yes, with remote accessory
Accessories
Optional
• Wireless Remote Control Kit: RC-0002
• Make-Up Air Kit (single blower): MUA008A
• Dual Internal Blower: PBD-1200B (Vertical Dual Internal Blower, 10" Round)
• Make-Up Air Kit (dual blower): MUA010A
Dimensions
Class Width
36"
Width
34.61 inch(es) / 87.9 cm
Height
12 inch(es) / 30.48 cm
Depth
19.33 inch(es) / 49.1 cm
Additional Dimensions
• Mounting Height Range: 24" - 36"
• Mounting Height: Distance between the top of a 36" tall cooking surface and bottom of hood
Warranty
Warranty
• 3 Years Parts
• 1 Year Labor
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
