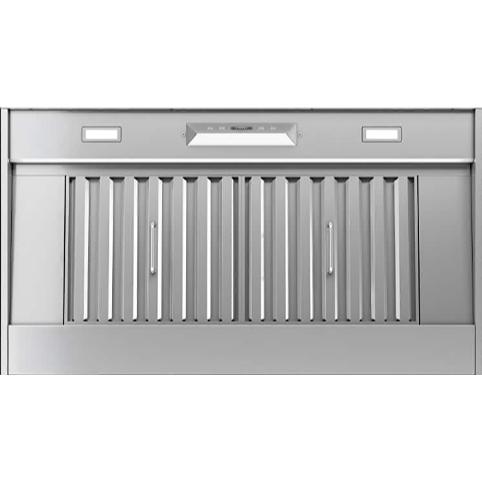

Zephyr 42-inch Monsoon II Series Hood Insert AK9340CS-CA IMAGE 1
Roll over image to zoom in Click on image to zoom
Zephyr 42-inch Monsoon II Series Hood Insert AK9340CS-CA IMAGE 1

Zephyr 42-inch Monsoon II Series Hood Insert AK9340CS-CA

Zephyr Model: AK9340CS-CA
Now available with LumiLight LED lighting with TruHue™ that lets you customize the ambiance from warm to cool (2700K to... Now available with LumiLight LED lighting with TruHue™ that lets you customize the ambiance from warm to cool (2700K to 5000K) with just a touch, Monsoon II delivers even more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or an enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look, while the new 5-speed electronic LCD controls, optional wireless remote control, and exclusive ACT™ technology give the homeowner more than they expected. CA Model View more
Financing available Financing
Rebate Available
Price:
$2,739.00
warranty product
Avis sur la garantie légale et loi 29 garantie de disponibilité
Features Specifications Documents
Features
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
ACT™ CONTROL TECHNOLOGY
Additional Features
OPTIONAL TRIM KIT
The trim kit consists of four pieces that secure to the front, back, and sides of the insert. The back trim piece will not be used in installations where the insert is installed flush against the wall or if the thickness of the cabinet back panel is less than 1/2”.
TEMPGUARD™
TempGuard™ is a built-in safety feature that senses excessive heat. The fan speed will automatically adjust to high when the internal temperature exceeds 130°F.
TRUHUE™
TruHue™ A bright idea: customize your hood’s light to harmonize with the rest of your kitchen’s lighting at the touch of a button—from 2700K, 3000K, 3500K, 4000K to 5000K.
Specifications
General
Series Name
Monsoon II
Blower Included
Yes
Airflow
650 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Technologies
• Airflow Control Technology™ (ACT™)
• TempGuard™
• TruHue™
Ducting Information
• Vertical Single Internal Blower: 8" Round
• Horizontal Single Internal Blower: 8" Round
Speeds
5 Speeds - When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 3 speeds and ACT 290 CFM = 2 speeds.
Additional Information
• Blower CFM (Min. - Max.): 200 - 650 CFM
• Sones (Min. - Max.): 1 - 7 Sones
• ACT 390 CFM (Min. - Max.): 200 - 390 CFM
• ACT 290 CFM (Min. - Max.): 200 - 290 CFM
• Controls: Electronic LCD
• Auto Delay-Off
• CleanAir Function
• Lighting: LumiLight LED, 6W x 2
• Dual-Level Lighting
• Filters: Pro Baffle x 2
• Grease Collection Tray
Electrical Information
Information
120V, 60Hz at Max. 5A
Certifications and Approvals
Information
ADA Compliant: Yes, with remote accessory
Accessories
Optional
• Wireless Remote Control Kit: RC-0002
• Dual Internal Blower: PBD-1200B - Vertical Dual Internal Blower: 10" Round
• Make-Up Air Kit (single blower): MUA008A
• Make-Up Air Kit (dual blower): MUA010A
Dimensions
Class Width
42"
Width
40.39 inch(es) / 102.6 cm
Height
12 inch(es) / 30.48 cm
Depth
22.5 inch(es) / 57.15 cm
Additional Dimensions
Mounting Height Range†: 24" - 36"
Warranty
Warranty
• 3 Years Parts
• 1 Year Labor
